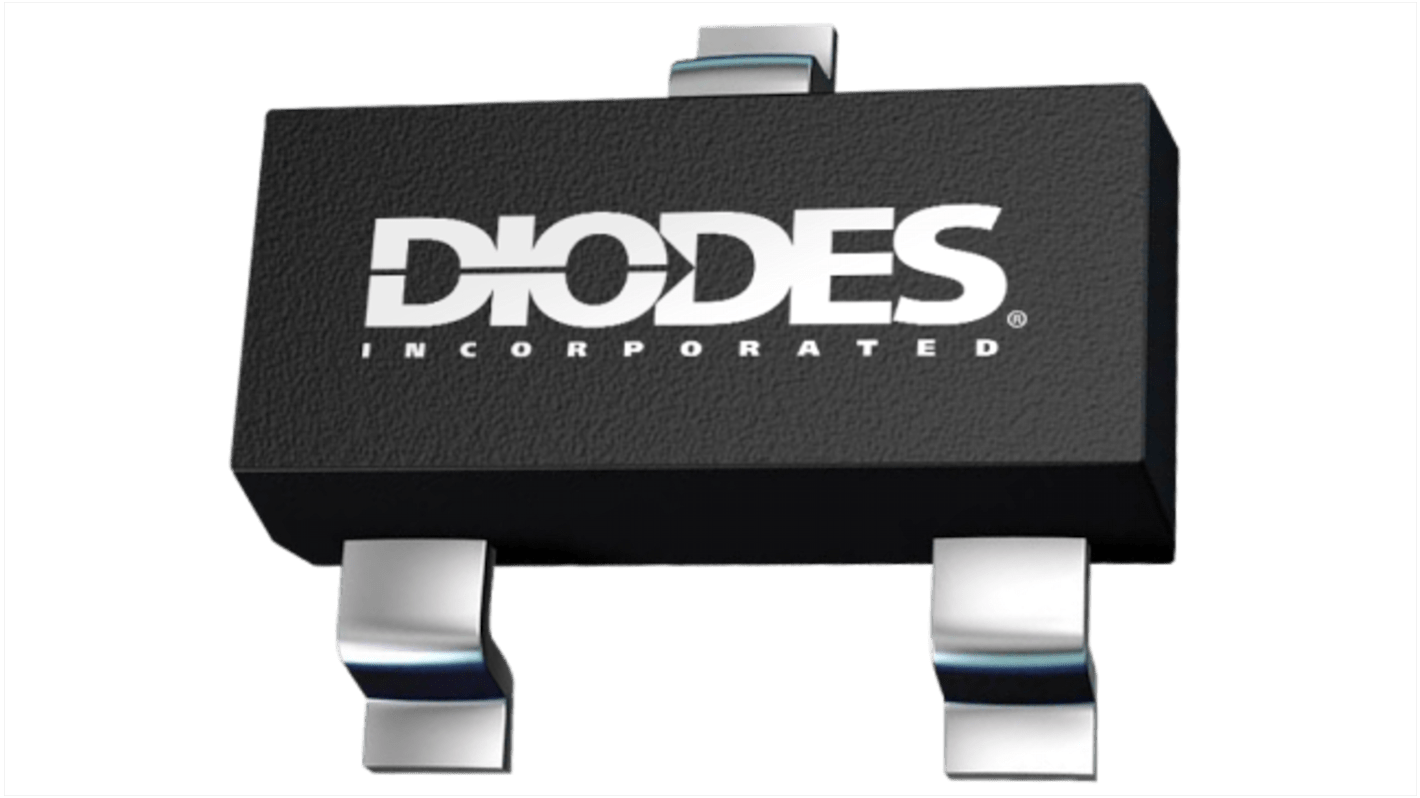

DiodesZetex 2-Element ESD Protection Diode, 330 W, 3-Pin SOT-23
- RS Stock No.:
- 246-7486P
- Mfr. Part No.:
- DESD3512SO-7
- Brand:
- DiodesZetex
Bulk discount available
Subtotal 50 units (supplied on a continuous strip)*
£7.50
(exc. VAT)
£9.00
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 2,625 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 50 - 75 | £0.15 |
| 100 - 225 | £0.096 |
| 250 - 975 | £0.094 |
| 1000 + | £0.05 |
*price indicative
- RS Stock No.:
- 246-7486P
- Mfr. Part No.:
- DESD3512SO-7
- Brand:
- DiodesZetex
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | DiodesZetex | |
| Product Type | ESD Protection Diode | |
| Minimum Breakdown Voltage Vbr | 13.6V | |
| Mount Type | Surface | |
| Package Type | SOT-23 | |
| Pin Count | 3 | |
| Peak Pulse Power Dissipation Pppm | 330W | |
| Minimum Operating Temperature | -55°C | |
| ESD Protection | Yes | |
| Maximum Peak Pulse Current Ippm | 11A | |
| Number of Elements per Chip | 2 | |
| Maximum Operating Temperature | 150°C | |
| Length | 2.9mm | |
| Height | 0.98mm | |
| Standards/Approvals | ISO, UL, EC 61000-4-2, RoHS | |
| Automotive Standard | AEC-Q101 | |
| Maximum Reverse Leakage Current | 500nA | |
| Select all | ||
|---|---|---|
Brand DiodesZetex | ||
Product Type ESD Protection Diode | ||
Minimum Breakdown Voltage Vbr 13.6V | ||
Mount Type Surface | ||
Package Type SOT-23 | ||
Pin Count 3 | ||
Peak Pulse Power Dissipation Pppm 330W | ||
Minimum Operating Temperature -55°C | ||
ESD Protection Yes | ||
Maximum Peak Pulse Current Ippm 11A | ||
Number of Elements per Chip 2 | ||
Maximum Operating Temperature 150°C | ||
Length 2.9mm | ||
Height 0.98mm | ||
Standards/Approvals ISO, UL, EC 61000-4-2, RoHS | ||
Automotive Standard AEC-Q101 | ||
Maximum Reverse Leakage Current 500nA | ||
The DiodesZetex makes a next generation ESD and surge protection device packaged in a small footprint surface mount package. It is designed to protect two data lines of the Controller Area Network (CAN) in an automotive application. It is ideal for CAN Bus protection and Industrial Control Network.
240W & 330W peak power dissipation per Line (8/20μs Waveform) 2 Channels of ESD protection Low channel input capacitance
