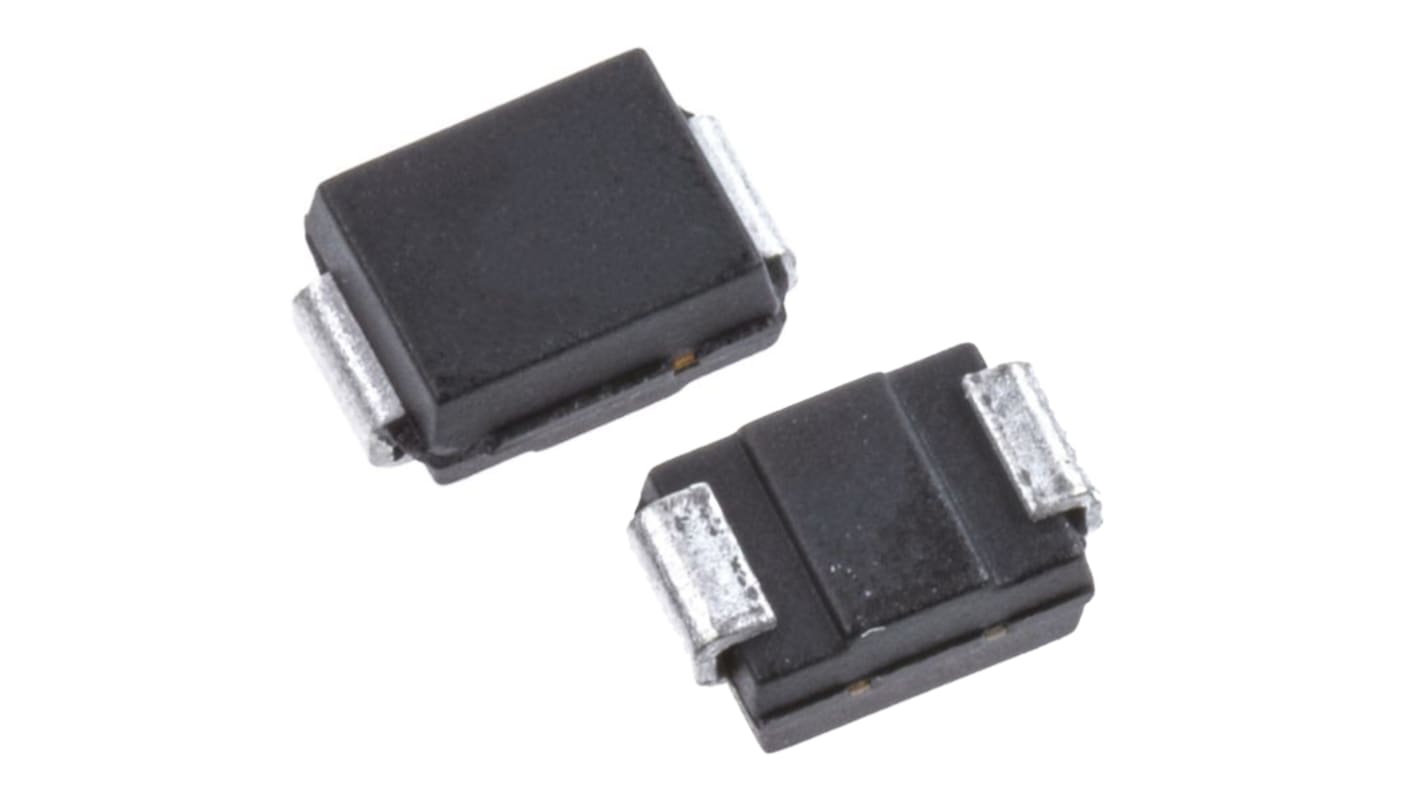

Diodes Inc SMBJ70CAQ-13-F, Bi-Directional TVS Diode, 600W, 2-Pin DO-214AA
- RS Stock No.:
- 213-9301P
- Mfr. Part No.:
- SMBJ70CAQ-13-F
- Brand:
- DiodesZetex
Bulk discount available
Subtotal 100 units (supplied on a continuous strip)*
£29.50
(exc. VAT)
£35.40
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 2,800 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 100 - 200 | £0.295 |
| 250 - 450 | £0.289 |
| 500 - 950 | £0.261 |
| 1000 + | £0.236 |
*price indicative
- RS Stock No.:
- 213-9301P
- Mfr. Part No.:
- SMBJ70CAQ-13-F
- Brand:
- DiodesZetex
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | DiodesZetex | |
| Diode Configuration | Single | |
| Direction Type | Bi-Directional | |
| Maximum Clamping Voltage | 113V | |
| Minimum Breakdown Voltage | 89.5V | |
| Mounting Type | Surface Mount | |
| Package Type | DO-214AA (SMB) | |
| Pin Count | 2 | |
| Peak Pulse Power Dissipation | 600W | |
| Number of Elements per Chip | 1 | |
Select all | ||
|---|---|---|
Brand DiodesZetex | ||
Diode Configuration Single | ||
Direction Type Bi-Directional | ||
Maximum Clamping Voltage 113V | ||
Minimum Breakdown Voltage 89.5V | ||
Mounting Type Surface Mount | ||
Package Type DO-214AA (SMB) | ||
Pin Count 2 | ||
Peak Pulse Power Dissipation 600W | ||
Number of Elements per Chip 1 | ||
The DiodesZetex SMBJ70CAQ series is automotive transient voltage suppressor suitable to protect sensitive automotive circuits against surges and electrostatic discharges. It has reverse standoff voltage of 70V and it is bidirectional device.
Glass passivated die construction
Excellent clamping capability
Excellent clamping capability
