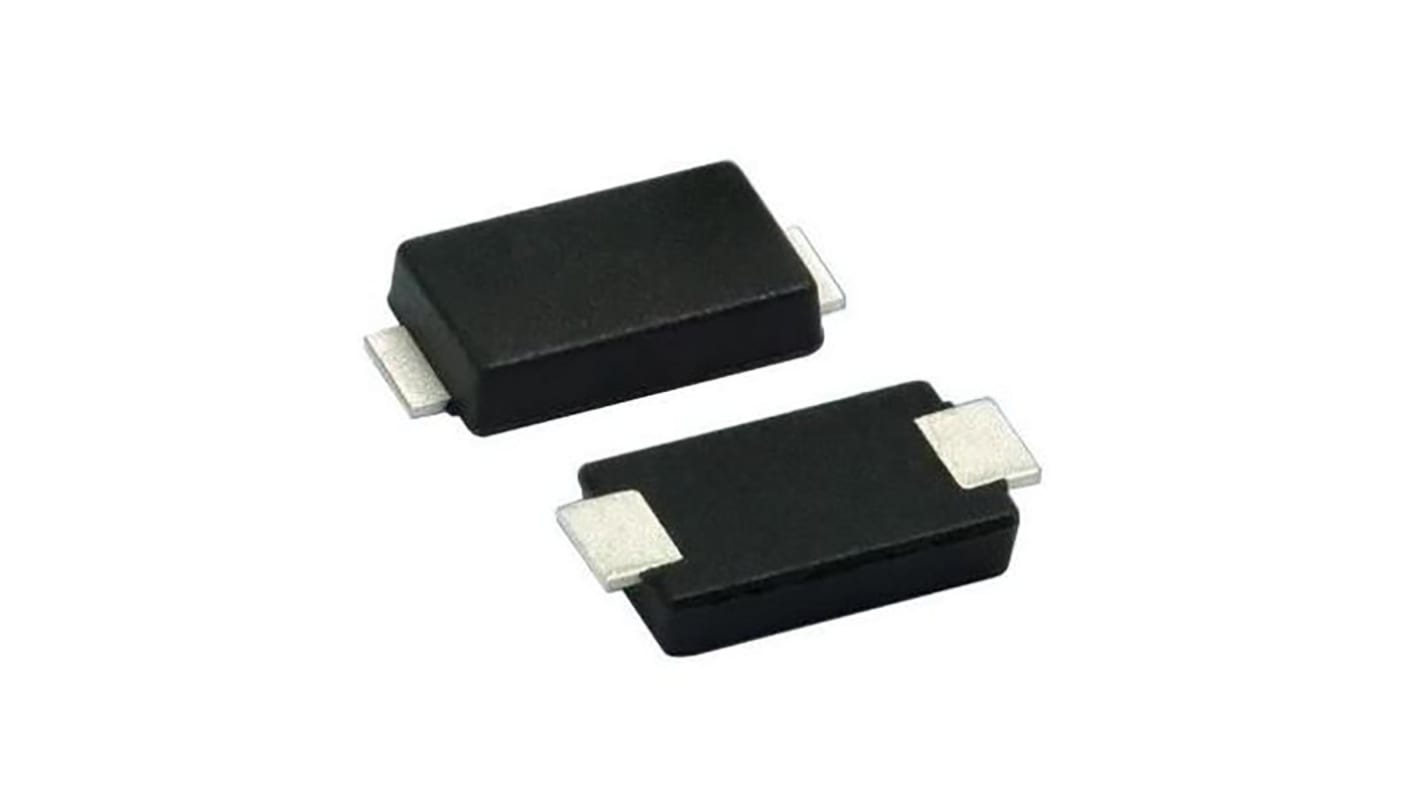

STMicroelectronics SMA6F40A, Uni-Directional TVS Diode, 600W, 2-Pin SMA Flat
- RS Stock No.:
- 208-5099
- Mfr. Part No.:
- SMA6F40A
- Brand:
- STMicroelectronics
Unavailable
RS will no longer stock this product.
- RS Stock No.:
- 208-5099
- Mfr. Part No.:
- SMA6F40A
- Brand:
- STMicroelectronics
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | STMicroelectronics | |
| Diode Configuration | Single | |
| Direction Type | Uni-Directional | |
| Maximum Clamping Voltage | 64.5V | |
| Minimum Breakdown Voltage | 49V | |
| Mounting Type | Surface Mount | |
| Package Type | SMA Flat | |
| Pin Count | 2 | |
| Peak Pulse Power Dissipation | 600W | |
| Number of Elements per Chip | 1 | |
Select all | ||
|---|---|---|
Brand STMicroelectronics | ||
Diode Configuration Single | ||
Direction Type Uni-Directional | ||
Maximum Clamping Voltage 64.5V | ||
Minimum Breakdown Voltage 49V | ||
Mounting Type Surface Mount | ||
Package Type SMA Flat | ||
Pin Count 2 | ||
Peak Pulse Power Dissipation 600W | ||
Number of Elements per Chip 1 | ||
The STMicroelectronics TVS diode is designed to protect sensitive circuits against transient surges. It works with planar technology which makes it compatible with high end circuits where low leakage current and high junction temperature are required to provide long term reliability and stability.
Matte tin plating lead finishing
175°C maximum operating temperature
Up to 600W power capability
175°C maximum operating temperature
Up to 600W power capability
