Discontinued product
- RS Stock No.:
- 171-3884
- Mfr. Part No.:
- SP3030-01ETG
- Brand:
- Littelfuse
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- CH
Product Details
The SP3030 includes low capacitance rail to rail diodes with an additional Zener diode to provide protection for electronic equipment that may experience destructive electrostatic discharges (ESD). These robust diodes can safely absorb repetitive ESD strikes without performance degradation. The low loading capacitance makes it ideal for protecting high speed data lines such as HDMI, DVI,USB2.0, USB3.0 and eSATA.
Low capacitance of 0.5pF @ VR=0V
Low leakage current of 0.1μA at 5V

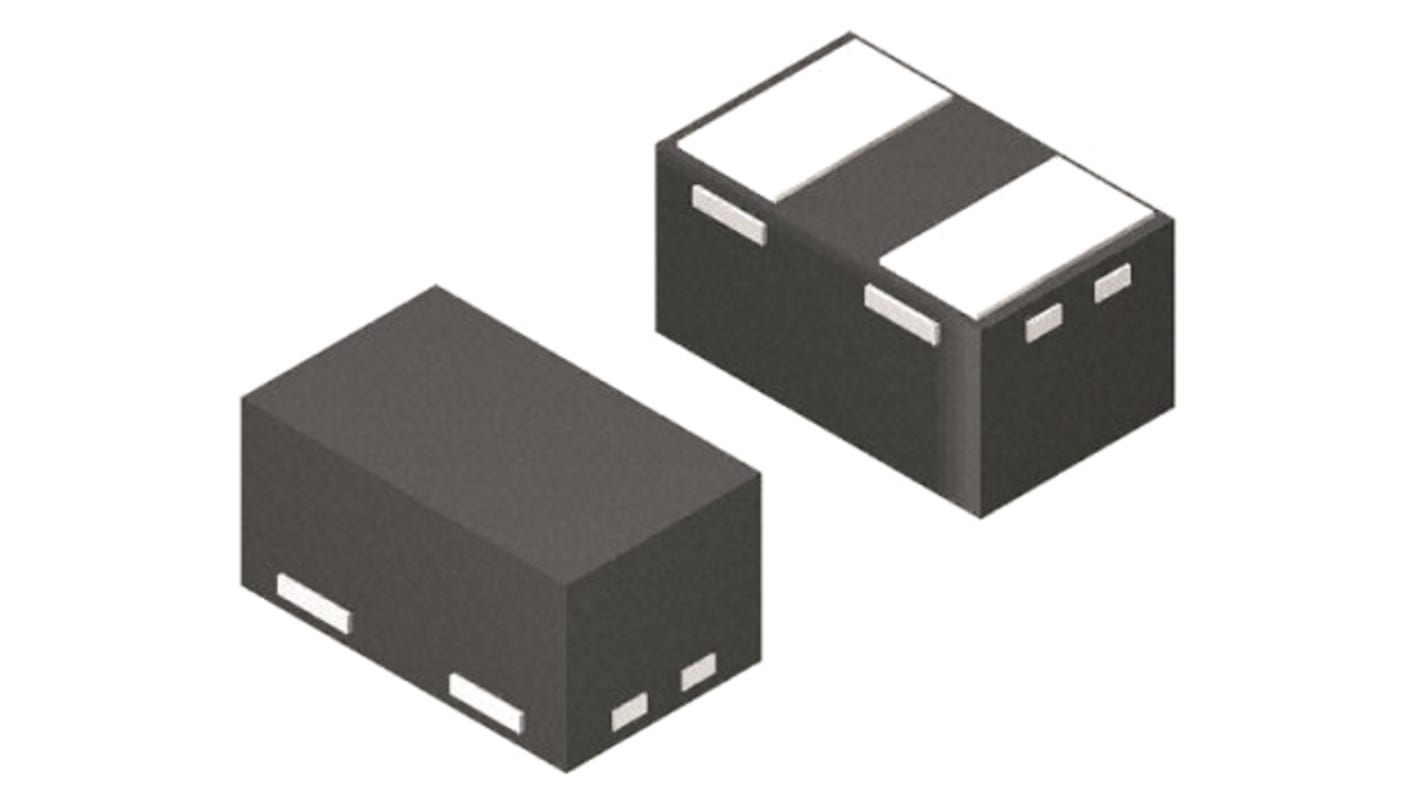

Small SOD882 packaging helps save board space
Applications
Tablets
Ultrabook
eReader
Smart Phones
Digital Cameras
MP3/ PMP
Set Top Boxes
Portable Medical
Low leakage current of 0.1μA at 5V
Small SOD882 packaging helps save board space
Applications
Tablets
Ultrabook
eReader
Smart Phones
Digital Cameras
MP3/ PMP
Set Top Boxes
Portable Medical
Specifications
Attribute | Value |
---|---|
Diode Configuration | Single |
Direction Type | Uni-Directional |
Maximum Clamping Voltage | 10V |
Mounting Type | Surface Mount |
Package Type | SOD-882 |
Maximum Reverse Stand-off Voltage | 5V |
Pin Count | 2 |
Maximum Peak Pulse Current | 3A |
ESD Protection | Yes |
Number of Elements per Chip | 1 |
Minimum Operating Temperature | -40 °C |
Maximum Operating Temperature | +125 °C |
Dimensions | 1.1 x 0.7 x 0.6mm |
Maximum Reverse Leakage Current | 500nA |
Width | 0.7mm |
Height | 0.6mm |
Length | 1.1mm |
Automotive Standard | AEC-Q101 |
Capacitance | 0.5pF |
