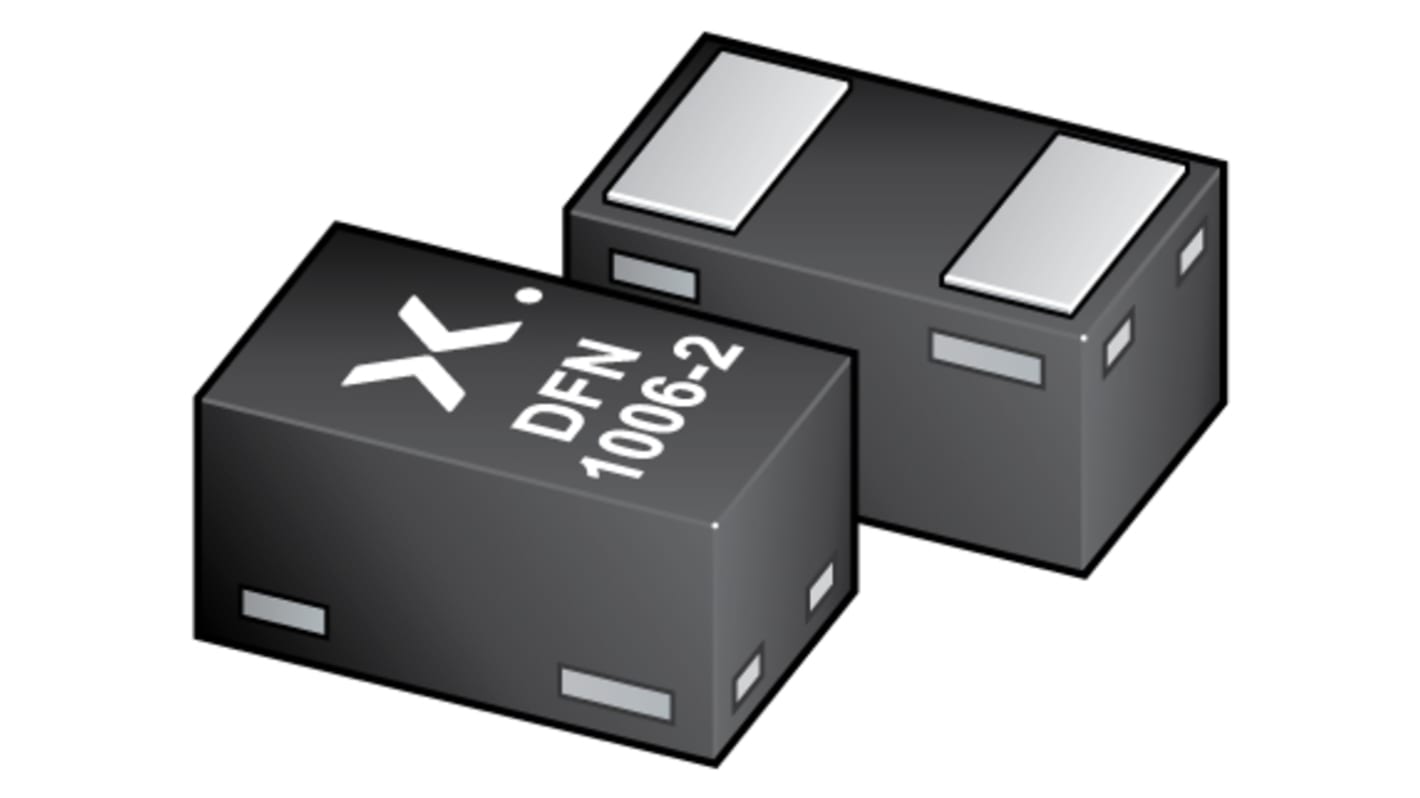

Nexperia PESD5V0X1BCAL,315, Dual-Element Bi-Directional ESD Protection Diode, 2-Pin DFN1006, SOD-882
- RS Stock No.:
- 153-2973P
- Mfr. Part No.:
- PESD5V0X1BCAL,315
- Brand:
- Nexperia
Subtotal 25 units (supplied on a continuous strip)*
£2.10
(exc. VAT)
£2.525
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 825 unit(s) ready to ship
- Plus 999,999,150 unit(s) shipping from 18 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 25 + | £0.084 |
*price indicative
- RS Stock No.:
- 153-2973P
- Mfr. Part No.:
- PESD5V0X1BCAL,315
- Brand:
- Nexperia
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Nexperia | |
| Diode Configuration | Dual | |
| Direction Type | Bi-Directional | |
| Maximum Clamping Voltage | 17V | |
| Minimum Breakdown Voltage | 8.1V | |
| Mounting Type | Surface Mount | |
| Package Type | DFN1006, SOD-882 | |
| Maximum Reverse Stand-off Voltage | 5.5V | |
| Pin Count | 2 | |
| Maximum Peak Pulse Current | 1.8A | |
| ESD Protection | Yes | |
| Number of Elements per Chip | 2 | |
| Minimum Operating Temperature | -55 °C | |
| Dimensions | 1.02 x 0.62 x 0.47mm | |
| Maximum Operating Temperature | +150 °C | |
| Width | 0.62mm | |
| Height | 0.47mm | |
| ESD Voltage | 15kV | |
| Maximum Reverse Leakage Current | 10nA | |
| Length | 1.02mm | |
| Capacitance | 0.95pF | |
| Automotive Standard | AEC-Q101 | |
Select all | ||
|---|---|---|
Brand Nexperia | ||
Diode Configuration Dual | ||
Direction Type Bi-Directional | ||
Maximum Clamping Voltage 17V | ||
Minimum Breakdown Voltage 8.1V | ||
Mounting Type Surface Mount | ||
Package Type DFN1006, SOD-882 | ||
Maximum Reverse Stand-off Voltage 5.5V | ||
Pin Count 2 | ||
Maximum Peak Pulse Current 1.8A | ||
ESD Protection Yes | ||
Number of Elements per Chip 2 | ||
Minimum Operating Temperature -55 °C | ||
Dimensions 1.02 x 0.62 x 0.47mm | ||
Maximum Operating Temperature +150 °C | ||
Width 0.62mm | ||
Height 0.47mm | ||
ESD Voltage 15kV | ||
Maximum Reverse Leakage Current 10nA | ||
Length 1.02mm | ||
Capacitance 0.95pF | ||
Automotive Standard AEC-Q101 | ||
Extremely low capacitance bidirectional ESD protection diode, Extremely low capacitance bidirectional ElectroStatic Discharge (ESD) protection diode in a leadless ultra small SOD882 Surface-Mounted Device (SMD) plastic package designed to protect one signal line from the damage caused by ESD and other transients. The combination of extremely low capacitance, high ESD maximum rating and ultra small package makes the device ideal for high-speed data line protection.
Bidirectional ESD protection of one line
Extremely low capacitance:
Cd = 0.85 pF
Low clamping voltage: VCL = 17 V
Ultra low leakage current: IRM = 1 nA
ESD protection up to 15 kV
IEC 61000-4-2, level 4 (ESD)
AEC-Q101 qualified
Computers and peripherals
Audio and video equipment
10/100/1000 Mbit/s Ethernet
Communication systems
Portable electronics
SIM card protection
USB, High-Definition Multimedia Interface (HDMI), FireWire
Extremely low capacitance:
Cd = 0.85 pF
Low clamping voltage: VCL = 17 V
Ultra low leakage current: IRM = 1 nA
ESD protection up to 15 kV
IEC 61000-4-2, level 4 (ESD)
AEC-Q101 qualified
Computers and peripherals
Audio and video equipment
10/100/1000 Mbit/s Ethernet
Communication systems
Portable electronics
SIM card protection
USB, High-Definition Multimedia Interface (HDMI), FireWire
