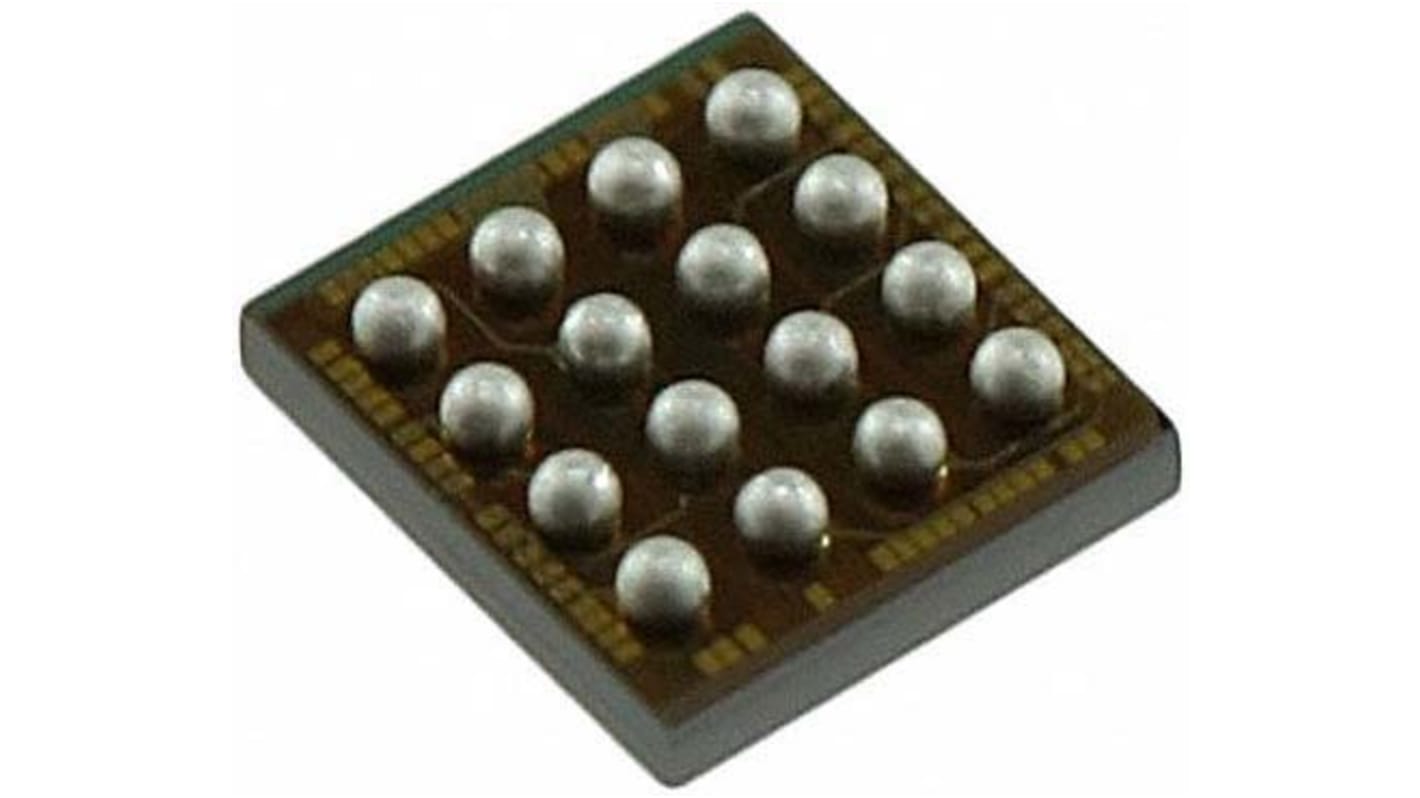

STMicroelectronics EMIF06-USD14F3 , EMI Filter & ESD Protector, 15-Pin Flip-Chip
- RS Stock No.:
- 110-6565
- Mfr. Part No.:
- EMIF06-USD14F3
- Brand:
- STMicroelectronics
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 110-6565
- Mfr. Part No.:
- EMIF06-USD14F3
- Brand:
- STMicroelectronics
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | STMicroelectronics | |
| Minimum Breakdown Voltage | 14V | |
| Mounting Type | Surface Mount | |
| Package Type | Flip-Chip | |
| Maximum Reverse Stand-off Voltage | 3V | |
| Pin Count | 15 | |
| ESD Protection | Yes | |
| Minimum Operating Temperature | -30 °C | |
| Maximum Operating Temperature | +85 °C | |
| Maximum Reverse Leakage Current | 100nA | |
| Capacitance | 12pF | |
| Width | 1.54mm | |
| Length | 1.54mm | |
| Test Current | 1mA | |
Select all | ||
|---|---|---|
Brand STMicroelectronics | ||
Minimum Breakdown Voltage 14V | ||
Mounting Type Surface Mount | ||
Package Type Flip-Chip | ||
Maximum Reverse Stand-off Voltage 3V | ||
Pin Count 15 | ||
ESD Protection Yes | ||
Minimum Operating Temperature -30 °C | ||
Maximum Operating Temperature +85 °C | ||
Maximum Reverse Leakage Current 100nA | ||
Capacitance 12pF | ||
Width 1.54mm | ||
Length 1.54mm | ||
Test Current 1mA | ||
Integrated EMI Filter and ESD protection, EMIF Series for IPAD™ Devices, STMicroelectronics
High cut-off frequency low-pass filter 400MHz
High efficiency in EMI filtering
Multimedia applications in HDMI, USB or serial interfaces for microphones, mobile phone cameras, LCD displays, memory cards, etc.
High efficiency in EMI filtering
Multimedia applications in HDMI, USB or serial interfaces for microphones, mobile phone cameras, LCD displays, memory cards, etc.
Transient Voltage Suppressors, STMicroelectronics
