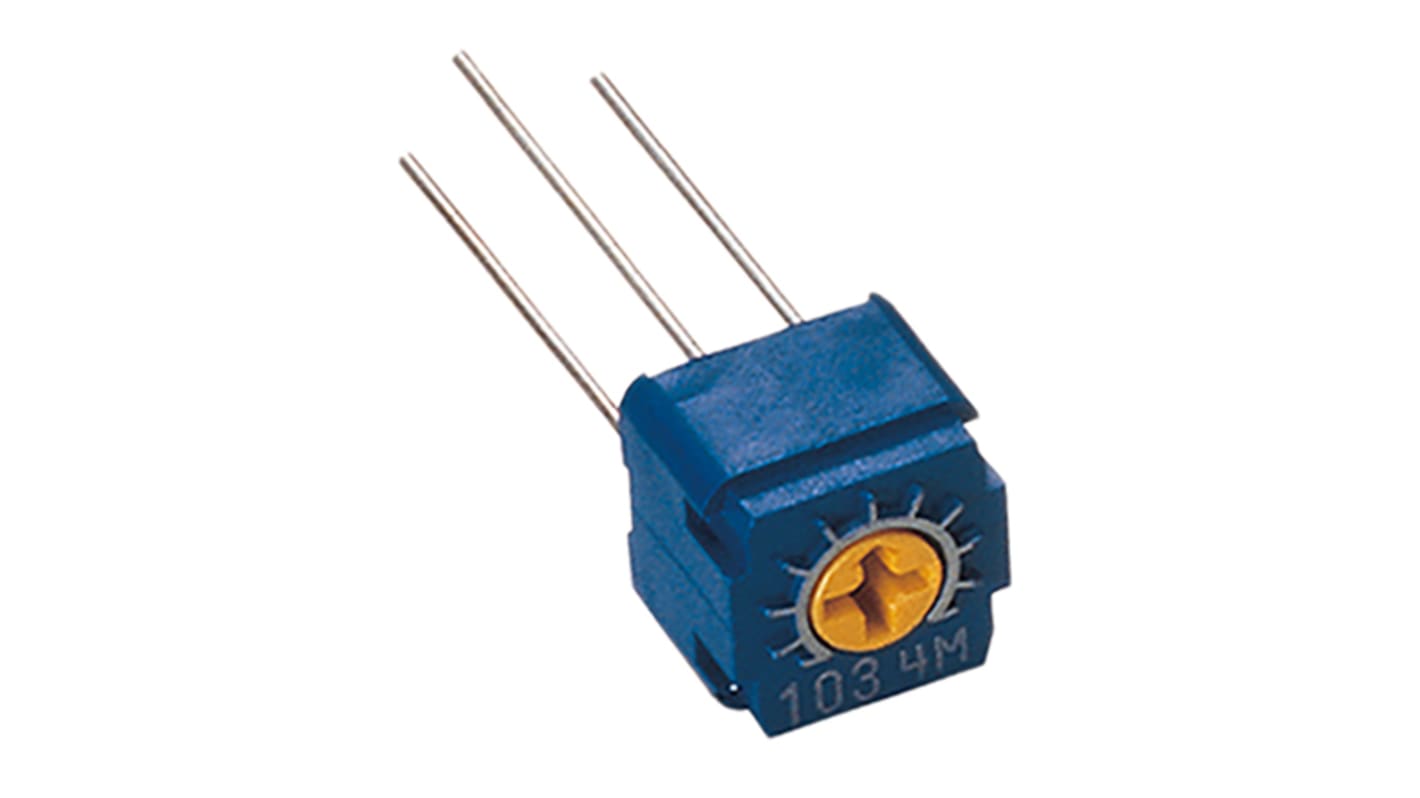

2 kΩ, Through Hole Trimmer Potentiometer, Solder Pin 0.5 W Top Adjust Nidec Components, CT6
- RS Stock No.:
- 896-7162
- Mfr. Part No.:
- CT-6EV 2kR
- Brand:
- Nidec Components
Temporarily out of stock
- RS Stock No.:
- 896-7162
- Mfr. Part No.:
- CT-6EV 2kR
- Brand:
- Nidec Components
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Nidec Components | |
| Product Type | Trimmer Potentiometer | |
| Maximum Resistance | 2kΩ | |
| Mount Type | Through Hole | |
| Number of Turns | 1 | |
| Packaging | Bag | |
| Orientation | Top Adjust | |
| Power Rating | 0.5W | |
| Series | CT6 | |
| Automotive Standard | No | |
| Termination Style | Solder Pin | |
| Tolerance ± | 10% | |
| Temperature Coefficient | ±100 ppm/°C | |
| Minimum Operating Temperature | -55°C | |
| Pin Count | 3 | |
| Maximum Voltage | 31.6V | |
| Maximum Operating Temperature | 120°C | |
| Length | 7mm | |
| Standards/Approvals | RoHS | |
| Height | 5.8mm | |
| Mechanical Rotation | 260° | |
| Element Material | Cermet | |
| Select all | ||
|---|---|---|
Brand Nidec Components | ||
Product Type Trimmer Potentiometer | ||
Maximum Resistance 2kΩ | ||
Mount Type Through Hole | ||
Number of Turns 1 | ||
Packaging Bag | ||
Orientation Top Adjust | ||
Power Rating 0.5W | ||
Series CT6 | ||
Automotive Standard No | ||
Termination Style Solder Pin | ||
Tolerance ± 10% | ||
Temperature Coefficient ±100 ppm/°C | ||
Minimum Operating Temperature -55°C | ||
Pin Count 3 | ||
Maximum Voltage 31.6V | ||
Maximum Operating Temperature 120°C | ||
Length 7mm | ||
Standards/Approvals RoHS | ||
Height 5.8mm | ||
Mechanical Rotation 260° | ||
Element Material Cermet | ||
- COO (Country of Origin):
- CN
Copal CT-6 Series
Professional range of Copal side adjustable cermet trimmers from the CT-6 series. The trimmers incorporate a silicon rubber ’O’ ring and a Copper, Tin-plated terminal pin.
Silicone rubber 'O' ring
Copper, Tin-plated terminal pin
