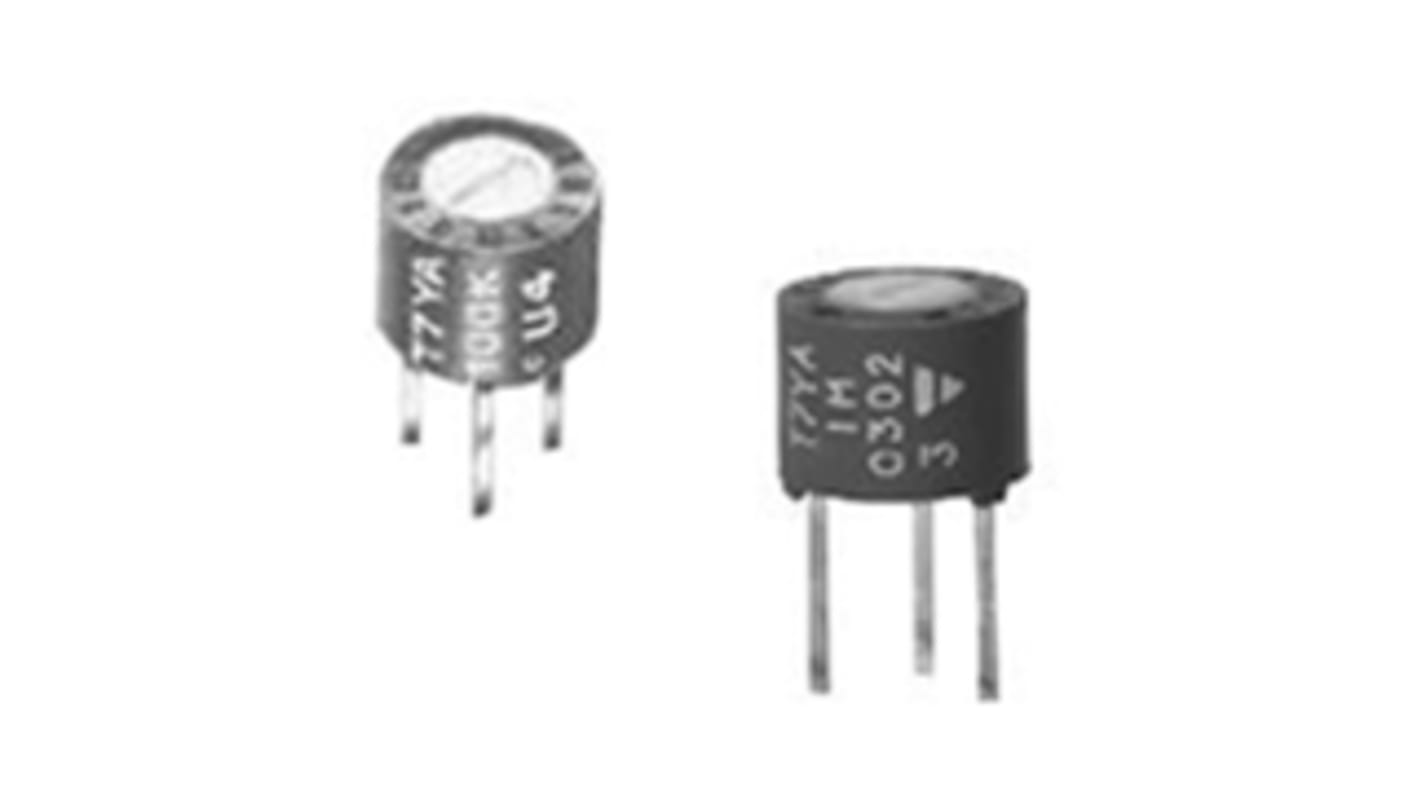

200Ω, Through Hole Trimmer Potentiometer 0.5W Top Adjust Vishay, T7
- RS Stock No.:
- 850-9687
- Mfr. Part No.:
- T7YA201KT20
- Brand:
- Vishay
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 850-9687
- Mfr. Part No.:
- T7YA201KT20
- Brand:
- Vishay
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Vishay | |
| Maximum Resistance | 200Ω | |
| Mounting Type | Through Hole | |
| Orientation | Top Adjust | |
| Power Rating | 0.5W | |
| Series | T7 | |
| Termination Style | PC Pin | |
| Tolerance | ±10% | |
| Temperature Coefficient | ±100ppm/K | |
| Shaft Diameter | 4.1 mm | |
| Diameter | 7mm | |
| Minimum Operating Temperature | -55°C | |
| Mechanical Rotation | 300° | |
| Maximum Operating Temperature | +125°C | |
| Element Material | Cermet | |
Select all | ||
|---|---|---|
Brand Vishay | ||
Maximum Resistance 200Ω | ||
Mounting Type Through Hole | ||
Orientation Top Adjust | ||
Power Rating 0.5W | ||
Series T7 | ||
Termination Style PC Pin | ||
Tolerance ±10% | ||
Temperature Coefficient ±100ppm/K | ||
Shaft Diameter 4.1 mm | ||
Diameter 7mm | ||
Minimum Operating Temperature -55°C | ||
Mechanical Rotation 300° | ||
Maximum Operating Temperature +125°C | ||
Element Material Cermet | ||
- COO (Country of Origin):
- US
Cermet T7YA Series
Industrial Grade
CECC 41100
Low temperature coefficient and high stability
Clear scale reading for ease of adjustment
IP64 - sealed for dust and PC boards cleaning (not water)
CECC 41100
Low temperature coefficient and high stability
Clear scale reading for ease of adjustment
IP64 - sealed for dust and PC boards cleaning (not water)
