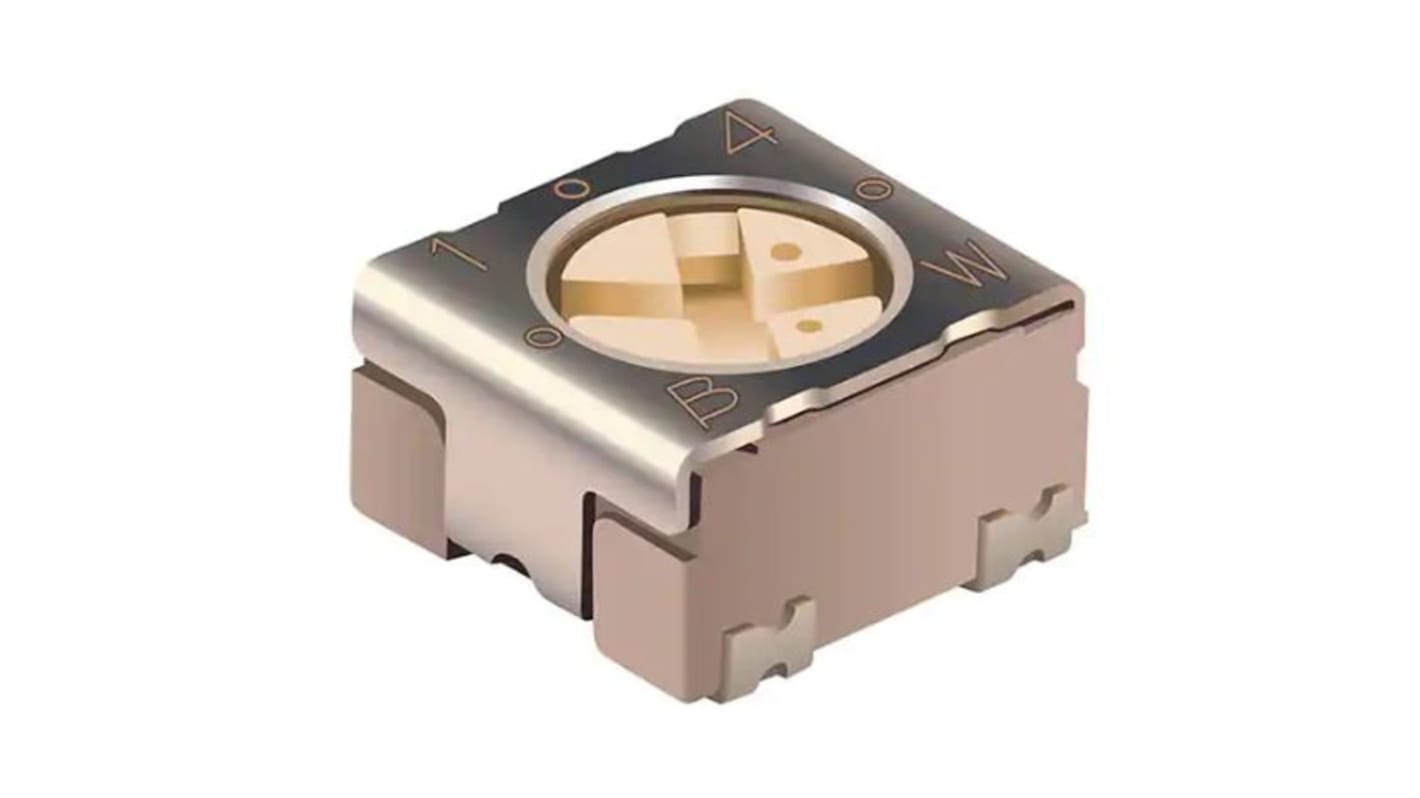

1 kΩ, Surface Trimmer Potentiometer, Soldering connection 0.25 W Top Adjust Bourns, PVG3
- RS Stock No.:
- 246-3266
- Distrelec Article No.:
- 302-86-068
- Mfr. Part No.:
- PVG3A102C01R00
- Brand:
- Bourns
Bulk discount available
View bulk pricing optionsSubtotal (1 unit)*
£0.93
(exc. VAT)
£1.12
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- 999 unit(s) shipping from 30 November 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 19 | £0.93 |
| 20 - 49 | £0.78 |
| 50 - 99 | £0.63 |
| 100 - 499 | £0.46 |
| 500 + | £0.43 |
*price indicative
- RS Stock No.:
- 246-3266
- Distrelec Article No.:
- 302-86-068
- Mfr. Part No.:
- PVG3A102C01R00
- Brand:
- Bourns
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Bourns | |
| Maximum Resistance | 1kΩ | |
| Product Type | Trimmer Potentiometer | |
| Mount Type | Surface | |
| Number of Turns | 1 | |
| Packaging | Tape & Reel | |
| Orientation | Top Adjust | |
| Power Rating | 0.25W | |
| Series | PVG3 | |
| Automotive Standard | No | |
| Termination Style | Soldering connection | |
| Tolerance ± | 20% | |
| Temperature Coefficient | ±150 ppm/°C | |
| Pin Count | 3 | |
| Minimum Operating Temperature | -55°C | |
| Length | 3.6mm | |
| Maximum Operating Temperature | 125°C | |
| Standards/Approvals | RoHS | |
| Depth | 2mm | |
| Height | 3.4mm | |
| Element Material | Cermet | |
| Mechanical Rotation | 250Cycles | |
| Select all | ||
|---|---|---|
Brand Bourns | ||
Maximum Resistance 1kΩ | ||
Product Type Trimmer Potentiometer | ||
Mount Type Surface | ||
Number of Turns 1 | ||
Packaging Tape & Reel | ||
Orientation Top Adjust | ||
Power Rating 0.25W | ||
Series PVG3 | ||
Automotive Standard No | ||
Termination Style Soldering connection | ||
Tolerance ± 20% | ||
Temperature Coefficient ±150 ppm/°C | ||
Pin Count 3 | ||
Minimum Operating Temperature -55°C | ||
Length 3.6mm | ||
Maximum Operating Temperature 125°C | ||
Standards/Approvals RoHS | ||
Depth 2mm | ||
Height 3.4mm | ||
Element Material Cermet | ||
Mechanical Rotation 250Cycles | ||
- COO (Country of Origin):
- TW
The Bourns trimmer potentiometer mainly which is surface mount type and has single turn. It has metal cover for thermal protection and heat transfer.
Available in J-hook
RoHS compliant
No bubbles
