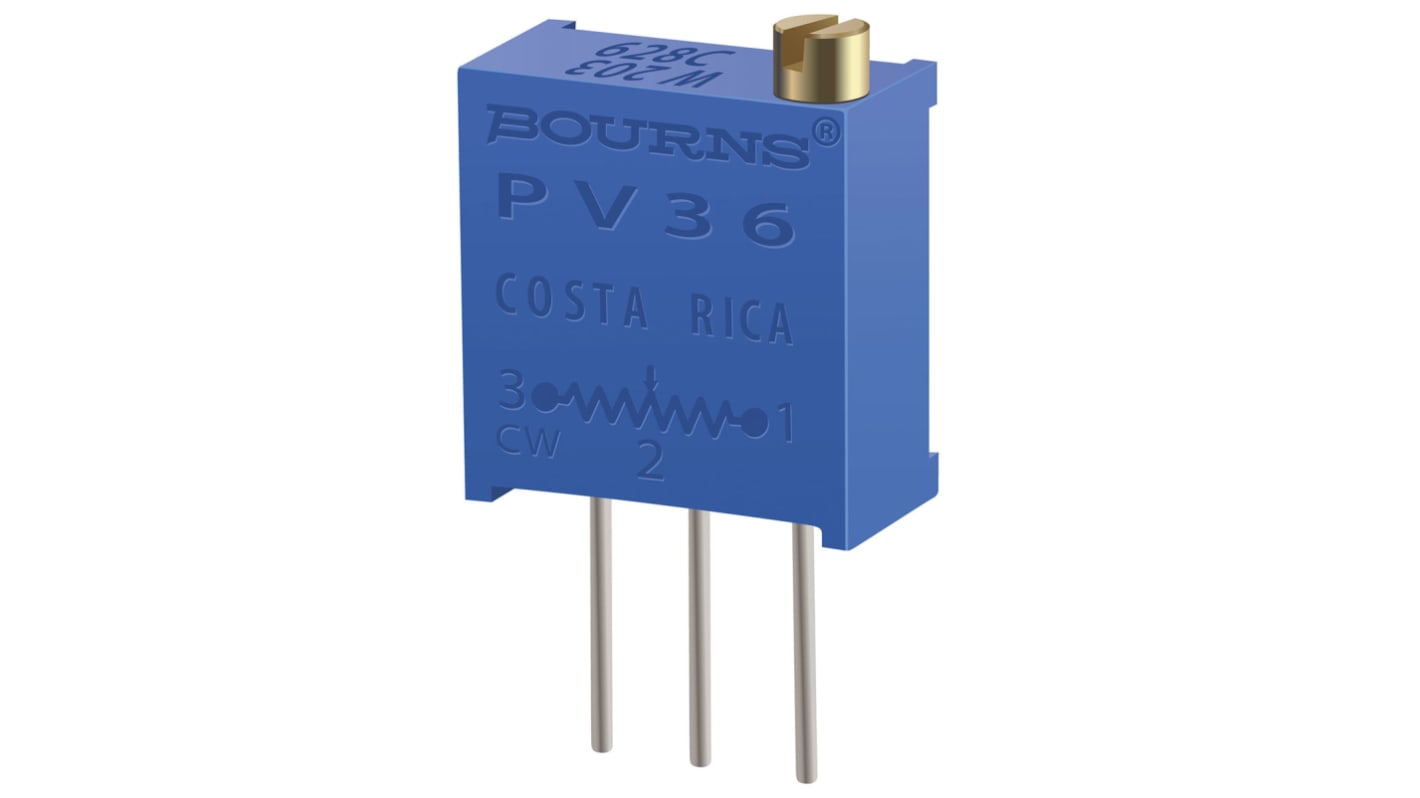

5kΩ, Through Hole Trimmer Potentiometer 0.5W Side Adjust Bourns, PV36
- RS Stock No.:
- 181-4431
- Mfr. Part No.:
- PV36X502C01B00
- Brand:
- Bourns
300 In stock - FREE next working day delivery available
Added
Price Each (In a Tube of 50)
£1.142
(exc. VAT)
£1.37
(inc. VAT)
| Units | Per unit | Per Tube* |
| 50 - 50 | £1.142 | £57.10 |
| 100 - 200 | £1.11 | £55.50 |
| 250 - 450 | £1.08 | £54.00 |
| 500 - 700 | £1.052 | £52.60 |
| 750 + | £1.025 | £51.25 |
| *price indicative | ||
- RS Stock No.:
- 181-4431
- Mfr. Part No.:
- PV36X502C01B00
- Brand:
- Bourns
Technical Reference
Legislation and Compliance
Product Details
Multiturn / Cermet / Sealed
Available in both top and side adjustment
Units can be pre-adjusted at clockwise, counter-clockwise or standard 50 % position
Standoffs allow thorough PC board washing
Chevron seal design
For trimmer applications/processing guidelines.
Available in both top and side adjustment
Units can be pre-adjusted at clockwise, counter-clockwise or standard 50 % position
Standoffs allow thorough PC board washing
Chevron seal design
For trimmer applications/processing guidelines.
Specifications
Attribute | Value |
|---|---|
| Maximum Resistance | 5kΩ |
| Mounting Type | Through Hole |
| Number of Turns | 25 |
| Orientation | Side Adjust |
| Power Rating | 0.5W |
| Series | PV36 |
| Termination Style | PC Pin |
| Tolerance | ±10% |
| Temperature Coefficient | ±100ppm/°C |
| Length | 9.53mm |
| Minimum Operating Temperature | -55°C |
| Maximum Operating Temperature | +125°C |
| Element Material | Cermet |
