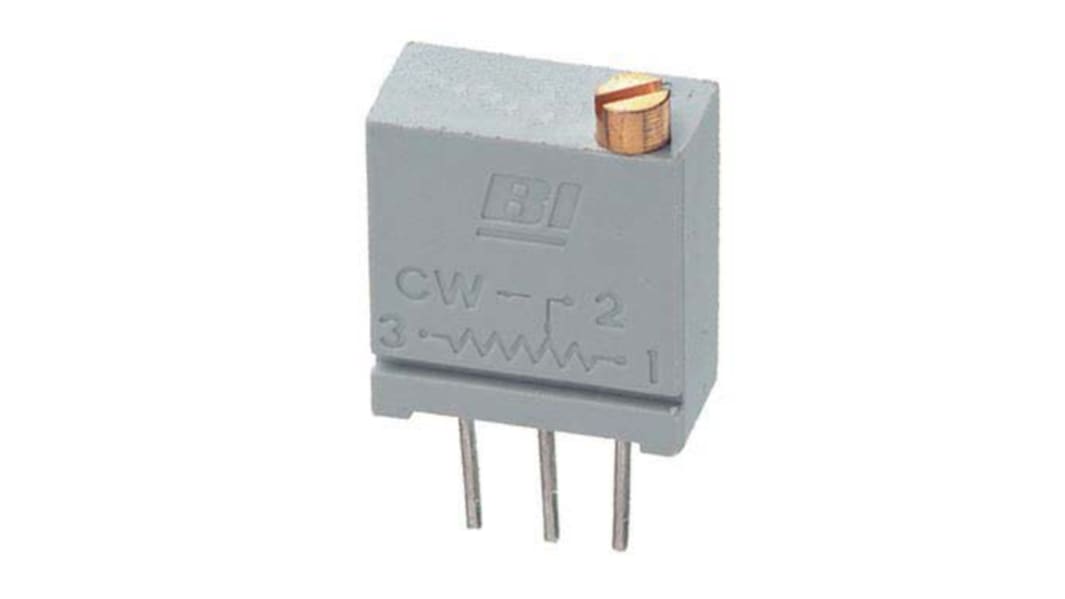

20 kΩ, Through Hole Trimmer Potentiometer, Solder Pin 0.5 W Top Adjust TT Electronics/BI, 67
- RS Stock No.:
- 144-2222
- Mfr. Part No.:
- 67WR20KLF
- Brand:
- TT Electronics/BI
Get a bulk buy discount
Add 25 more to save 20%
View bulk pricing optionsSubtotal (1 pack of 5 units)*
£8.77
(exc. VAT)
£10.53
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 90 unit(s) ready to ship
- Plus 450 unit(s) shipping from 17 November 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* | Saving |
|---|---|---|---|
| 5 - 20 | £1.754 | £8.77 | - |
| 25 + | £1.402 | £7.01 | 20% |
*price indicative
- RS Stock No.:
- 144-2222
- Mfr. Part No.:
- 67WR20KLF
- Brand:
- TT Electronics/BI
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TT Electronics/BI | |
| Maximum Resistance | 20kΩ | |
| Product Type | Trimmer Potentiometer | |
| Mount Type | Through Hole | |
| Number of Turns | 20 | |
| Orientation | Top Adjust | |
| Packaging | Box | |
| Power Rating | 0.5W | |
| Series | 67 | |
| Termination Style | Solder Pin | |
| Automotive Standard | No | |
| Tolerance ± | 10% | |
| Temperature Coefficient | ±100 ppm/°C | |
| Pin Count | 3 | |
| Minimum Operating Temperature | -55°C | |
| Maximum Voltage | 200V dc | |
| Length | 9.53mm | |
| Maximum Operating Temperature | 125°C | |
| Standards/Approvals | No | |
| Height | 10.4mm | |
| Mechanical Rotation | 20Cycles | |
| Element Material | Cermet | |
| Select all | ||
|---|---|---|
Brand TT Electronics/BI | ||
Maximum Resistance 20kΩ | ||
Product Type Trimmer Potentiometer | ||
Mount Type Through Hole | ||
Number of Turns 20 | ||
Orientation Top Adjust | ||
Packaging Box | ||
Power Rating 0.5W | ||
Series 67 | ||
Termination Style Solder Pin | ||
Automotive Standard No | ||
Tolerance ± 10% | ||
Temperature Coefficient ±100 ppm/°C | ||
Pin Count 3 | ||
Minimum Operating Temperature -55°C | ||
Maximum Voltage 200V dc | ||
Length 9.53mm | ||
Maximum Operating Temperature 125°C | ||
Standards/Approvals No | ||
Height 10.4mm | ||
Mechanical Rotation 20Cycles | ||
Element Material Cermet | ||
- COO (Country of Origin):
- MX
Multiturn
Sealed to be compatible with aqueous PCB cleaning process
Highly reliable
Long life
Suitable for applications requiring adjustability or calibration including medical and consumer electronics
