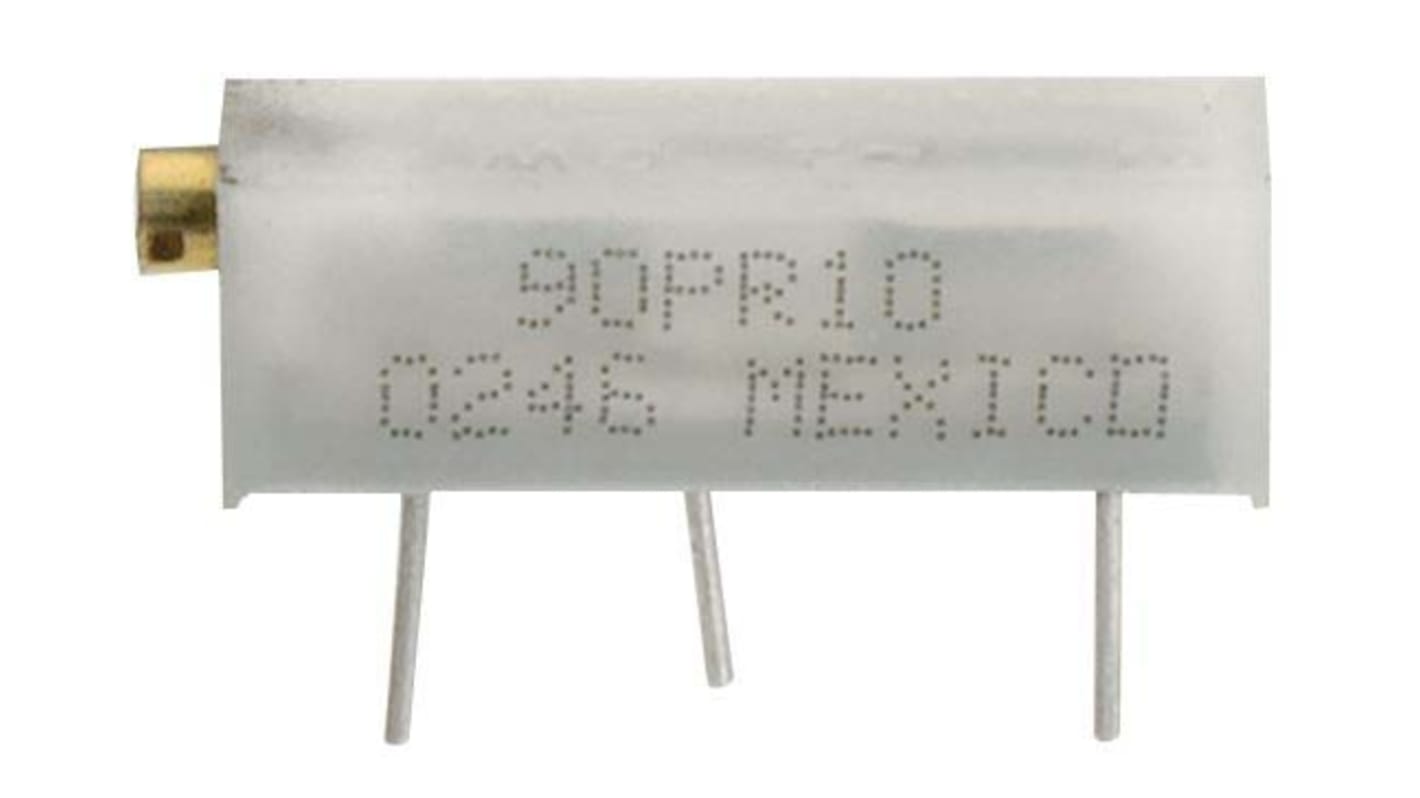

1 kΩ, Through Hole Trimmer Potentiometer, Solder Pin 0.75 W Side Adjust TT Electronics/BI, 90
- RS Stock No.:
- 144-2212
- Mfr. Part No.:
- 90PR1KLFTB
- Brand:
- TT Electronics/BI
Bulk discount available
View bulk pricing optionsSubtotal (1 pack of 5 units)*
£12.37
(exc. VAT)
£14.84
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- 355 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 5 - 10 | £2.474 | £12.37 |
| 15 + | £1.97 | £9.85 |
*price indicative
- RS Stock No.:
- 144-2212
- Mfr. Part No.:
- 90PR1KLFTB
- Brand:
- TT Electronics/BI
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TT Electronics/BI | |
| Maximum Resistance | 1kΩ | |
| Product Type | Trimmer Potentiometer | |
| Mount Type | Through Hole | |
| Number of Turns | 20 | |
| Packaging | Box | |
| Orientation | Side Adjust | |
| Power Rating | 0.75W | |
| Series | 90 | |
| Automotive Standard | No | |
| Termination Style | Solder Pin | |
| Tolerance ± | 10% | |
| Temperature Coefficient | ±100 ppm/°C | |
| Pin Count | 3 | |
| Minimum Operating Temperature | -55°C | |
| Maximum Operating Temperature | 125°C | |
| Maximum Voltage | 200V dc | |
| Shaft Diameter | 2.36mm | |
| Length | 19.05mm | |
| Standards/Approvals | No | |
| Mechanical Rotation | 200Cycles | |
| Element Material | Cermet | |
| Select all | ||
|---|---|---|
Brand TT Electronics/BI | ||
Maximum Resistance 1kΩ | ||
Product Type Trimmer Potentiometer | ||
Mount Type Through Hole | ||
Number of Turns 20 | ||
Packaging Box | ||
Orientation Side Adjust | ||
Power Rating 0.75W | ||
Series 90 | ||
Automotive Standard No | ||
Termination Style Solder Pin | ||
Tolerance ± 10% | ||
Temperature Coefficient ±100 ppm/°C | ||
Pin Count 3 | ||
Minimum Operating Temperature -55°C | ||
Maximum Operating Temperature 125°C | ||
Maximum Voltage 200V dc | ||
Shaft Diameter 2.36mm | ||
Length 19.05mm | ||
Standards/Approvals No | ||
Mechanical Rotation 200Cycles | ||
Element Material Cermet | ||
- COO (Country of Origin):
- MX
Surface mount
Cermet
