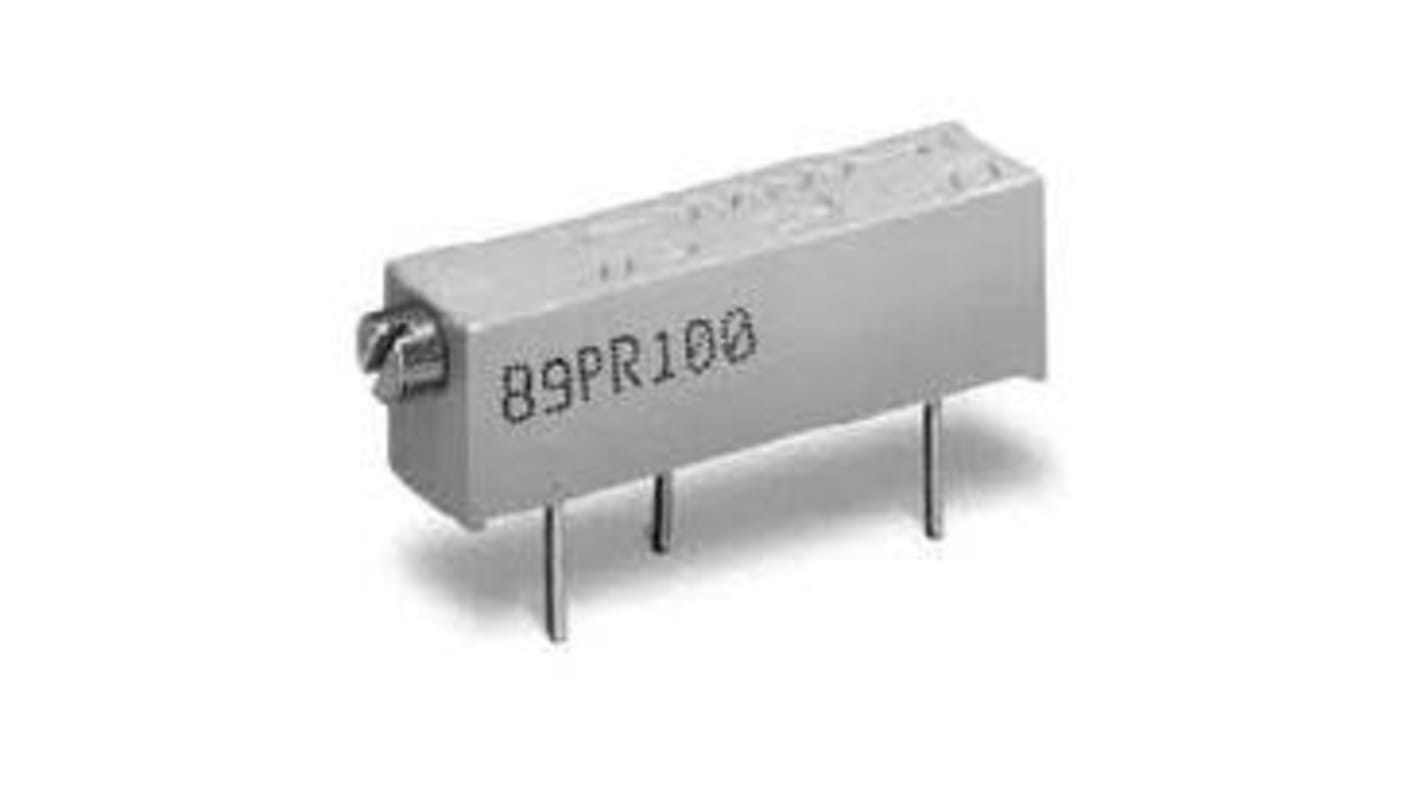

20kΩ, Through Hole Trimmer Potentiometer 0.75W Side Adjust TT ElectronicsBI, 89
- RS Stock No.:
- 144-2098
- Mfr. Part No.:
- 89PR20KLFTB
- Brand:
- TT Electronics/BI
Bulk discount available
Subtotal (1 tube of 25 units)*
£36.80
(exc. VAT)
£44.15
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 375 unit(s) ready to ship
- Plus 1,225 unit(s) shipping from 31 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Tube* |
|---|---|---|
| 25 - 75 | £1.472 | £36.80 |
| 100 - 225 | £1.369 | £34.23 |
| 250 - 475 | £1.252 | £31.30 |
| 500 + | £1.163 | £29.08 |
*price indicative
- RS Stock No.:
- 144-2098
- Mfr. Part No.:
- 89PR20KLFTB
- Brand:
- TT Electronics/BI
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TT Electronics/BI | |
| Maximum Resistance | 20kΩ | |
| Mounting Type | Through Hole | |
| Number of Turns | 20 | |
| Orientation | Side Adjust | |
| Power Rating | 0.75W | |
| Series | 89 | |
| Termination Style | Solder Pin | |
| Tolerance | ±10% | |
| Temperature Coefficient | ±100ppm/°C | |
| Maximum Voltage Rating | 200 V dc | |
| Shaft Diameter | 2.36 (Metal Adjustment Screw) mm | |
| Length | 19.05mm | |
| Minimum Operating Temperature | -55°C | |
| Maximum Operating Temperature | +125°C | |
| Element Material | Cermet | |
Select all | ||
|---|---|---|
Brand TT Electronics/BI | ||
Maximum Resistance 20kΩ | ||
Mounting Type Through Hole | ||
Number of Turns 20 | ||
Orientation Side Adjust | ||
Power Rating 0.75W | ||
Series 89 | ||
Termination Style Solder Pin | ||
Tolerance ±10% | ||
Temperature Coefficient ±100ppm/°C | ||
Maximum Voltage Rating 200 V dc | ||
Shaft Diameter 2.36 (Metal Adjustment Screw) mm | ||
Length 19.05mm | ||
Minimum Operating Temperature -55°C | ||
Maximum Operating Temperature +125°C | ||
Element Material Cermet | ||
- COO (Country of Origin):
- MX
