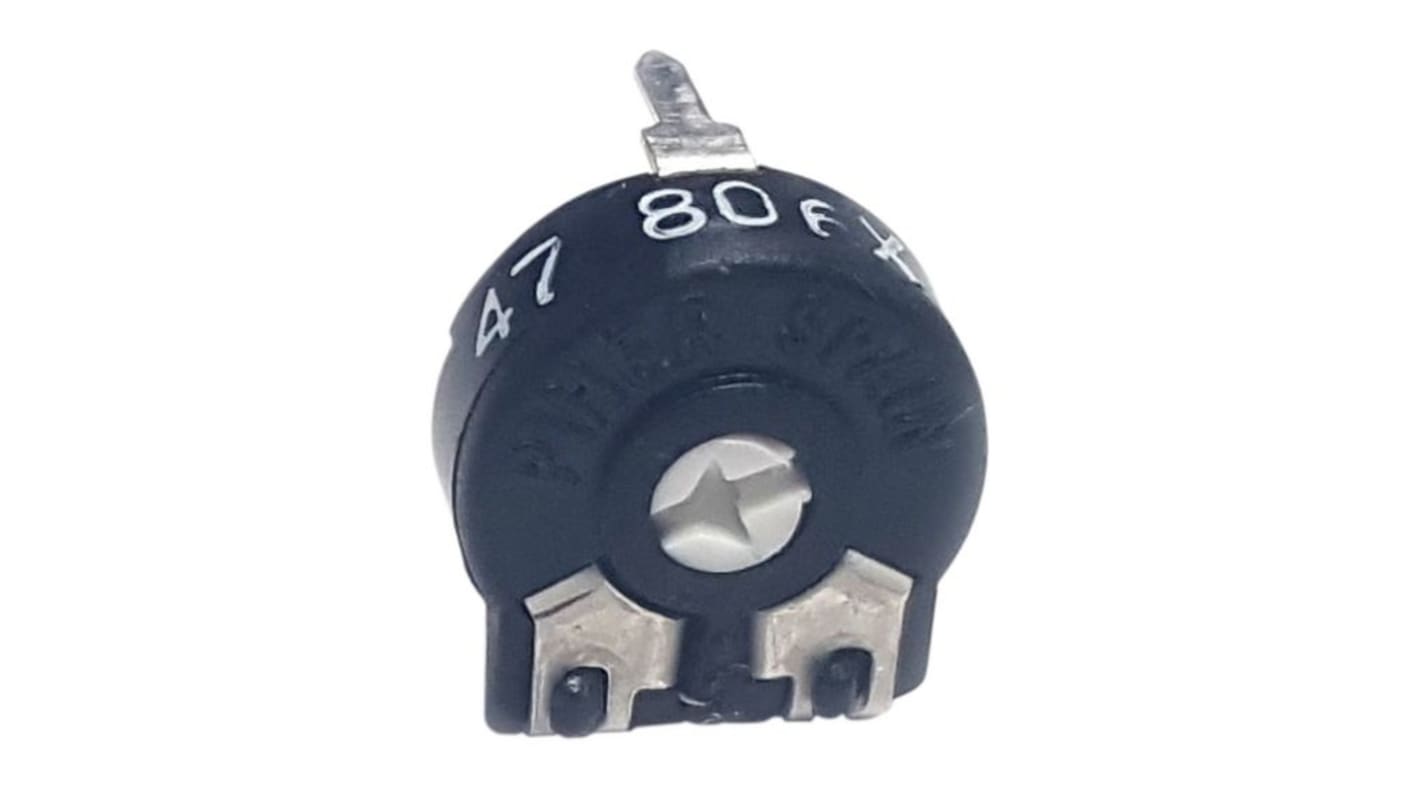

100 kΩ, Panel Mount Trimmer Potentiometer, Through Hole 0.2 W Side Adjust PIHER SENSORS AND CONTROLS S.S.A, PC-16
- RS Stock No.:
- 134-968
- Mfr. Part No.:
- PT10LV10-104A2020-PM-S
- Brand:
- PIHER SENSORS AND CONTROLS S.S.A
Bulk discount available
Subtotal (1 pack of 25 units)*
£7.00
(exc. VAT)
£8.50
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 3,925 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 25 - 75 | £0.28 | £7.00 |
| 100 - 225 | £0.266 | £6.65 |
| 250 - 475 | £0.246 | £6.15 |
| 500 + | £0.226 | £5.65 |
*price indicative
- RS Stock No.:
- 134-968
- Mfr. Part No.:
- PT10LV10-104A2020-PM-S
- Brand:
- PIHER SENSORS AND CONTROLS S.S.A
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | PIHER SENSORS AND CONTROLS S.S.A | |
| Maximum Resistance | 100kΩ | |
| Product Type | Trimmer Potentiometer | |
| Mount Type | Panel Mount | |
| Number of Turns | 1 | |
| Packaging | Bulk | |
| Orientation | Side Adjust | |
| Power Rating | 0.2W | |
| Series | PC-16 | |
| Automotive Standard | No | |
| Termination Style | Through Hole | |
| Tolerance ± | 0.1% | |
| Temperature Coefficient | 300 ppm/°C | |
| Maximum Voltage | 100V | |
| Diameter | 10mm | |
| Standards/Approvals | RoHS Compliant | |
| Element Material | Carbon | |
| Select all | ||
|---|---|---|
Brand PIHER SENSORS AND CONTROLS S.S.A | ||
Maximum Resistance 100kΩ | ||
Product Type Trimmer Potentiometer | ||
Mount Type Panel Mount | ||
Number of Turns 1 | ||
Packaging Bulk | ||
Orientation Side Adjust | ||
Power Rating 0.2W | ||
Series PC-16 | ||
Automotive Standard No | ||
Termination Style Through Hole | ||
Tolerance ± 0.1% | ||
Temperature Coefficient 300 ppm/°C | ||
Maximum Voltage 100V | ||
Diameter 10mm | ||
Standards/Approvals RoHS Compliant | ||
Element Material Carbon | ||
The PIHER SENSORS AND CONTROLS S.S.A carbon panel mount potentiometer is a single-turn panel control potentiometer using a carbon resistive element with plastic housing and incorporated shaft. A wide variety of configurable options, such as single or tandem models, different shaft types and tapers, make the PC-16 suitable for numerous applications in the home appliance, industrial and automotive markets.
IP54 protection according to IEC 60529
Single and tandem models
Assemblies with wires and connectors
