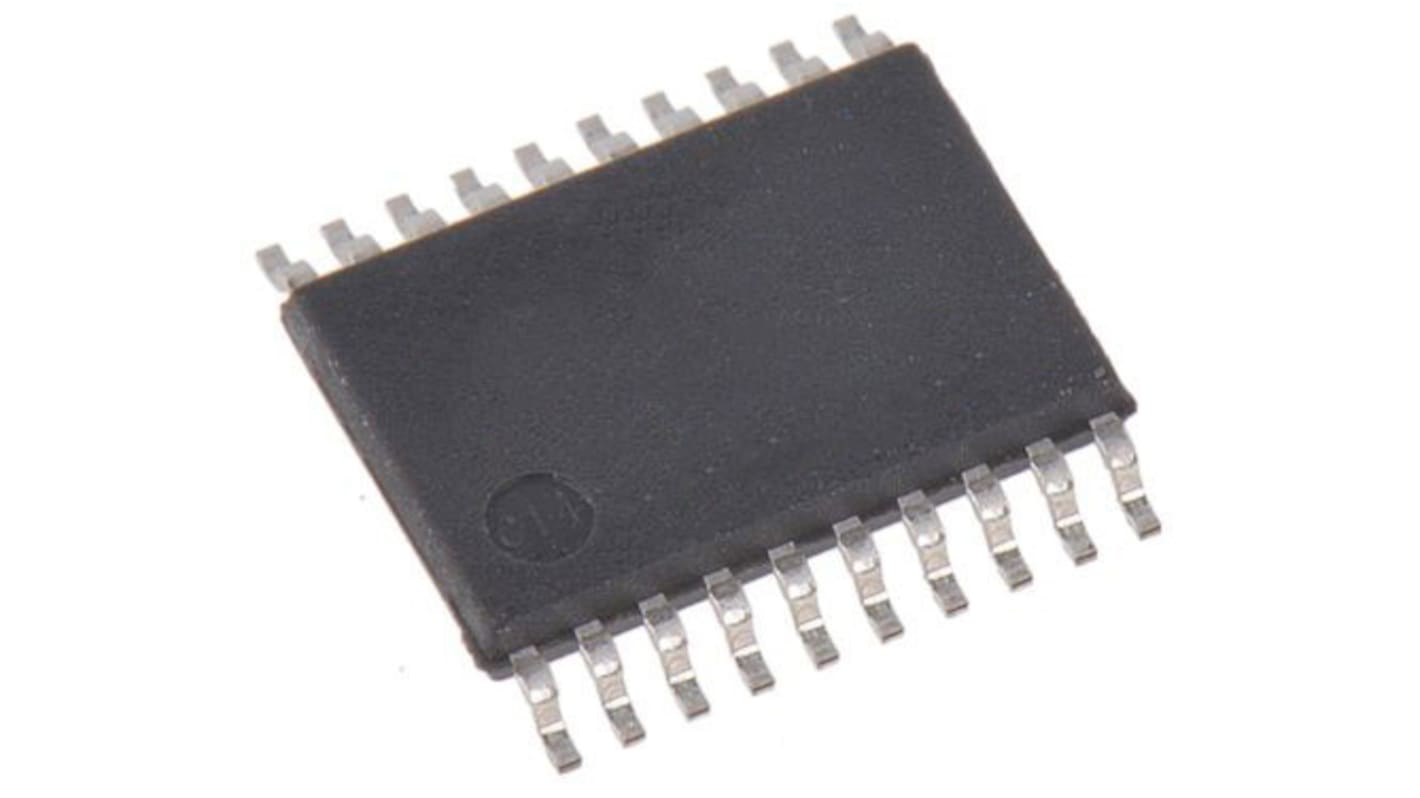

Maxim Integrated MAX3000EEUP+, Voltage Level Translator Level Translator Bi-Directional, 20-Pin TSSOP
- RS Stock No.:
- 190-5982P
- Mfr. Part No.:
- MAX3000EEUP+
- Brand:
- Maxim Integrated
Subtotal 5 units (supplied in a tube)*
£28.75
(exc. VAT)
£34.50
(inc. VAT)
FREE delivery for orders over £50.00
Last RS stock
- Final 35 unit(s), ready to ship
Units | Per unit |
---|---|
5 + | £5.75 |
*price indicative
- RS Stock No.:
- 190-5982P
- Mfr. Part No.:
- MAX3000EEUP+
- Brand:
- Maxim Integrated
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Maxim Integrated | |
Mounting Type | Surface Mount | |
Package Type | TSSOP | |
Pin Count | 20 | |
Output Type | 3 State | |
Logic Function | Level Translator | |
Dimensions | 6.6 x 4.5 x 0.75mm | |
Translation | Bi-Directional | |
Maximum Operating Supply Voltage | 5.5 V | |
Maximum Propagation Delay Time @ Maximum CL | 1000ns | |
Maximum Operating Temperature | +85 °C | |
Minimum Operating Supply Voltage | 1.65 V | |
Minimum Operating Temperature | -40 °C | |
Select all | ||
---|---|---|
Brand Maxim Integrated | ||
Mounting Type Surface Mount | ||
Package Type TSSOP | ||
Pin Count 20 | ||
Output Type 3 State | ||
Logic Function Level Translator | ||
Dimensions 6.6 x 4.5 x 0.75mm | ||
Translation Bi-Directional | ||
Maximum Operating Supply Voltage 5.5 V | ||
Maximum Propagation Delay Time @ Maximum CL 1000ns | ||
Maximum Operating Temperature +85 °C | ||
Minimum Operating Supply Voltage 1.65 V | ||
Minimum Operating Temperature -40 °C | ||
Guaranteed Data Rate Options
230kbps (MAX3000E)
4Mbps (MAX3001E)
20Mbps (MAX3002–MAX3012)
Bidirectional Level Translation Without Using a Directional Pin (MAX3000E/MAX3001E/MAX3002/MAX3003)
Unidirectional Level Translation (MAX3004–MAX3012)
Operation Down to +1.2V on VL
±15kV ESD Protection on I/O VCC Lines (MAX3000E/MAX3001E)
Ultra-Low 0.1μA Supply Current in Shutdown
Low Quiescent Current (< 10μA)
UCSP, TQFN, and TSSOP Packages
Applications
Cell Phone Cradles
Cell Phones
Global Positioning Systems (GPS)
Low-Cost Serial Interfaces
Low-Voltage ASIC Level Translation
Portable Communication Devices
Portable POS Systems
Smart Card Readers
SPI™ and MICROWIRE™ Level Translation
Telecommunications Equipment
230kbps (MAX3000E)
4Mbps (MAX3001E)
20Mbps (MAX3002–MAX3012)
Bidirectional Level Translation Without Using a Directional Pin (MAX3000E/MAX3001E/MAX3002/MAX3003)
Unidirectional Level Translation (MAX3004–MAX3012)
Operation Down to +1.2V on VL
±15kV ESD Protection on I/O VCC Lines (MAX3000E/MAX3001E)
Ultra-Low 0.1μA Supply Current in Shutdown
Low Quiescent Current (< 10μA)
UCSP, TQFN, and TSSOP Packages
Applications
Cell Phone Cradles
Cell Phones
Global Positioning Systems (GPS)
Low-Cost Serial Interfaces
Low-Voltage ASIC Level Translation
Portable Communication Devices
Portable POS Systems
Smart Card Readers
SPI™ and MICROWIRE™ Level Translation
Telecommunications Equipment
