Block 115 V ac, 230 V ac, 2 x 115V ac Toroidal Transformer, 625VA 2 Output
- RS Stock No.:
- 752-9441
- Mfr. Part No.:
- RKD 625/2x115
- Brand:
- Block
Bulk discount available
Subtotal (1 unit)*
£181.76
(exc. VAT)
£218.11
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 5 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 9 | £181.76 |
| 10 + | £172.68 |
*price indicative
- RS Stock No.:
- 752-9441
- Mfr. Part No.:
- RKD 625/2x115
- Brand:
- Block
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Block | |
| Primary Voltage Rating | 115 V ac, 230 V ac | |
| Secondary Voltage Rating | 2 x 115V ac | |
| Power Rating | 625VA | |
| Number of Outputs | 2 | |
| Weight | 6.1kg | |
| Diameter | 152mm | |
| Minimum Operating Frequency | 50Hz | |
| Maximum Operating Frequency | 60Hz | |
| Termination Type | Leads | |
| Maximum Temperature | +40°C | |
Select all | ||
|---|---|---|
Brand Block | ||
Primary Voltage Rating 115 V ac, 230 V ac | ||
Secondary Voltage Rating 2 x 115V ac | ||
Power Rating 625VA | ||
Number of Outputs 2 | ||
Weight 6.1kg | ||
Diameter 152mm | ||
Minimum Operating Frequency 50Hz | ||
Maximum Operating Frequency 60Hz | ||
Termination Type Leads | ||
Maximum Temperature +40°C | ||
- COO (Country of Origin):
- DE

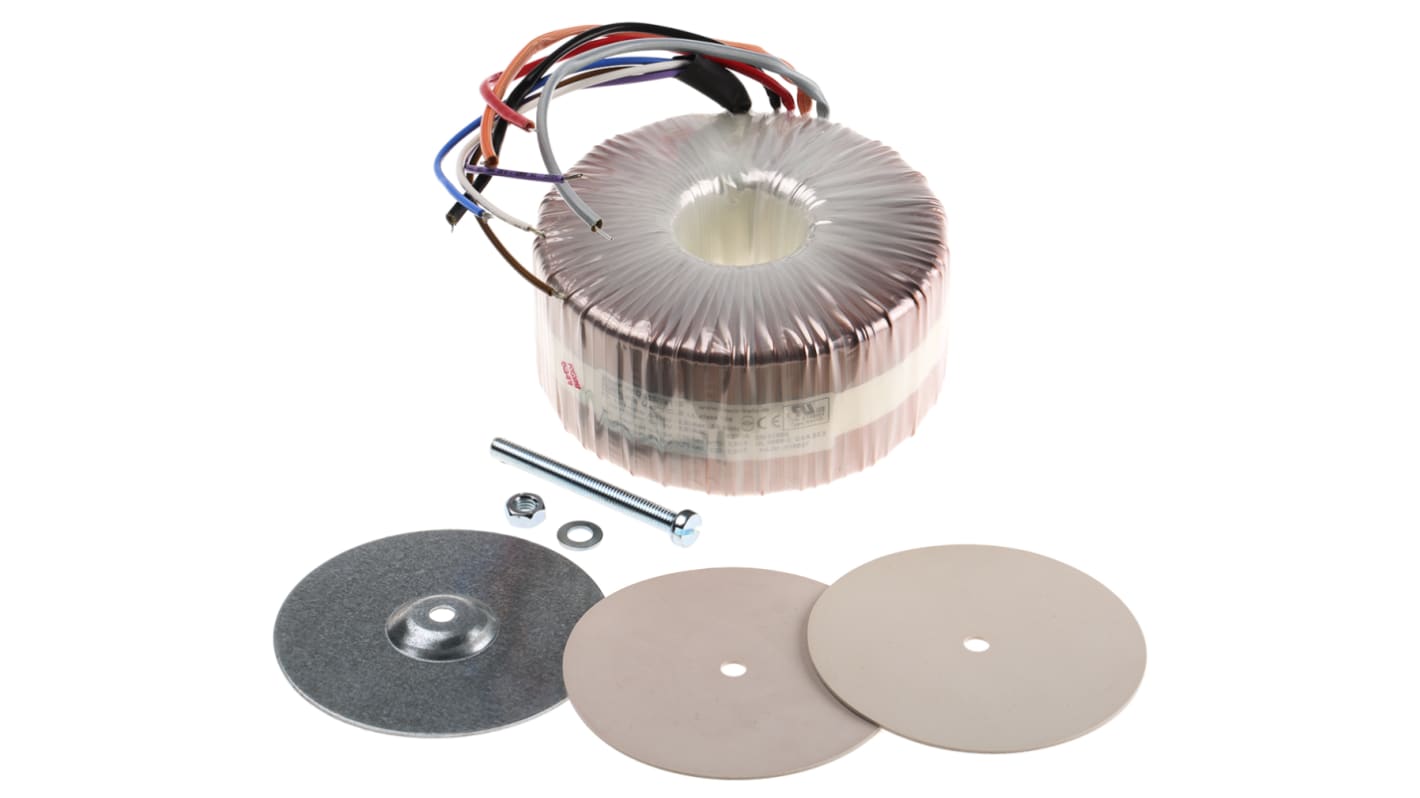

RKD Toroidal Transformers dual 115Vac input
High quality open style toroidal transformers with dual 115Vac 50/60Hz primary and secondary windings which may be connected in series or parallel or used independently.
Small size and low weight compared with traditional stacked lamination types
Extremely low level of radiated magnetic field
Very low induced noise (hum)
Very low iron loss
Supplied with mounting kit
Insulation Class B
Extremely low level of radiated magnetic field
Very low induced noise (hum)
Very low iron loss
Supplied with mounting kit
Insulation Class B
Supplied with
Mounting Kit
