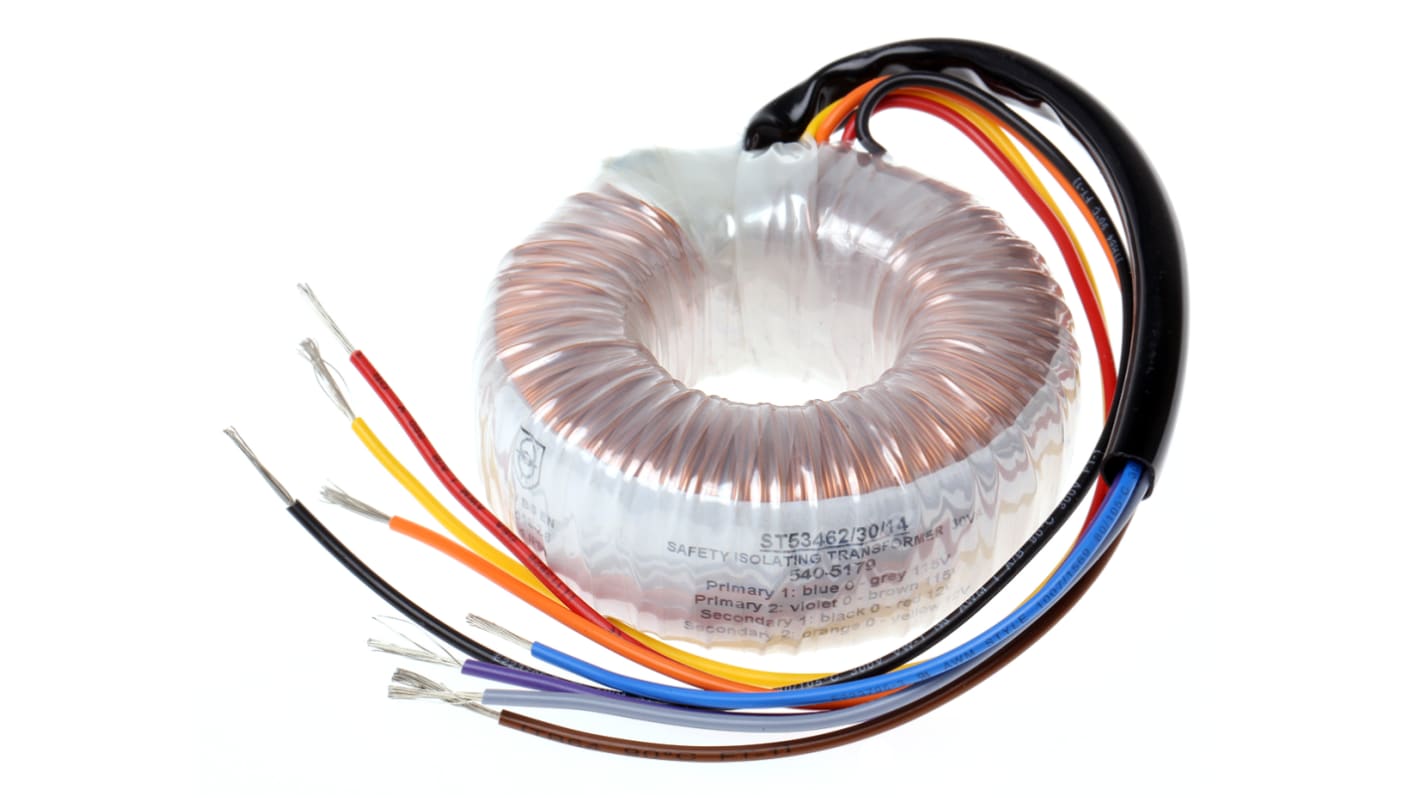

RS PRO 115 V ac, 230 V ac, 2 x 12V ac Toroidal Transformer, 30VA 2 Output

View all Toroidal Transformers
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.

Alternative

This product is not currently available. Here is our alternative recommendation.

presentation
Nuvotem Talema 230V ac, 2 x 12V ac Toroidal Transformer, 30VA 2 Output
RS Stock No.
223-7822

Each

£31.21

(exc. VAT)

£37.45

(inc. VAT)

RS Stock No.:
540-5179
Brand:
RS PRO
Find similar products by selecting one or more attributes.
Select all

Brand

RS PRO

Primary Voltage Rating

115 V ac, 230 V ac

Secondary Voltage Rating

2 x 12V ac

Power Rating

30VA

Number of Outputs

2

Secondary Current

1.25A

Height

32mm

Weight

500g

Diameter

71mm

Dimensions

71 (Dia.) x 32mm

Minimum Operating Frequency

50Hz

Maximum Operating Frequency

60Hz

Fixing Hole Diameter

5mm

COO (Country of Origin):
PL

Open Form Toroidal Transformers, 115-230Vac Primary, 30VA & 50VA


Small size and low weight compared with traditional stacked laminated transformers
Both primary and secondary windings may be connected in series or parallel
Low induced noise (hum)
Low level of radiated magnetic field
Flexible leadouts, for ease of installation
100% electrical and flash testing

Standards

EN61558, IEC742

Warning

Under no circumstances should both ends of the fixing bolt simultaneously contact the metal chassis or framework as this would create a potentially dangerous 'shorted-turn'.

Approvals

CE marked, UL506, UL1411 and UL478

Supplied with

Full mounting kit

Approvals

CE marked, UL506, UL1411 and UL478
