Nuvotem Talema 400 V ac ±55 V ac Toroidal Transformer 1 Output 75 VA, BS415 Class II, VDE0551 Class II, EN60065 Class II

RS Stock No.:: 310-3332
Mfr. Part No.:: SFB0075-400-55
Brand:: Nuvotem Talema

Nuvotem Talema 400 V ac ±55 V ac Toroidal Transformer 1 Output 75 VA, BS415 Class II, VDE0551 Class II, EN60065 Class II

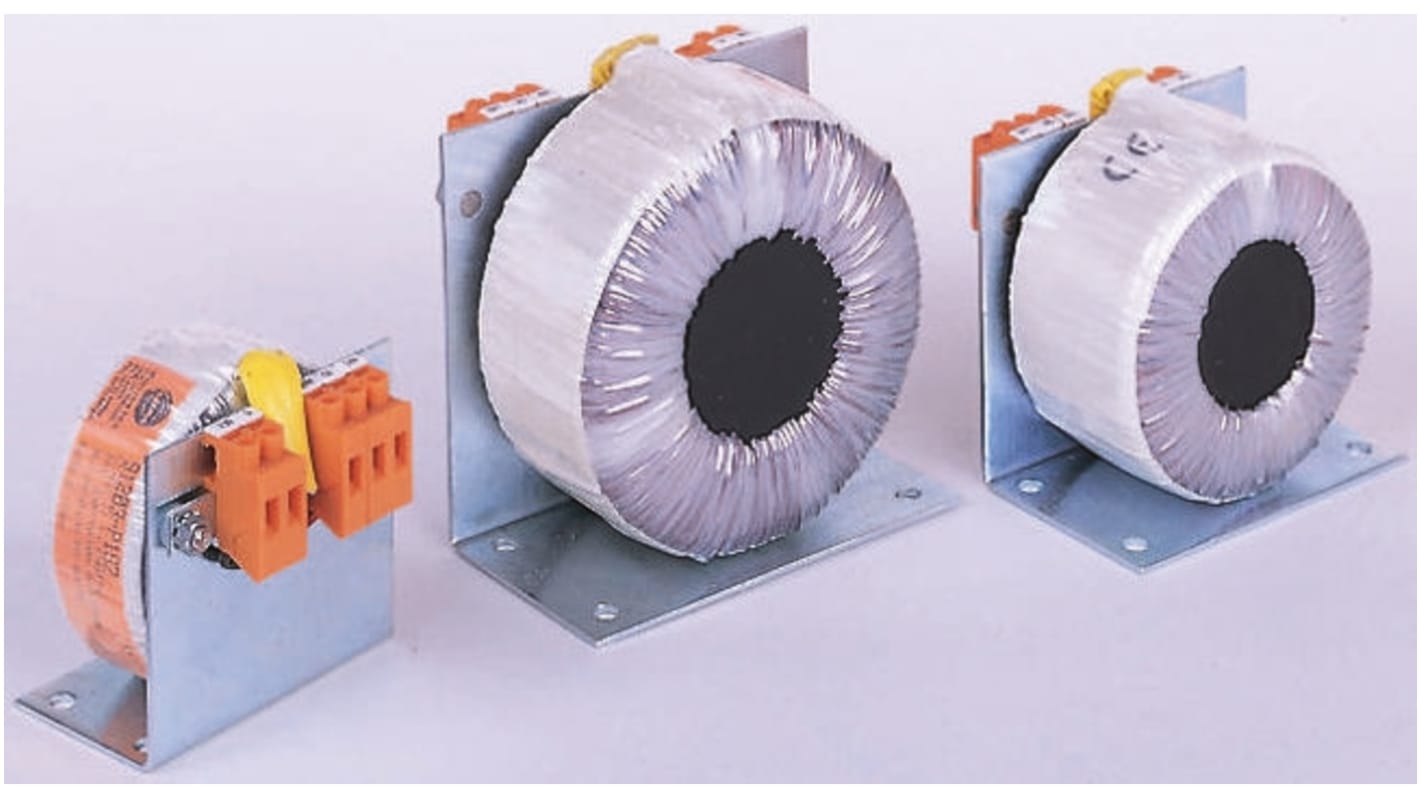

Image representative of range

Bulk discount available

Subtotal (1 unit)*

£89.27

(exc. VAT)

£107.12

(inc. VAT)

FREE delivery for orders over £50.00

In Stock

Plus 3 unit(s) shipping from 02 March 2026

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 - 9	£89.27
10 - 24	£84.36
25 - 49	£75.43
50 - 74	£66.51
75 +	£57.58

*price indicative

RS Stock No.:: 310-3332
Mfr. Part No.:: SFB0075-400-55
Brand:: Nuvotem Talema

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Nuvotem Talema
	Primary Voltage	400 V ac
	Product Type	Toroidal Transformer
	Secondary Voltage	±55 V ac
	Number of Outputs	1
	Secondary Current	682 mA
	Weight	950g
	Power	75VA
	Minimum Operating Frequency	50Hz
	Minimum Operating Temperature	105°C
	Maximum Operating Frequency	60Hz
	Toroid Centre	66 x 30 mm
	Winding Type	Centre Tapped
	Mount Type	Chassis
	Maximum Operating Temperature	180°C
	Height	83mm
	Series	SFB0075
	Termination Type	Screw
	Standards/Approvals	BS415 Class II, VDE0551 Class II, EN60065 Class II (IEC65), EN60742 Class II, EN60950 Class II, VDE0550 Class II

	Select all
	Brand Nuvotem Talema
	Primary Voltage 400 V ac
	Product Type Toroidal Transformer
	Secondary Voltage ±55 V ac
	Number of Outputs 1
	Secondary Current 682 mA
	Weight 950g
	Power 75VA
	Minimum Operating Frequency 50Hz
	Minimum Operating Temperature 105°C
	Maximum Operating Frequency 60Hz
	Toroid Centre 66 x 30 mm
	Winding Type Centre Tapped
	Mount Type Chassis
	Maximum Operating Temperature 180°C
	Height 83mm
	Series SFB0075
	Termination Type Screw
	Standards/Approvals BS415 Class II, VDE0551 Class II, EN60065 Class II (IEC65), EN60742 Class II, EN60950 Class II, VDE0550 Class II

Transformer,toroidal 75VA,230V primary Data Sheet

Control Panel Toroidal SFB Series

High quality toroidal isolating transformers designed for use in control circuits and general purpose applications.

Vertical mounting on a zinc plated steel bracket

Small size and low weight compared with traditional lamination types

Fully shrouded screw terminals with permanent marking

Easy installation - mounting holes provided

Low radiated magnetic field

Very low induced noise (hum)

High quality manufacturing and testing in accordance to EN60742, EN60065, VDE0551, VDE0550 and BS415

Toroidal

High quality toroidal isolating transformers designed for use in control circuits and general purpose applications.

Approvals

VDE 0551; VDE 0550

Standards

EN60742; EN60065; BS415
