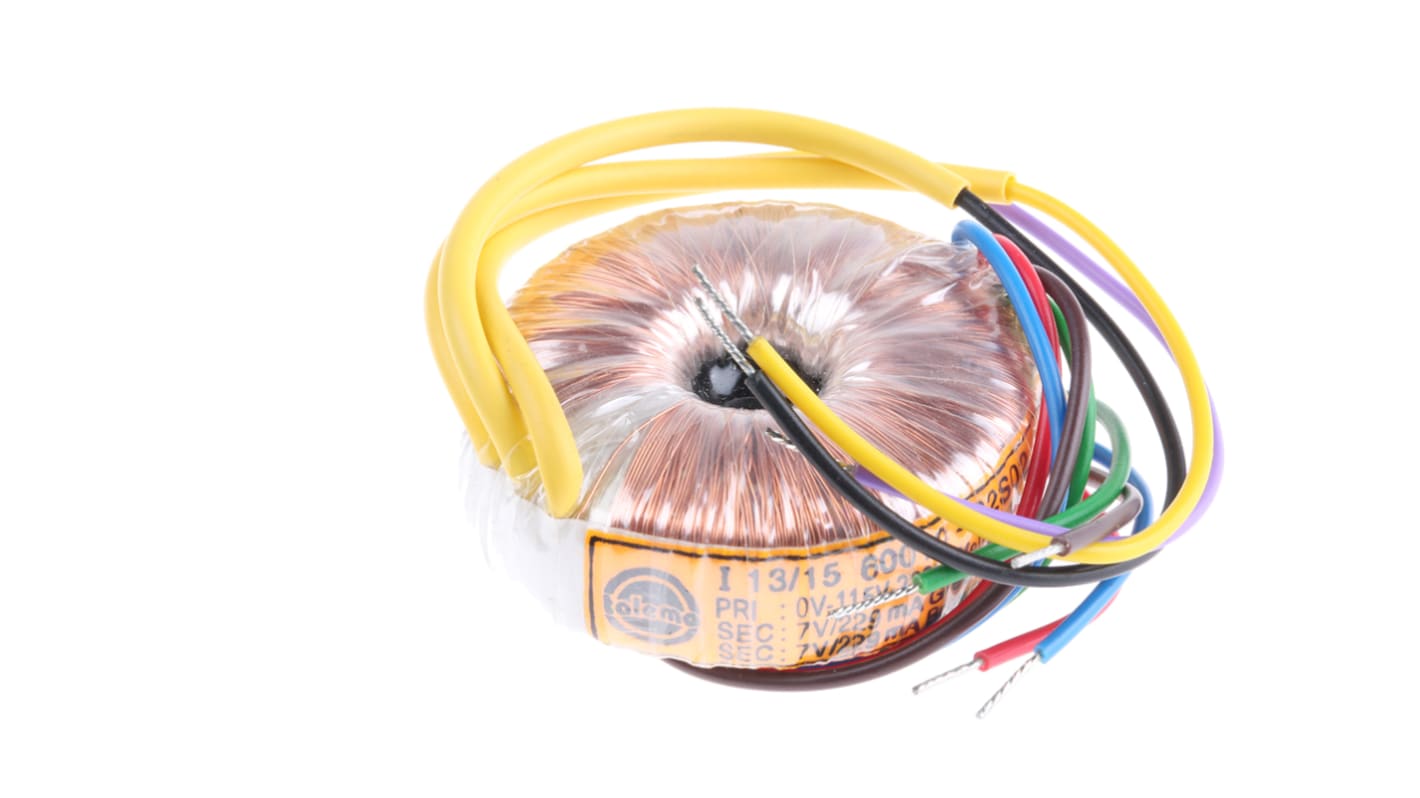

Nuvotem Talema 115 V ac, 230 V ac, 2 x 7V ac Toroidal Transformer, 3.2VA 2 Output
- RS Stock No.:
- 278-6829
- Mfr. Part No.:
- 60010
- Brand:
- Nuvotem Talema
Bulk discount available
Subtotal (1 unit)*
£23.17
(exc. VAT)
£27.80
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- 30 unit(s) shipping from 08 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 9 | £23.17 |
| 10 - 24 | £21.90 |
| 25 - 49 | £19.58 |
| 50 - 74 | £17.26 |
| 75 + | £14.92 |
*price indicative
- RS Stock No.:
- 278-6829
- Mfr. Part No.:
- 60010
- Brand:
- Nuvotem Talema
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Nuvotem Talema | |
| Primary Voltage Rating | 115 V ac, 230 V ac | |
| Secondary Voltage Rating | 2 x 7V ac | |
| Power Rating | 3.2VA | |
| Number of Outputs | 2 | |
| Secondary Current | 229mA | |
| Height | 18mm | |
| Weight | 102g | |
| Diameter | 42.5mm | |
| Dimensions | 42.5 (Dia.) x 18mm | |
| Maximum Temperature | +60°C | |
Select all | ||
|---|---|---|
Brand Nuvotem Talema | ||
Primary Voltage Rating 115 V ac, 230 V ac | ||
Secondary Voltage Rating 2 x 7V ac | ||
Power Rating 3.2VA | ||
Number of Outputs 2 | ||
Secondary Current 229mA | ||
Height 18mm | ||
Weight 102g | ||
Diameter 42.5mm | ||
Dimensions 42.5 (Dia.) x 18mm | ||
Maximum Temperature +60°C | ||
- COO (Country of Origin):
- IN
Toroidal, Mini Open Style Transformers with Leads 115/230Vac, 60000 Series
High quality open style toroidal transformers with a 0-115/230Va.c. 50/60Hz primary winding. Twin secondary windings may be connected in series or parallel or used independently. Designed for easy mounting with centre hole fixing.
Dual standard tapped primary 115/230Vac
Low profile-small size-lightweight
Potted centre with M4 fixing hole
Low level of radiated magnetic field
Very low induced noise (hum)
Double insulated primary leads
100% electrical and flash tested
High quality manufacturing and testing in accordance to EN61558,EN60950,EN60065, VDE0551,VDE0550,BS415
Low profile-small size-lightweight
Potted centre with M4 fixing hole
Low level of radiated magnetic field
Very low induced noise (hum)
Double insulated primary leads
100% electrical and flash tested
High quality manufacturing and testing in accordance to EN61558,EN60950,EN60065, VDE0551,VDE0550,BS415
Standards
UL506, EN61558
Warning
Under no circumstances should both ends of the fixing bolt simultaneously contact the metal chassis or framework as this would create a potentially dangerous 'shorted-turn'.
Approvals
UL recognised, ENEC05
Approvals
UL 506; ENG1558
Standards
EN61558; EN60950; EN60065; VDE 0551; VDE 0550; BS415
Toroidal Mini Open Style 115-230Vac Primary 1.6VA to 7VA
