Nuvotem Talema 230V ac, 11.8V ac Toroidal Transformer, 200VA 1 Output
- RS Stock No.:
- 257-4878
- Mfr. Part No.:
- 91934-P1S1
- Brand:
- Nuvotem Talema
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 257-4878
- Mfr. Part No.:
- 91934-P1S1
- Brand:
- Nuvotem Talema
Specifications
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Nuvotem Talema | |
| Primary Voltage Rating | 230V ac | |
| Secondary Voltage Rating | 11.8V ac | |
| Power Rating | 200VA | |
| Number of Outputs | 1 | |
| Height | 50mm | |
| Weight | 1.8kg | |
| Diameter | 105mm | |
| Dimensions | 105 (Dia.) x 50mm | |
| Maximum Temperature | +40°C | |
| Isolation Voltage | 5kV ac | |
Select all | ||
|---|---|---|
Brand Nuvotem Talema | ||
Primary Voltage Rating 230V ac | ||
Secondary Voltage Rating 11.8V ac | ||
Power Rating 200VA | ||
Number of Outputs 1 | ||
Height 50mm | ||
Weight 1.8kg | ||
Diameter 105mm | ||
Dimensions 105 (Dia.) x 50mm | ||
Maximum Temperature +40°C | ||
Isolation Voltage 5kV ac | ||
- COO (Country of Origin):
- CZ
Open Style with Leads 230Vac Primary, 11.8Vac Secondary, Toroidal Lighting Transformers
Primary incorporates an auto-reset thermal switch, rated at 120° ±5°C
Double insulated primary leads
100% electrical and flash tested
Extremely low level of radiated magnetic field
Very low induced noise (hum)
Double insulated primary leads
100% electrical and flash tested
Extremely low level of radiated magnetic field
Very low induced noise (hum)
Note
Not dimmable
Warning
Under no circumstances should both ends of the fixing bolt simultaneously contact the metal chassis or framework as this would create a potentially dangerous 'shorted-turn'.

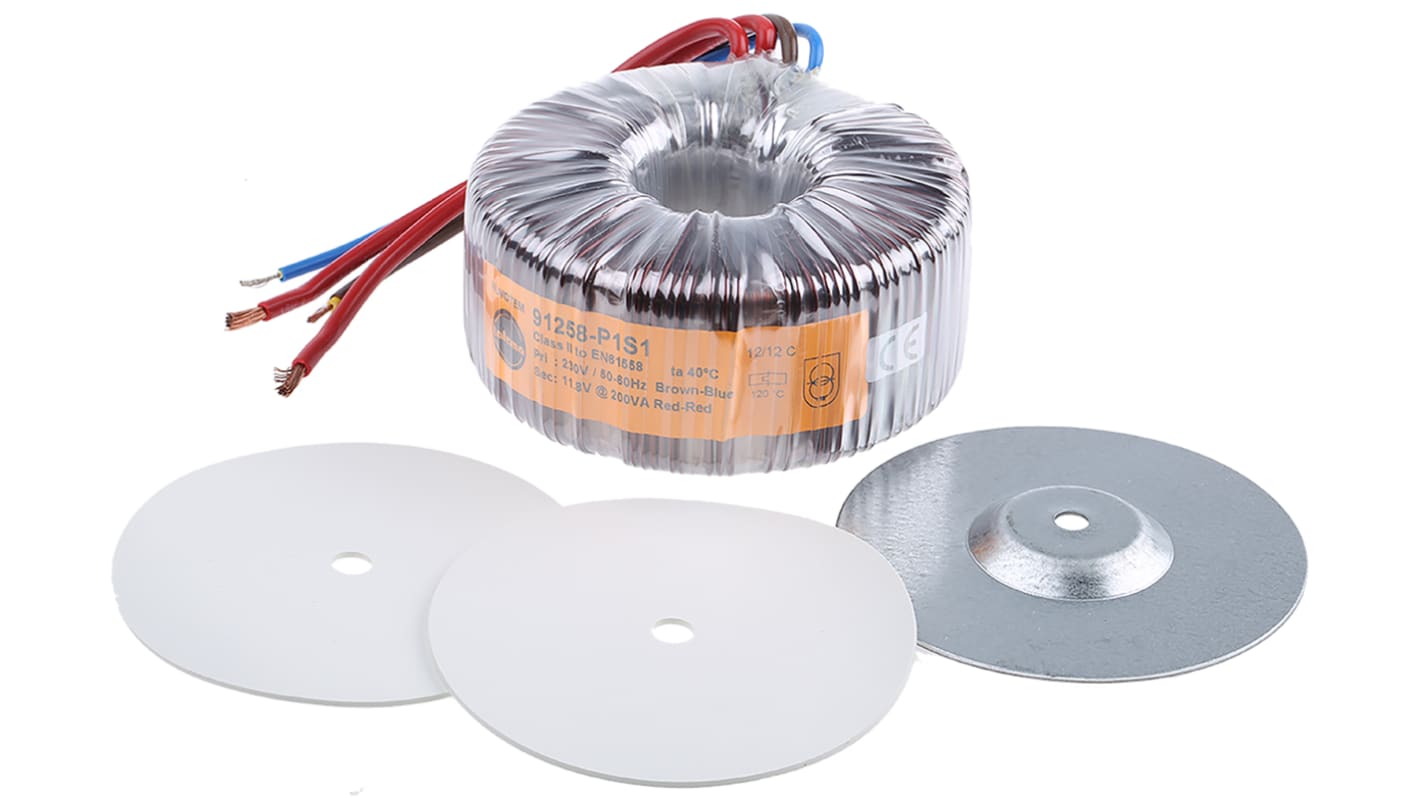

Supplied with
Full mounting kit
Approvals
VDE 0551; VDE 0550
Standards
EN60742; EN60950; EN60065; BS415
