RS PRO 2 x 115V, 2 x 7V Toroidal Transformer, 10VA
- RS Stock No.:
- 124-3861
- Brand:
- RS PRO
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 124-3861
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Primary Voltage Rating | 2 x 115V | |
| Secondary Voltage Rating | 2 x 7V | |
| Power Rating | 10VA | |
| Secondary Current | 714mA | |
| Height | 26mm | |
| Weight | 252g | |
| Dimensions | 55 x 55 x 26mm | |
| Maximum Operating Frequency | 50Hz | |
| Mounting Type | Through Hole | |
| Maximum Temperature | +60°C | |
| Isolation Voltage | 4kV | |
Select all | ||
|---|---|---|
Brand RS PRO | ||
Primary Voltage Rating 2 x 115V | ||
Secondary Voltage Rating 2 x 7V | ||
Power Rating 10VA | ||
Secondary Current 714mA | ||
Height 26mm | ||
Weight 252g | ||
Dimensions 55 x 55 x 26mm | ||
Maximum Operating Frequency 50Hz | ||
Mounting Type Through Hole | ||
Maximum Temperature +60°C | ||
Isolation Voltage 4kV | ||
- COO (Country of Origin):
- IN

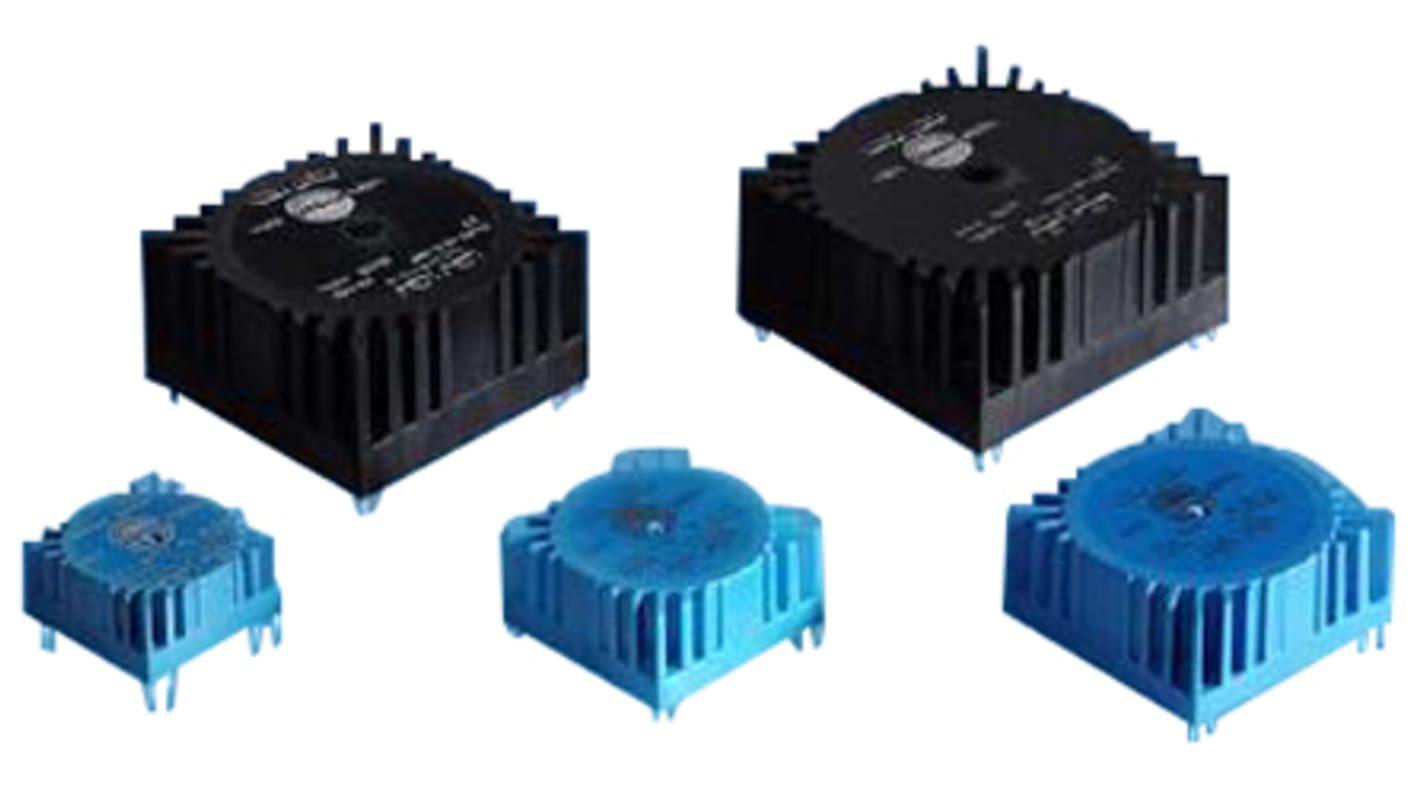

RS Pro Toroidal PC Transformer 1.6VA- 25VA
RS Pro toroidal PC transformers are high efficiency and low profile being a small size and low weight. These Toroidal transformers have low iron loss and low induced noise. Dual 115 V primaries for parallel or series connections.
Features
Lower stray field
Reduced standby current
Test voltage primary- secondary 4.0 KV
Ease of mounting- M4 Centre bush
Ambient operating temperature: +60°C Max
Fully RoHS & REACH compliant
Reduced standby current
Test voltage primary- secondary 4.0 KV
Ease of mounting- M4 Centre bush
Ambient operating temperature: +60°C Max
Fully RoHS & REACH compliant
Encapsulated – Toroidal
Note
Fixing screws not provided
