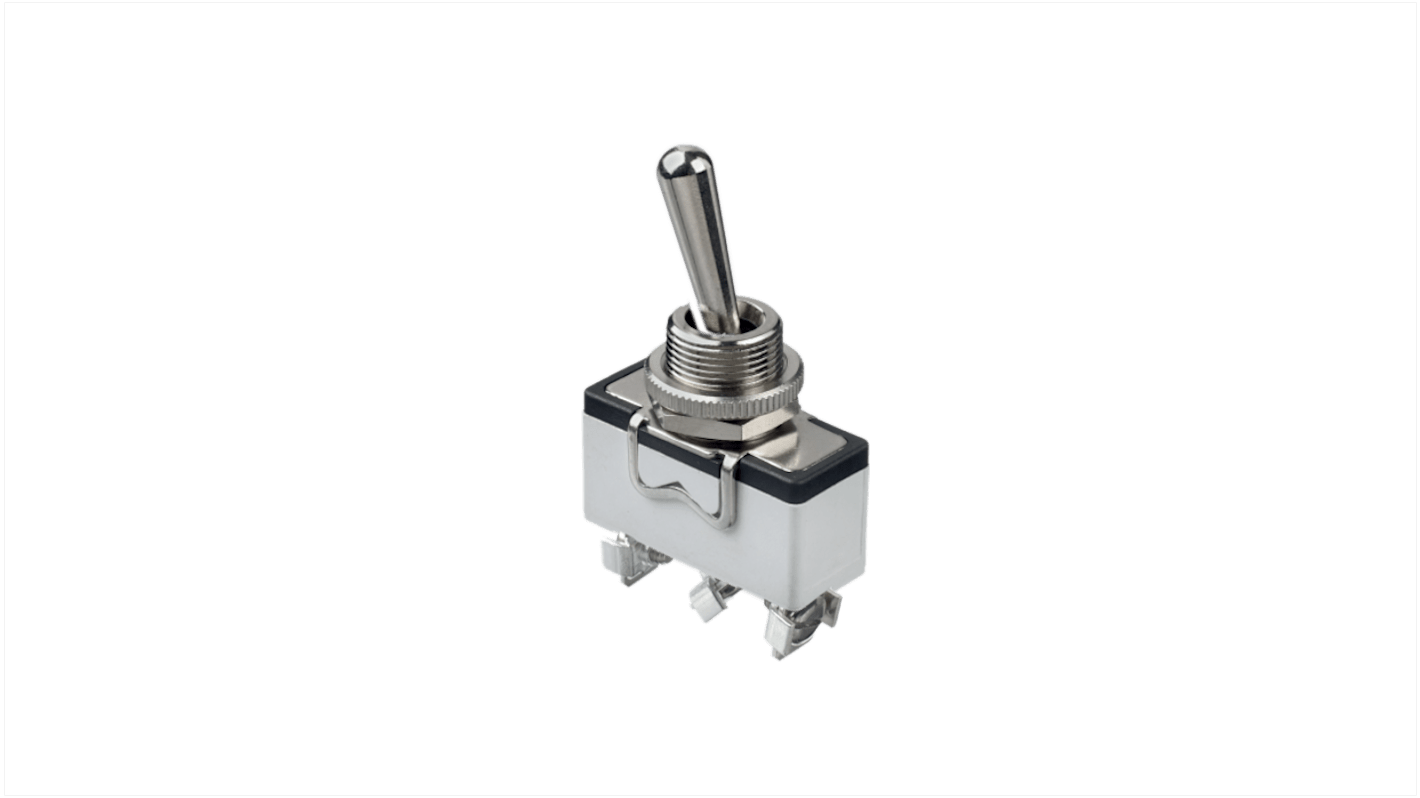

APEM Toggle Switch, Panel Mount, On-Off, SPDT, Screw Terminal, 400 V ac
- RS Stock No.:
- 910-8068
- Distrelec Article No.:
- 135-22-350
- Mfr. Part No.:
- 631H
- Brand:
- APEM
Bulk discount available
Subtotal (1 unit)*
£7.25
(exc. VAT)
£8.70
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 469 unit(s) ready to ship
- Plus 44 unit(s) ready to ship from another location
- Plus 150 unit(s) shipping from 05 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 24 | £7.25 |
| 25 - 49 | £5.96 |
| 50 - 99 | £5.44 |
| 100 - 249 | £5.07 |
| 250 + | £4.64 |
*price indicative
- RS Stock No.:
- 910-8068
- Distrelec Article No.:
- 135-22-350
- Mfr. Part No.:
- 631H
- Brand:
- APEM
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | APEM | |
| Product Type | Toggle Switch | |
| Contact Configuration | SPDT | |
| Switch Operation | On-Off | |
| Switch Contact Current | 15A | |
| Mount Type | Panel | |
| Terminal Type | Screw | |
| Illuminated | No | |
| Panel Cutout Size | 12.2 mm | |
| Contact AC Voltage | 400V ac | |
| Actuator Length | 17.5mm | |
| Minimum Operating Temperature | -20°C | |
| Maximum Operating Temperature | 55°C | |
| Switch Configuration | On-Off | |
| Actuator Material | Nickel Plated Brass | |
| Length | 17.5mm | |
| Standards/Approvals | UL, NF-VDE, CSA | |
| Series | 600H and 600NH | |
| Mechanical Life | 10000Cycles | |
| Select all | ||
|---|---|---|
Brand APEM | ||
Product Type Toggle Switch | ||
Contact Configuration SPDT | ||
Switch Operation On-Off | ||
Switch Contact Current 15A | ||
Mount Type Panel | ||
Terminal Type Screw | ||
Illuminated No | ||
Panel Cutout Size 12.2 mm | ||
Contact AC Voltage 400V ac | ||
Actuator Length 17.5mm | ||
Minimum Operating Temperature -20°C | ||
Maximum Operating Temperature 55°C | ||
Switch Configuration On-Off | ||
Actuator Material Nickel Plated Brass | ||
Length 17.5mm | ||
Standards/Approvals UL, NF-VDE, CSA | ||
Series 600H and 600NH | ||
Mechanical Life 10000Cycles | ||
- COO (Country of Origin):
- FR
Toggle Switches, Std, 15A Metal Lever
Single and double pole switches with a choice of flat insulated or nickel plated brass levers.
12mm mounting bush
250 ( 1/4 in.) terminals
Brass actuator and Melamine/Polyester case
Silver/Nickel Alloy contacts
Note
For biased switches (on) refers to momentary (on) position
