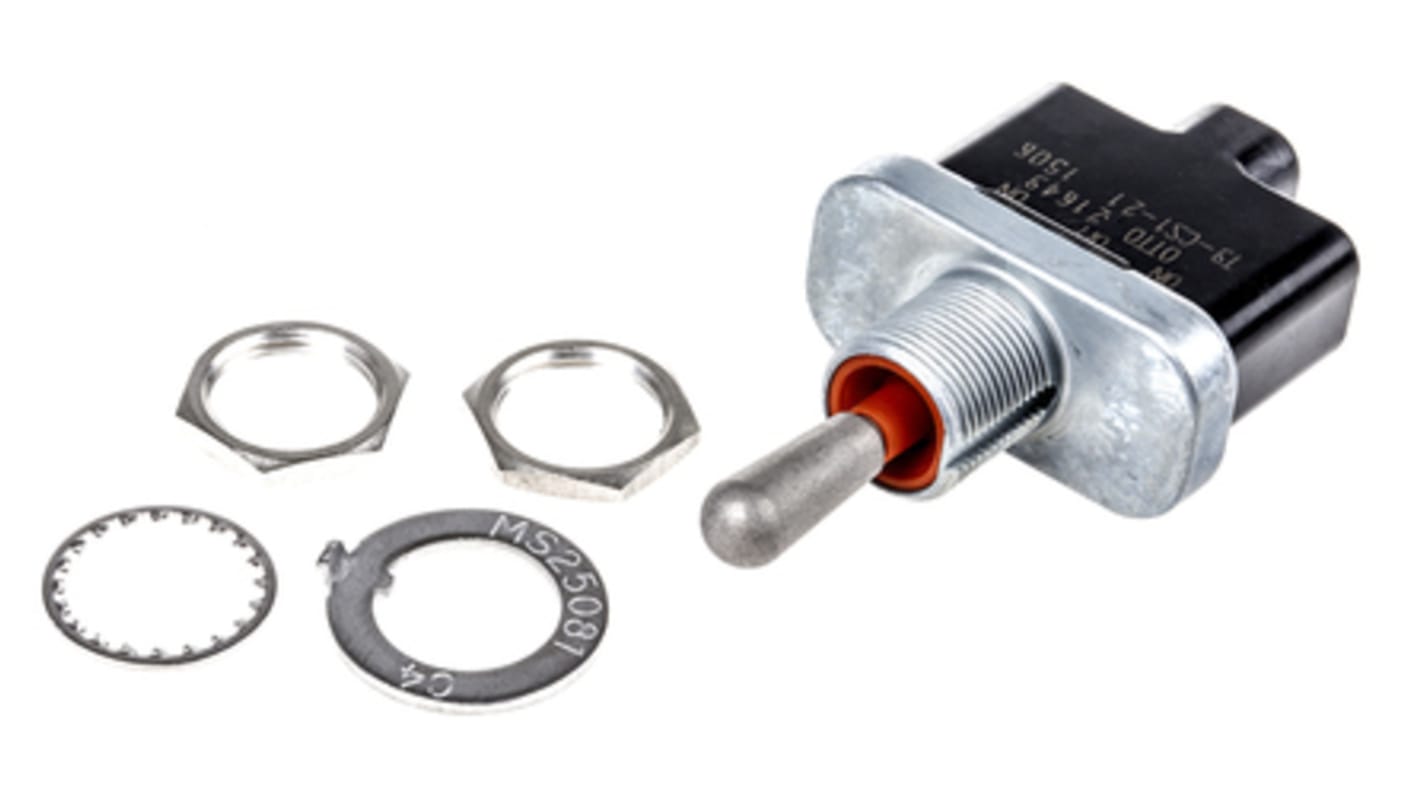

Otto Single Pole Single Throw (SPST) Toggle Switch, (On)-On, IP68S, Panel Mount

  • RS Stock No. 883-7623
  • Mfr. Part No. T9-CS1-26
  • Brand Otto
Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): US
Product Details

16A Sealed Switches (Screw terminal)

Built to MIL-DTL-3950
IP68 Sealed
Electrical life 20000 min, Mechanical life 40000 cycles
Standard silver plated contacts
Fitted with large reliable screw terminals
Electrical rating 20A @ 28Vdc, 15A @ 115Vac

//media.rs-online.com/t_line/L0512900-01.gif
Specifications
Attribute Value
Contact Configuration Single Pole Single Throw (SPST)
Switch Operation (On)-On
Contact Current Rating 15 A
Mounting Type Panel Mount
Terminal Type Screw
IP Rating IP68S
Panel Cut Out Diameter 0.67mm
Actuator Length 0.69in
Actuator Material Stainless Steel
Voltage Rating 28 V dc, 115 V ac
Standards Met CSA, Reach, RoHS, UL, WEEE
Maximum Operating Temperature +71°C
Mechanical Life 40000Cycles
Operating Temperature Range -65 +71°C
Panel Cut Out Size 0.67 (Dia.)mm
Minimum Operating Temperature -65°C
Contact Material Silver
154 In stock for FREE next working day delivery
Price Each
£ 18.85
(exc. VAT)
£ 22.62
(inc. VAT)
Units
Per unit
1 +
£18.85
