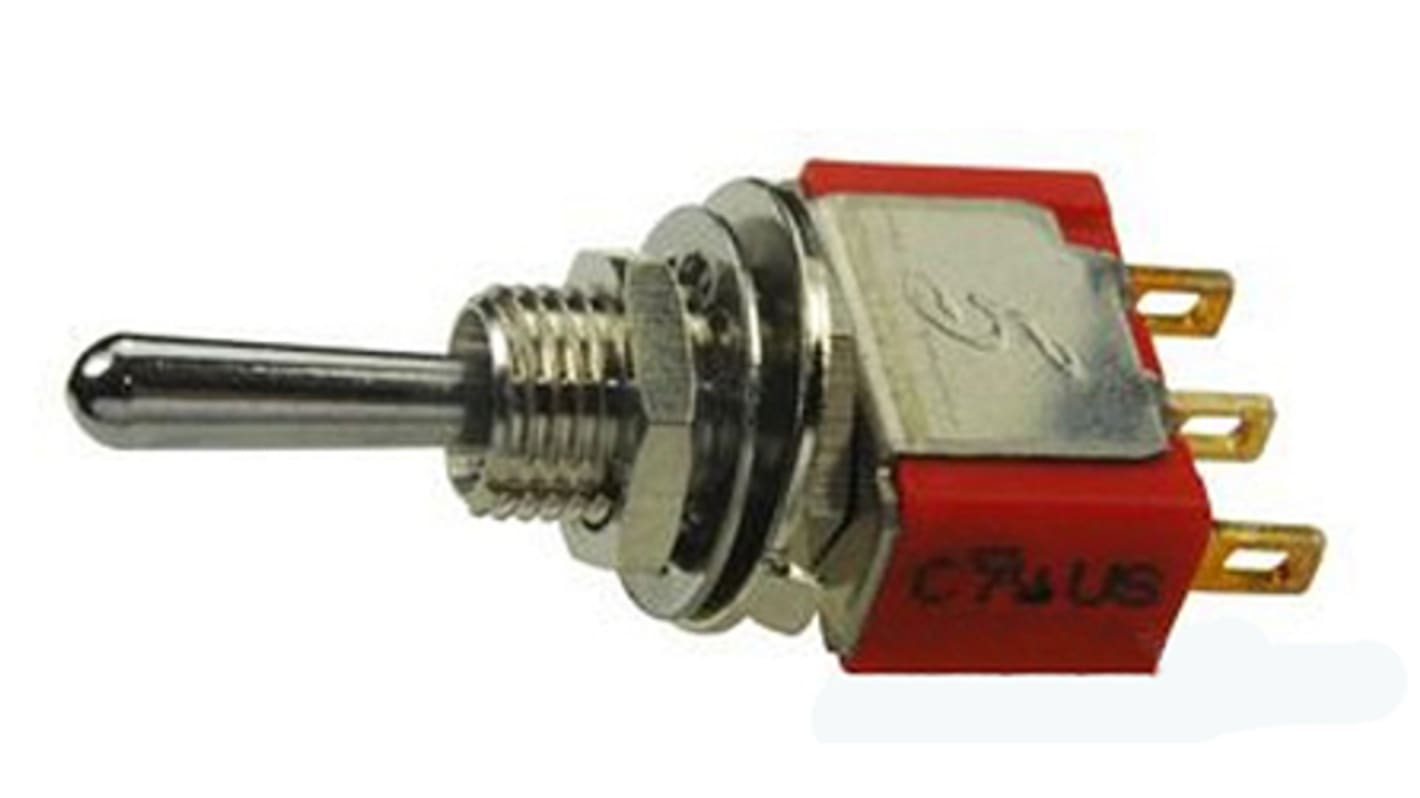

Grayhill SPDT Toggle Switch, (On)-Off-(On), Panel Mount

  • RS Stock No. 878-0350
  • Mfr. Part No. 34ASP41B1M1QT
  • Brand Grayhill
Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): CN
Product Details

Grayhill 34A Series Miniature Toggle Switches

The 34A series miniature toggle switches come with a choice of actuators, bushings and terminations making them suitable for many possible applications, especially for those where space is at a premium. Users can also select from a number of pole configurations including SPDT, DPDT, 3PDT and 4PDT. They are also extremely economical with an electrical life of 40,000 make-and-break cycles at full load reducing maintenance.

Features:
Save Space and Weight
SPDT, DPDT, 3PDT, and 4DPT Circuitry
Choice of Actuators, Bushings and Terminations
Contact rating: 5A at 125 Vac and 28 Vdc (resistive)
Operating temperature: -30 to +85 °C

Standards

UL Recognized

Specifications
Attribute Value
Contact Configuration SPDT
Switch Operation (On)-Off-(On)
Contact Current Rating 5 A
Mounting Type Panel Mount
Terminal Type Solder
Panel Cut Out Diameter 6.35mm
Actuator Length 10.41mm
Actuator Material Chrome Plated Brass
Voltage Rating 28 V dc, 250 V ac
Contact Resistance 10mΩ
Minimum Operating Temperature -30°C
Contact Material Copper Alloy, Silver Plated
Standards Met RoHS, UL
Maximum Operating Temperature +85°C
Mechanical Life 40000 (Electrical)Operations
Operating Temperature Range -30 → +85°C
Panel Cut Out Size 6.35mm
Available to back order for despatch 19/01/2021
Price Each
£ 5.06
(exc. VAT)
£ 6.07
(inc. VAT)
Units
Per unit
1 +
£5.06
