KNITTER-SWITCH Toggle Switch, PCB Mount, On-Off-On, SPDT, Solder Terminal, 20 V dc, 20 V ac
- RS Stock No.:
- 819-9426
- Mfr. Part No.:
- TST 1 G
- Brand:
- KNITTER-SWITCH

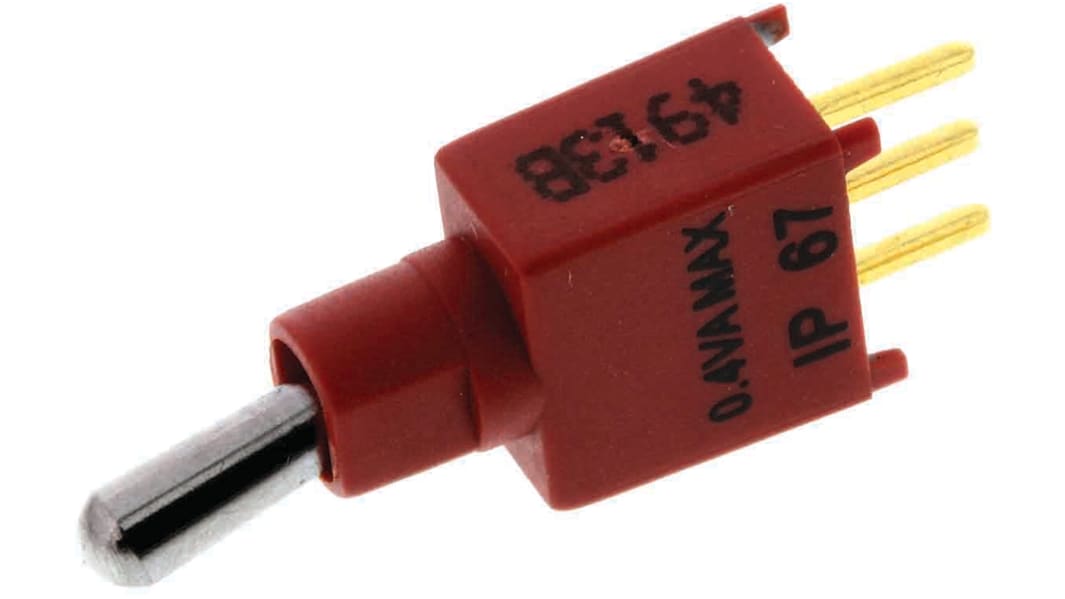

Image representative of range
Bulk discount available
Subtotal (1 unit)*
£3.33
(exc. VAT)
£4.00
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 77 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 14 | £3.33 |
| 15 - 49 | £3.24 |
| 50 - 99 | £2.83 |
| 100 - 249 | £2.67 |
| 250 + | £2.43 |
*price indicative
- RS Stock No.:
- 819-9426
- Mfr. Part No.:
- TST 1 G
- Brand:
- KNITTER-SWITCH
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | KNITTER-SWITCH | |
| Contact Configuration | SPDT | |
| Product Type | Toggle Switch | |
| Switch Operation | On-Off-On | |
| Switch Contact Current | 400mA | |
| Mount Type | PCB | |
| Terminal Type | Solder | |
| IP Rating | IP67 | |
| Contact DC Voltage | 20V dc | |
| Minimum Operating Temperature | 85°C | |
| Actuator Length | 6.1mm | |
| Contact AC Voltage | 20V ac | |
| Actuator Material | Gold Plated Copper | |
| Maximum Operating Temperature | -30°C | |
| Series | TST | |
| Length | 5.08mm | |
| Width | 8.13mm | |
| Height | 21.49mm | |
| Standards/Approvals | RoHS | |
| Mechanical Life | 50000Operations | |
| Select all | ||
|---|---|---|
Brand KNITTER-SWITCH | ||
Contact Configuration SPDT | ||
Product Type Toggle Switch | ||
Switch Operation On-Off-On | ||
Switch Contact Current 400mA | ||
Mount Type PCB | ||
Terminal Type Solder | ||
IP Rating IP67 | ||
Contact DC Voltage 20V dc | ||
Minimum Operating Temperature 85°C | ||
Actuator Length 6.1mm | ||
Contact AC Voltage 20V ac | ||
Actuator Material Gold Plated Copper | ||
Maximum Operating Temperature -30°C | ||
Series TST | ||
Length 5.08mm | ||
Width 8.13mm | ||
Height 21.49mm | ||
Standards/Approvals RoHS | ||
Mechanical Life 50000Operations | ||
- COO (Country of Origin):
- CN
Knitter Switch Subminiature Toggle Switches - TST Series
Subminiature PCB mount toggle switches
Gold plated contacts allow low level switching
Low contact resistance
Fully sealed, washable
Insulation resistance: 1000 MΩ min.
Dielectric strength: 1000 V, 50 Hz for 1 minute
