RS PRO Toggle Switch, Panel Mount, On-(On), SPDT, Solder Terminal
- RS Stock No.:
- 734-7117
- Brand:
- RS PRO
341 In stock for delivery within 1 working days
Added
Price Each
£2.05
(exc. VAT)
£2.46
(inc. VAT)
| Units | Per unit |
| 1 - 49 | £2.05 |
| 50 - 99 | £1.66 |
| 100 - 249 | £1.28 |
| 250 - 499 | £1.24 |
| 500 + | £1.20 |
- RS Stock No.:
- 734-7117
- Brand:
- RS PRO
Technical Reference
Legislation and Compliance
Product Details

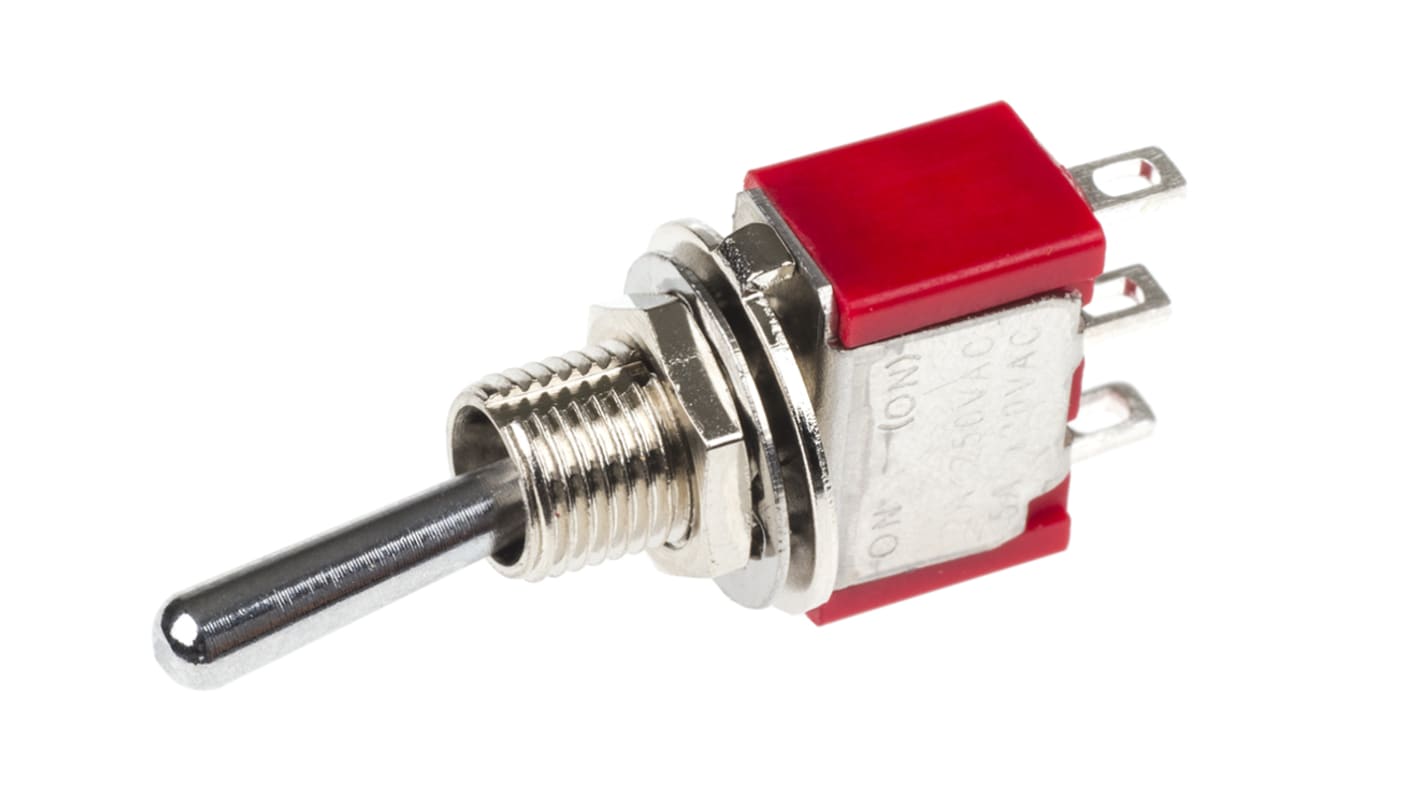

RS PRO SPDT Toggle Switch, On-(On), Panel Mounting
Want a latching switch that won't take up a lot of space on your control panel? This one from RS PRO is compact as it requires a panel cut-out diameter of only 6.35 mm to fit it.
The housing is made of stainless steel and the actuator is made of chrome-plated brass for durability and resistance to corrosion. This means the part is ideal for use on frequently used equipment in harsh environments. It also has a DAP (diallyl phthalate) case for electrical insulation and silver-plated brass contacts for good conductivity, ensuring a safe and reliable connection.
You'll commonly find this type of switch used on medical, instrumentation and telecommunication equipment. It's often used by hobbyists as well as professional electrical engineers and electronics manufacturers.
The housing is made of stainless steel and the actuator is made of chrome-plated brass for durability and resistance to corrosion. This means the part is ideal for use on frequently used equipment in harsh environments. It also has a DAP (diallyl phthalate) case for electrical insulation and silver-plated brass contacts for good conductivity, ensuring a safe and reliable connection.
You'll commonly find this type of switch used on medical, instrumentation and telecommunication equipment. It's often used by hobbyists as well as professional electrical engineers and electronics manufacturers.
Features and Benefits
- Actuator length of 10.41 mm
- Chromium-plated brass actuator material
- Single pole, double throw (SPDT) contact configuration
- Contact current rating of 5 A at 250 V AC
- Silver-plated brass contact material
- Contact resistance of 10 mΩ
- Operating temperature range of -30°C to +85°C
- Mechanical life of 40,000 cycles
- Panel mounting
- Panel cut out size of 6.35 mm (diameter)
- RoHS (Restriction of Hazardous Substances) and lead-free standards met
- On-(On) switch operation
- Solder terminal type
Specifications
Attribute | Value |
|---|---|
| Contact Configuration | SPDT |
| Switch Operation | On-(On) |
| Contact Current Rating | 5 A @ 250 V ac |
| Mounting Type | Panel Mount |
| Terminal Type | Solder |
| Panel Cut Out Diameter | 6.35mm |
| Actuator Length | 10.41mm |
| Actuator Material | Chromium Plated Brass |
| Panel Cut Out Size | 6.35mm |
| Contact Material | Silver Plated Brass |
| Contact Resistance | 0.01Ω |
| Minimum Operating Temperature | -30°C |
| Maximum Operating Temperature | +85°C |
| Mechanical Life | 40000Cycles |
| Operating Temperature Range | -30 → +85°C |
| Standards Met | RoHS & Lead Free |
