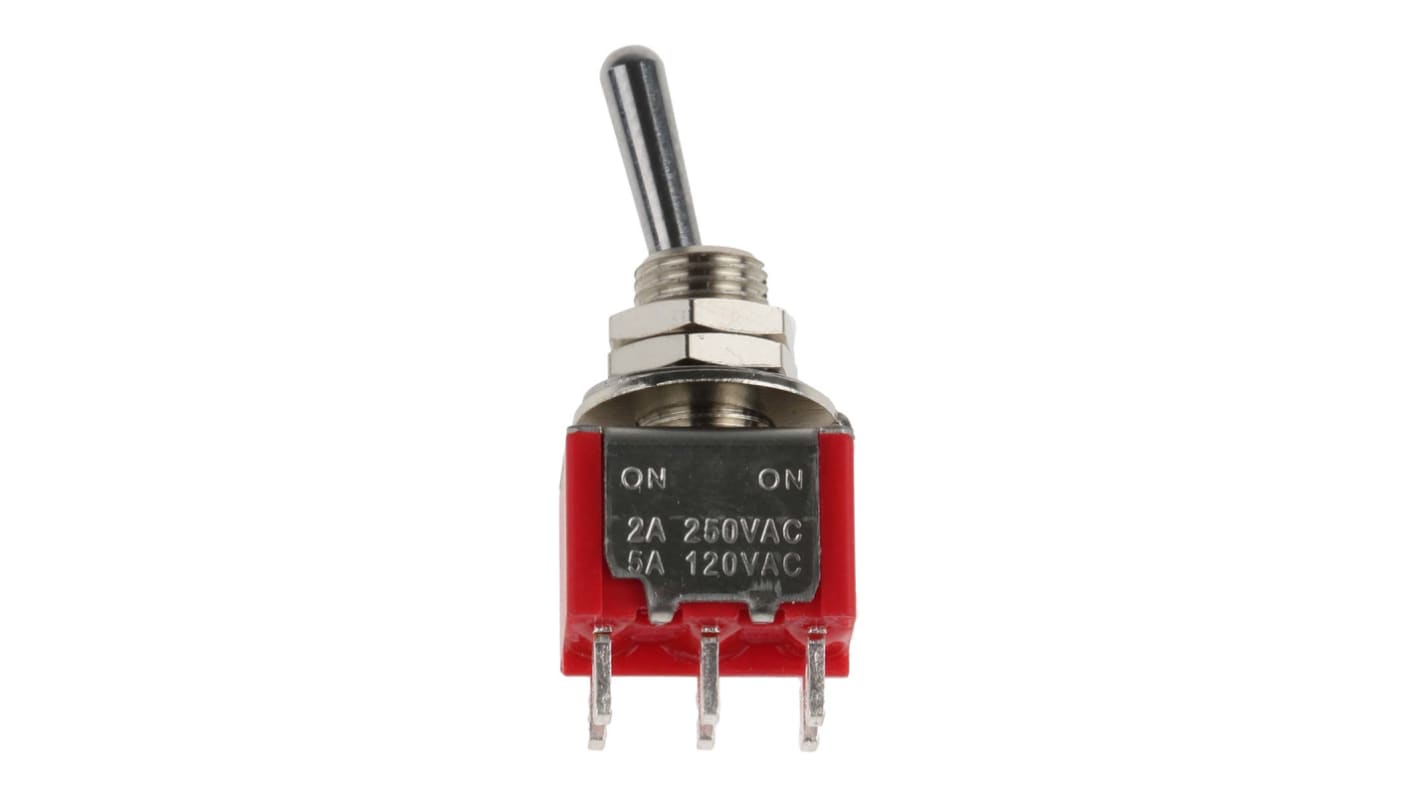

RS PRO Double Pole Double Throw (DPDT) Toggle Switch, Latching, Panel Mount

Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
Product Details

Toggle Switches, Miniature - RS Series

RS series of PCB mount miniature toggle switches with a low contact resistance and are available with either Gold (R) or Silver (Q) contact material. The RS series miniature toggle switches have a minimum insulation resistance of 1000MΩ and a minimum dielectric strength of 1000 Vrms.

Specifications
Attribute Value
Contact Configuration Double Pole Double Throw (DPDT)
Switch Operation Latching
Contact Current Rating 5 A @ 250 V ac
Mounting Type Panel Mount
Terminal Type Solder
Panel Cut Out Diameter 6.35mm
Actuator Length 10.41mm
Actuator Material Chromium Plated Brass
Contact Resistance 10mΩ
Minimum Operating Temperature -30°C
Mechanical Life 40000Cycles
Maximum Operating Temperature +85°C
Panel Cut Out Size 6.35mm
Operating Temperature Range -30 → +85°C
Contact Material Silver Plated Brass
Standards Met RoHS & Lead Free
