- RS Stock No.:
- 734-6805
- Brand:
- RS PRO
191 In stock - FREE next working day delivery available
38 available from Europe for delivery within 1 working day(s).
Added
Price Each
£8.39
(exc. VAT)
£10.07
(inc. VAT)
Units | Per unit |
1 - 49 | £8.39 |
50 - 99 | £6.71 |
100 - 249 | £5.26 |
250 - 499 | £5.03 |
500 + | £4.90 |
- RS Stock No.:
- 734-6805
- Brand:
- RS PRO
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- TW
Product Details

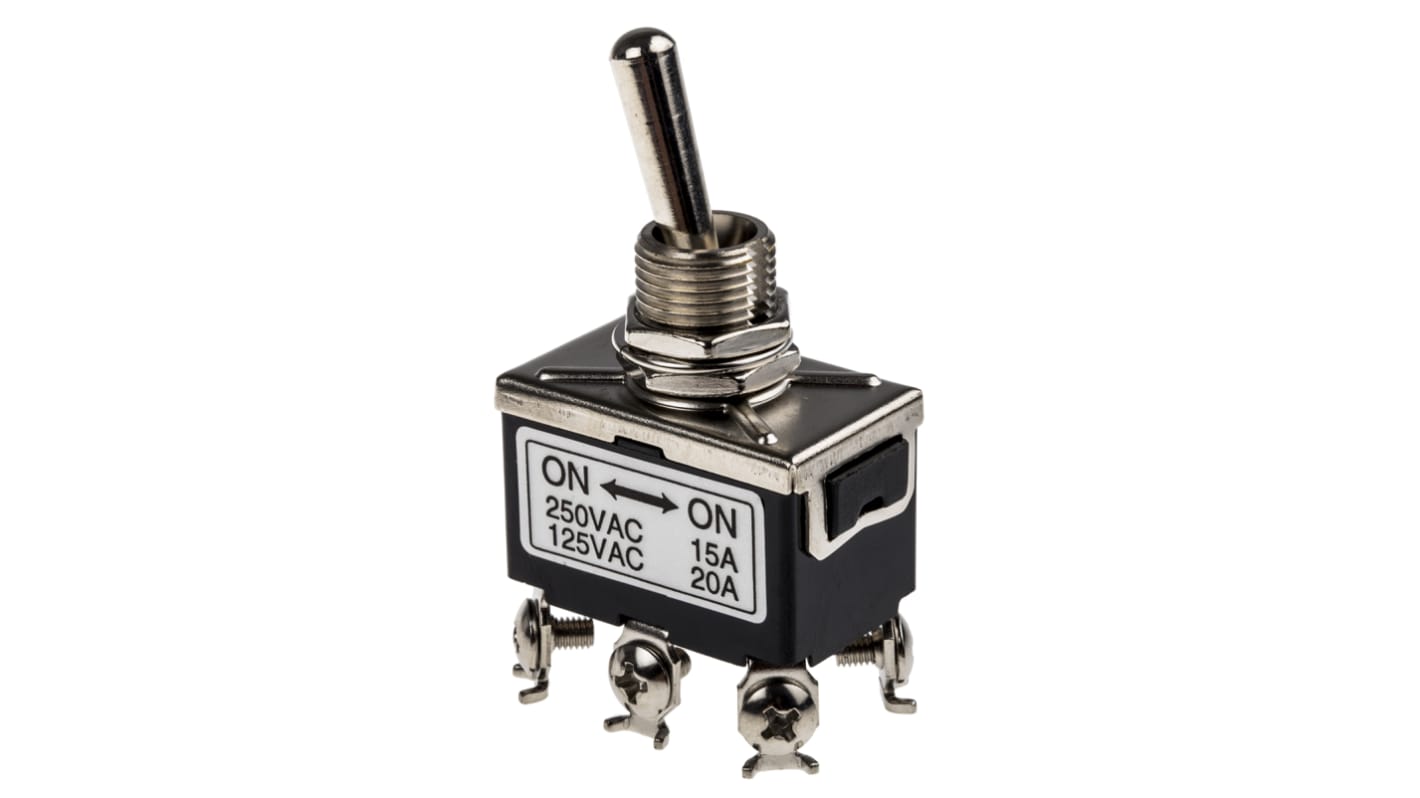

RS PRO DPDT Toggle Switch, Latching, Panel Mounting
Replacing a latching switch on your industrial machinery? Use this robust RS PRO toggle. It has six screw terminals that are quick to install on your control panel for a secure connection.
This is an On-On style double pole, double throw switch, so you can control two devices with one toggle. This toggle uses a latching function, so you don't need to hold it in position, keeping your hands free for operating other controls.
As this toggle switch can withstand high voltages of at least 1500 V AC, it's suitable for a range of commercial and industrial electric power units. Chemical processing, automotive and electronics industries use them. This latching switch meets American (ANSI/ESD S20.20:2014) and British (BS EN 61340-5-1:2007) safety standards for protection against electrostatic discharge.
This is an On-On style double pole, double throw switch, so you can control two devices with one toggle. This toggle uses a latching function, so you don't need to hold it in position, keeping your hands free for operating other controls.
As this toggle switch can withstand high voltages of at least 1500 V AC, it's suitable for a range of commercial and industrial electric power units. Chemical processing, automotive and electronics industries use them. This latching switch meets American (ANSI/ESD S20.20:2014) and British (BS EN 61340-5-1:2007) safety standards for protection against electrostatic discharge.
Features and Benefits
• Actuator length of 17 mm
• Double pole double throw (DPDT) contact configuration
• Contact current rating of 20 A at 28 V DC
• Contact resistance of 20 mΩ
• Panel mounting type
• Latching switch operation
• Screw terminal type
• Double pole double throw (DPDT) contact configuration
• Contact current rating of 20 A at 28 V DC
• Contact resistance of 20 mΩ
• Panel mounting type
• Latching switch operation
• Screw terminal type
Specifications
Attribute | Value |
---|---|
Contact Configuration | DPDT |
Switch Operation | On-(On) |
Contact Current Rating | 20 A @ 28 V dc |
Mounting Type | Panel Mount |
Terminal Type | Screw |
Actuator Length | 17mm |
Voltage Rating | 250 V, 125V |
Contact Resistance | 0.02Ω |
