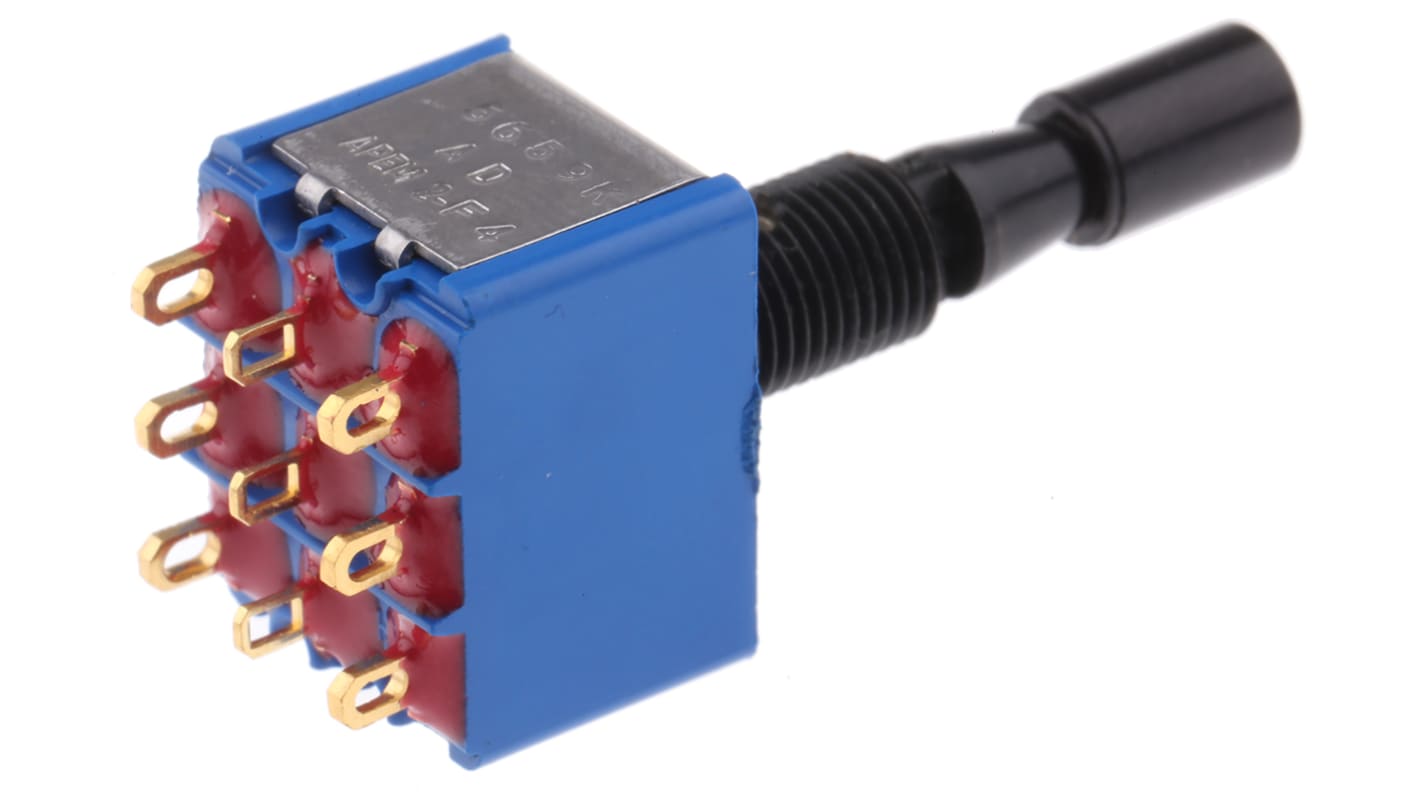

APEM Toggle Switch, Panel Mount, On-Off-On, 3PDT, Solder Lug Terminal, 30V dc

View all Toggle Switches
Bulk discount available

Subtotal (1 unit)*

£42.00

(exc. VAT)

£50.40

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 42 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 - 24£42.00
25 - 49£34.43
50 - 99£31.51
100 - 249£29.41
250 +£26.87

*price indicative

RS Stock No.:
692-5286
Mfr. Part No.:
5659ADBGK3V
Brand:
APEM
Find similar products by selecting one or more attributes.
Select all

Brand

APEM

Contact Configuration

3PDT

Switch Operation

On-Off-On

Contact Current Rating

4 A @ 30 V dc

Mounting Type

Panel Mount

Terminal Type

Solder Lug

Illuminated

No

Panel Cut Out Diameter

6.5mm

Actuator Length

15.1mm

Actuator Material

Nickel Plated Brass

Voltage Rating

30V dc

Panel Cut Out Size

6.5mm

Contact Material

Gold Plated Silver

Contact Resistance

10mΩ

Maximum Operating Temperature

+85°C

Mechanical Life

100000Operations

Minimum Operating Temperature

-40°C

Operating Temperature Range

-40 → +85°C

COO (Country of Origin):
FR

Toggle Switches, Standard Lever


Panel mount switches with a large variety of contact configurations
Solder lug termination. Bush thread 1/4 - 40UNS (6.35 - 4UNS)
Brass actuator and Diallyl Phthalate case
Panel cut-out 6.35 mm

Note

For biased switches '(on)' refers to momentary 'on' position

Approvals

UL; CSA; CECC; LNZ; GAM T1; QPL (Europe); MUAHAG; NATO

Approvals

UL; CSA; CECC; LNZ; GAM T1; (Europe); MUAHAG; NATO; VDE
