RND Toggle Switch, Panel Mount, On-On, 2 CO, Solder Lug Terminal, 28 V dc, 125 V ac
- RS Stock No.:
- 283-2569
- Distrelec Article No.:
- 301-03-414
- Mfr. Part No.:
- RND 210-00429
- Brand:
- RND
Subtotal (1 unit)*
£4.64
(exc. VAT)
£5.57
(inc. VAT)
FREE delivery for orders over £60.00
Limited stock
- Plus 266 left, shipping from 01 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £4.64 |
*price indicative
- RS Stock No.:
- 283-2569
- Distrelec Article No.:
- 301-03-414
- Mfr. Part No.:
- RND 210-00429
- Brand:
- RND
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RND | |
| Contact Configuration | 2 CO | |
| Product Type | Toggle Switch | |
| Switch Operation | On-On | |
| Switch Contact Current | 2, 5A | |
| Mount Type | Panel | |
| Terminal Type | Solder Lug | |
| Illuminated | No | |
| Panel Cutout Size | 6.3 mm | |
| Minimum Operating Temperature | 30°C | |
| Contact AC Voltage | 125V ac | |
| Contact DC Voltage | 28V dc | |
| Maximum Operating Temperature | 85°C | |
| Switch Configuration | On-On | |
| Height | 12.7mm | |
| Width | 12.7mm | |
| Length | 32.1mm | |
| Standards/Approvals | No | |
| Series | RND | |
| Mechanical Life | 50000Cycles | |
| Select all | ||
|---|---|---|
Brand RND | ||
Contact Configuration 2 CO | ||
Product Type Toggle Switch | ||
Switch Operation On-On | ||
Switch Contact Current 2, 5A | ||
Mount Type Panel | ||
Terminal Type Solder Lug | ||
Illuminated No | ||
Panel Cutout Size 6.3 mm | ||
Minimum Operating Temperature 30°C | ||
Contact AC Voltage 125V ac | ||
Contact DC Voltage 28V dc | ||
Maximum Operating Temperature 85°C | ||
Switch Configuration On-On | ||
Height 12.7mm | ||
Width 12.7mm | ||
Length 32.1mm | ||
Standards/Approvals No | ||
Series RND | ||
Mechanical Life 50000Cycles | ||
- COO (Country of Origin):
- TW

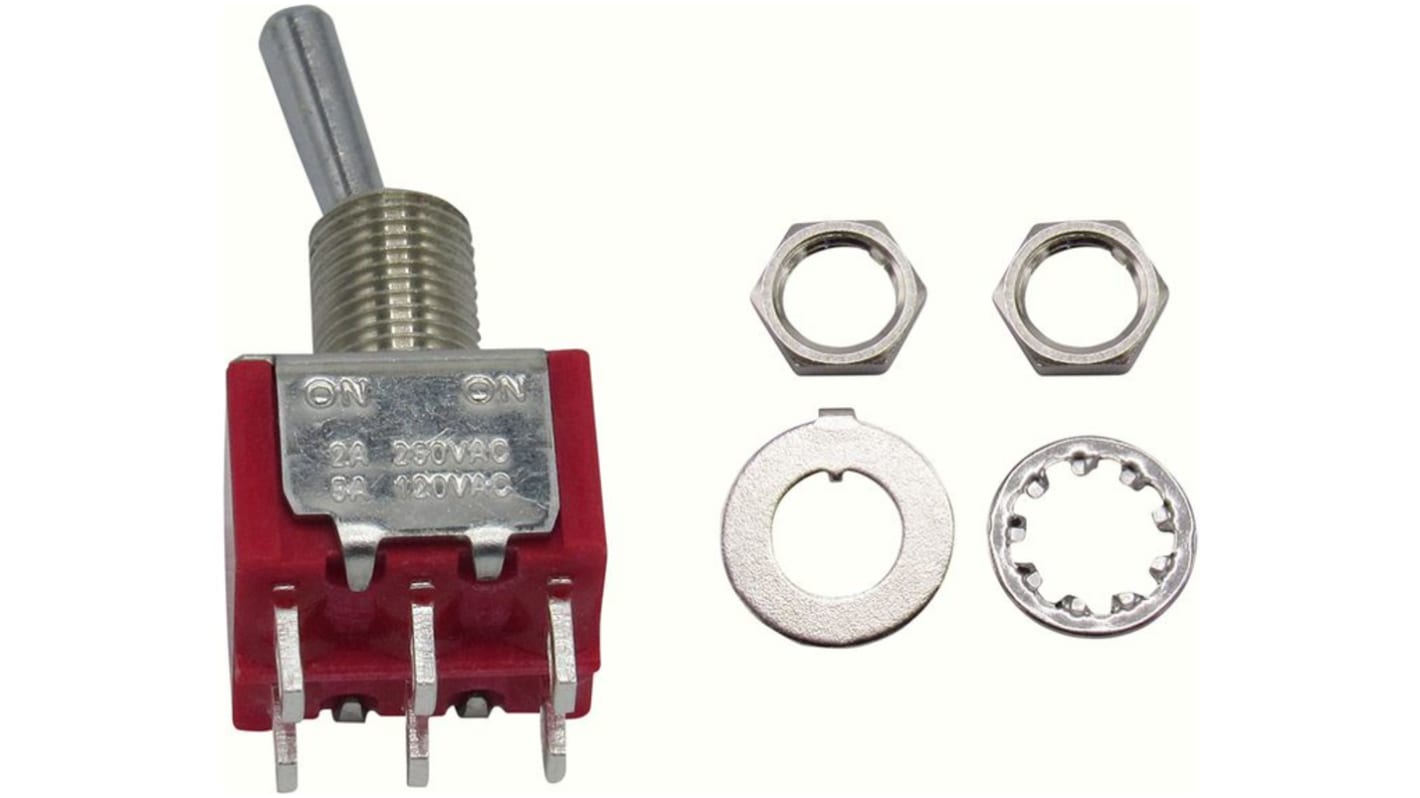

The Miniature toggle switch with a low contact resistance and with either gold or silver contact material. It includes 1x switch, 2x nuts, 1x locking washer and 1x locking ring.
10.4 mm high actuator
RoHS compliant
