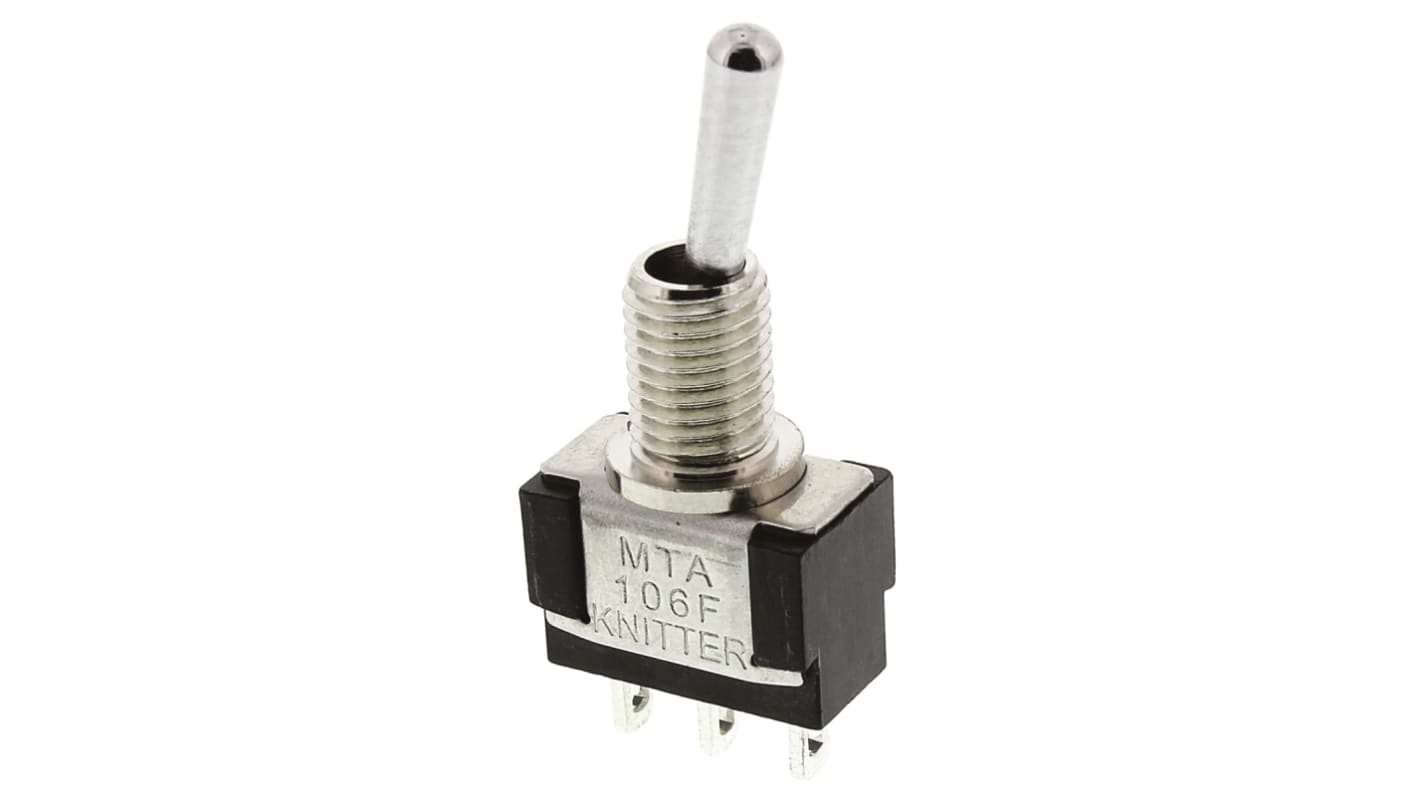

KNITTER-SWITCH Toggle Switch, Panel Mount, On-(On), SPDT, Solder Terminal

View all Toggle Switches

Subtotal (1 unit)*

£6.47

(exc. VAT)

£7.76

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • Plus 33 unit(s) shipping from 22 October 2025
  • Plus 22 unit(s) shipping from 22 October 2025
  • Plus 46 unit(s) shipping from 17 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +£6.47

*price indicative

RS Stock No.:
199-0904
Mfr. Part No.:
MTA 106 F
Brand:
KNITTER-SWITCH
Find similar products by selecting one or more attributes.
Select all

Brand

KNITTER-SWITCH

Contact Configuration

SPDT

Switch Operation

On-(On)

Contact Current Rating

4 A @ 30 V dc

Mounting Type

Panel Mount

Terminal Type

Solder

Actuator Length

10.5mm

Actuator Material

Copper Alloy

Contact Resistance

0.01Ω

Contact Material

Silver Plated Copper Alloy

Minimum Operating Temperature

-45°C

Operating Temperature Range

-45 → +140°C

Mechanical Life

200000Cycles

Maximum Operating Temperature

+140°C

COO (Country of Origin):
CN

Single Pole, Type MTA / STA


Miniature panel mount toggle switches
Copper alloy, silver plated solder tags
M6 x 0.75 bushing with locking plate, key 9 mm
Insulation resistance: > 1000 MΩ at 500 Vdc
Dielectric strength: 1500 V, 50 Hz for 1 minute
Chrome plated brass actuator and Diallyl Phthalate (UL 94 V-0) case

Note

For biased switches '(on)' refers to momentary 'on' position
