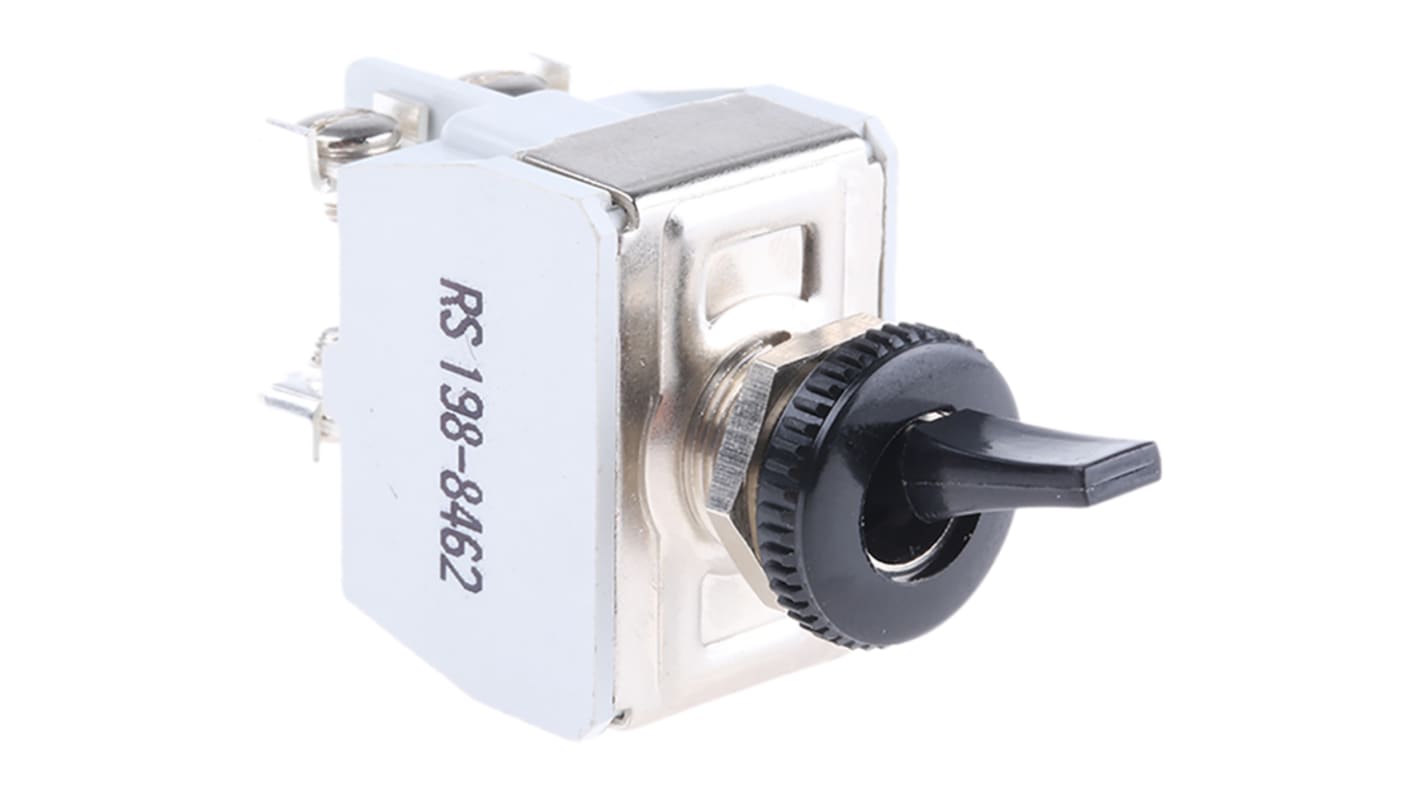

APEM Toggle Switch, Panel Mount, On-Off, DPST, Screw Terminal
- RS Stock No.:
- 198-8462
- Mfr. Part No.:
- 641SNH
- Brand:
- APEM
128 In stock - FREE next working day delivery available
2 available from Europe for delivery within 1 working day(s).
Added
Price Each
£19.08
(exc. VAT)
£22.90
(inc. VAT)
| Units | Per unit |
| 1 - 24 | £19.08 |
| 25 - 49 | £15.63 |
| 50 - 99 | £14.31 |
| 100 - 249 | £13.35 |
| 250 + | £12.21 |
- RS Stock No.:
- 198-8462
- Mfr. Part No.:
- 641SNH
- Brand:
- APEM
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- FR
Product Details
Toggle Switches, Std, 15A
Moulded body with silver plated contacts, screw terminals and flattened black toggle
Mounting bush 0.468 in dia., single locating slot
Nickel Plated Brass actuator with Black Polyamide toggle and Melamine/Polyester case
Silver/ Cadmium oxide contacts
Mounting bush 0.468 in dia., single locating slot
Nickel Plated Brass actuator with Black Polyamide toggle and Melamine/Polyester case
Silver/ Cadmium oxide contacts
Note
All have a contact resistance of 10mΩ or less
For biased switches '(on)' refers to momentary 'on' position
For biased switches '(on)' refers to momentary 'on' position
Approvals
UL recognised component, CSA certified
Approvals
UL recognised component, CSA certified
Specifications
Attribute | Value |
|---|---|
| Contact Configuration | DPST |
| Switch Operation | On-Off |
| Contact Current Rating | 10 A @ 24 V dc |
| Mounting Type | Panel Mount |
| Terminal Type | Screw |
| Panel Cut Out Diameter | 12.5mm |
| Actuator Length | 13.5mm |
| Actuator Material | Polyamide |
| Panel Cut Out Size | 12.5mm |
| Contact Resistance | 10mΩ |
| Contact Material | Silver Nickel Alloy |
| Maximum Operating Temperature | +55°C |
| Minimum Operating Temperature | -20°C |
| Mechanical Life | 10000Operations |
| Operating Temperature Range | -20 → +55°C |
