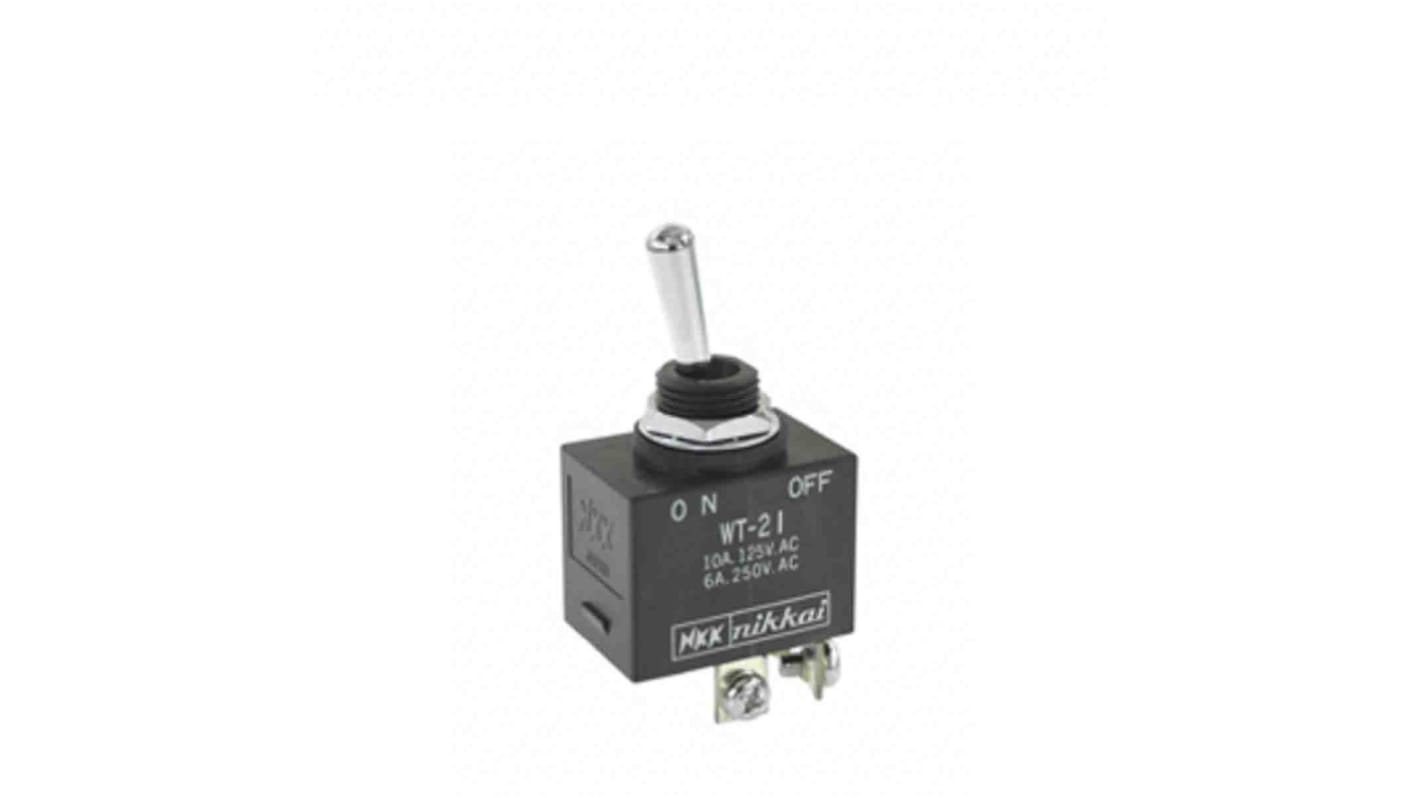

NKK Switches Toggle Switch, Panel Mount, On-Off, DPST, Screw Terminal, 250 V ac
- RS Stock No.:
- 196-0230
- Mfr. Part No.:
- WT21T
- Brand:
- NKK Switches
Bulk discount available
Subtotal (1 unit)*
£19.56
(exc. VAT)
£23.47
(inc. VAT)
Stock information currently inaccessible - Please check back later
Units | Per unit |
|---|---|
| 1 - 4 | £19.56 |
| 5 - 9 | £18.59 |
| 10 - 19 | £17.62 |
| 20 - 29 | £16.77 |
| 30 + | £15.92 |
*price indicative
- RS Stock No.:
- 196-0230
- Mfr. Part No.:
- WT21T
- Brand:
- NKK Switches
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | NKK Switches | |
| Product Type | Toggle Switch | |
| Contact Configuration | DPST | |
| Switch Operation | On-Off | |
| Switch Contact Current | 10A | |
| Mount Type | Panel | |
| Terminal Type | Screw | |
| IP Rating | IP67 | |
| Illuminated | No | |
| Panel Cutout Size | 12.5 | |
| Contact AC Voltage | 250V ac | |
| Minimum Operating Temperature | -30°C | |
| Actuator Length | 17.5mm | |
| Maximum Operating Temperature | 70°C | |
| Actuator Material | Brass | |
| Switch Configuration | On-Off | |
| Series | WT | |
| Standards/Approvals | UL, CSA | |
| Length | 57.7mm | |
| Width | 19.4mm | |
| Height | 28.8mm | |
| Mechanical Life | 50000Operations | |
| Select all | ||
|---|---|---|
Brand NKK Switches | ||
Product Type Toggle Switch | ||
Contact Configuration DPST | ||
Switch Operation On-Off | ||
Switch Contact Current 10A | ||
Mount Type Panel | ||
Terminal Type Screw | ||
IP Rating IP67 | ||
Illuminated No | ||
Panel Cutout Size 12.5 | ||
Contact AC Voltage 250V ac | ||
Minimum Operating Temperature -30°C | ||
Actuator Length 17.5mm | ||
Maximum Operating Temperature 70°C | ||
Actuator Material Brass | ||
Switch Configuration On-Off | ||
Series WT | ||
Standards/Approvals UL, CSA | ||
Length 57.7mm | ||
Width 19.4mm | ||
Height 28.8mm | ||
Mechanical Life 50000Operations | ||
- COO (Country of Origin):
- CN
The NKK Switches Environmentally Sealed Toggle is of Standard Round Actuator type. Its Ingress Protection is IP67 - Dust Tight and it is waterproof. It has a Bushing Thread of M12 x 1.
Epoxy Sealed Terminals
Termination Style Screw Terminal
