- RS Stock No.:
- 320-972
- Mfr. Part No.:
- 5666A9
- Brand:
- APEM
487 In stock - FREE next working day delivery available
47 available from Europe for delivery within 1 working day(s).
Added
Price Each
£17.22
(exc. VAT)
£20.66
(inc. VAT)
Units | Per unit |
1 - 24 | £17.22 |
25 - 49 | £14.11 |
50 - 99 | £12.91 |
100 - 249 | £12.06 |
250 + | £11.02 |
- RS Stock No.:
- 320-972
- Mfr. Part No.:
- 5666A9
- Brand:
- APEM
Legislation and Compliance
- COO (Country of Origin):
- FR
Product Details

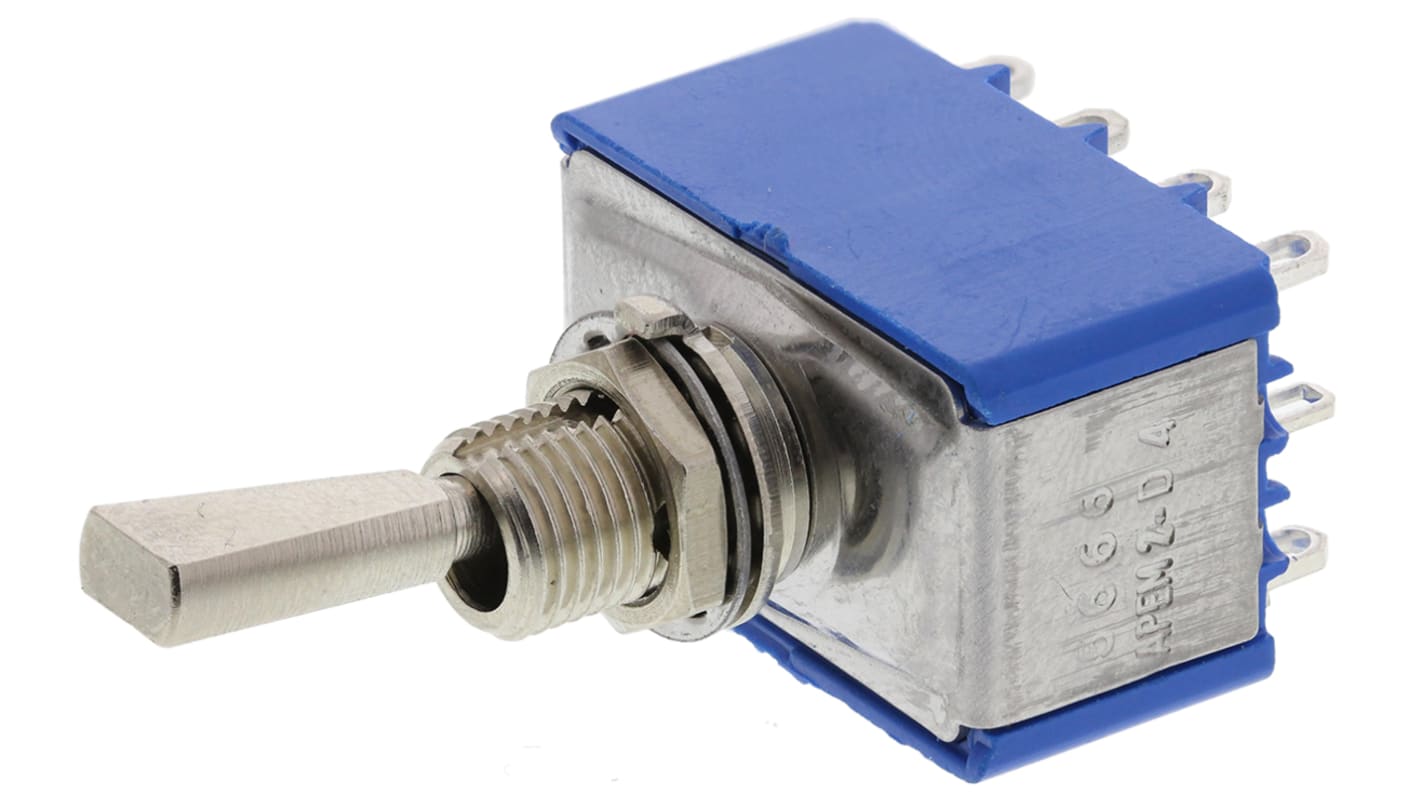

Toggle Switches, Flat Lever
Panel mount switches with a large variety of contact configurations
Solder lug termination. Bush thread 1/4 - 40UNS (6.35 - 4UNS)
Brass actuator and Diallyl Phthalate case
Silver contacts
Panel cut-out 6.5 mm
Solder lug termination. Bush thread 1/4 - 40UNS (6.35 - 4UNS)
Brass actuator and Diallyl Phthalate case
Silver contacts
Panel cut-out 6.5 mm
Note
For biased switches '(on)' refers to momentary 'on' position
Approvals
UL; CSA; CECC; LNZ; GAM T1; QPL (Europe); MUAHAG; NATO
Approvals
UL; CSA; CECC; LNZ; GAM T1; (Europe); MUAHAG; NATO; VDE
Specifications
Attribute | Value |
---|---|
Contact Configuration | 4PDT |
Switch Operation | On-On |
Contact Current Rating | 4 A @ 30 V dc |
Mounting Type | Panel Mount |
Terminal Type | Solder |
Actuator Length | 11.4mm |
Actuator Material | Brass |
Contact Material | Silver |
Contact Resistance | 0.01Ω |
Mechanical Life | 100000Operations |
Maximum Operating Temperature | +85°C |
Minimum Operating Temperature | -40°C |
Operating Temperature Range | -40 → +85°C |
- RS Stock No.:
- 320-972
- Mfr. Part No.:
- 5666A9
- Brand:
- APEM
