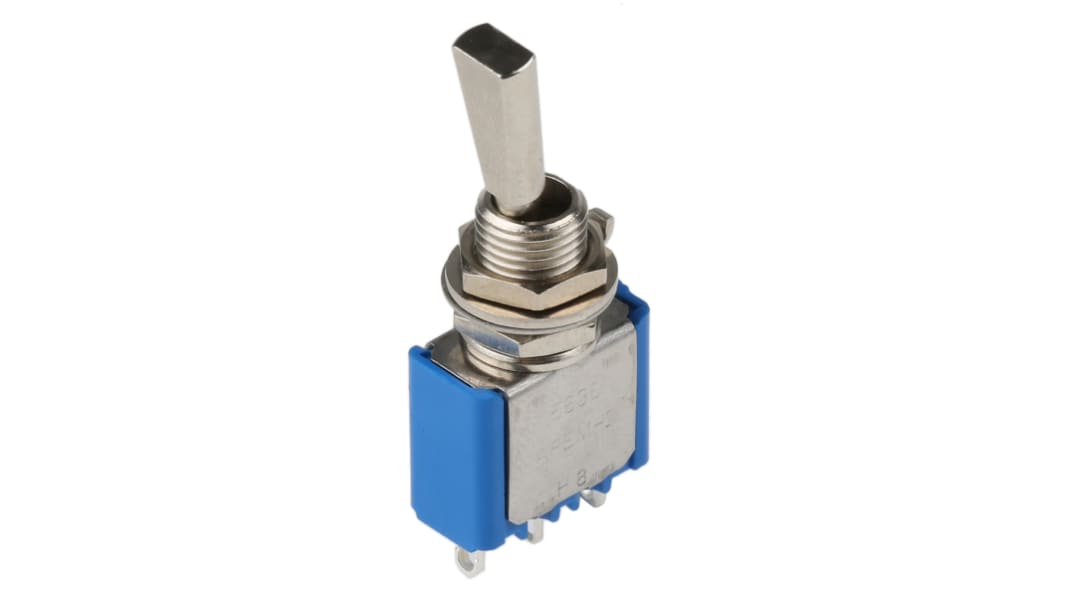

APEM Toggle Switch, Panel Mount, On-On, SPDT, Solder Terminal, 30 V dc, 250 V ac

View all Toggle Switches
Bulk discount available

Subtotal (1 unit)*

£5.19

(exc. VAT)

£6.23

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 2,152 unit(s) ready to ship
  • Plus 100 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 - 24£5.19
25 - 49£4.25
50 - 99£3.90
100 - 249£3.64
250 +£3.33

*price indicative

RS Stock No.:
320-916
Distrelec Article No.:
303-99-182
Mfr. Part No.:
5636A9
Brand:
APEM
Find similar products by selecting one or more attributes.
Select all

Brand

APEM

Contact Configuration

SPDT

Product Type

Toggle Switch

Switch Operation

On-On

Switch Contact Current

4 A

Mount Type

Panel

Terminal Type

Solder

Illuminated

No

Panel Cutout Size

6.5 mm

Contact AC Voltage

250V ac

Actuator Length

11.4mm

Contact DC Voltage

30V dc

Minimum Operating Temperature

-40°C

Actuator Material

Brass

Maximum Operating Temperature

85°C

Switch Configuration

On-On

Standards/Approvals

UL, RoHS, CSA, CECC

Series

5000

Length

13.2mm

Height

34.2mm

Width

7 mm

Mechanical Life

100000Operations

COO (Country of Origin):
FR

Toggle Switches, Flat Lever


Panel mount switches with a large variety of contact configurations

Solder lug termination. Bush thread 1/4 - 40UNS (6.35 - 4UNS)

Brass actuator and Diallyl Phthalate case

Silver contacts

Panel cut-out 6.5 mm

Note

For biased switches '(on)' refers to momentary 'on' position

Approvals

UL; CSA; CECC; LNZ; GAM T1; QPL (Europe); MUAHAG; NATO
