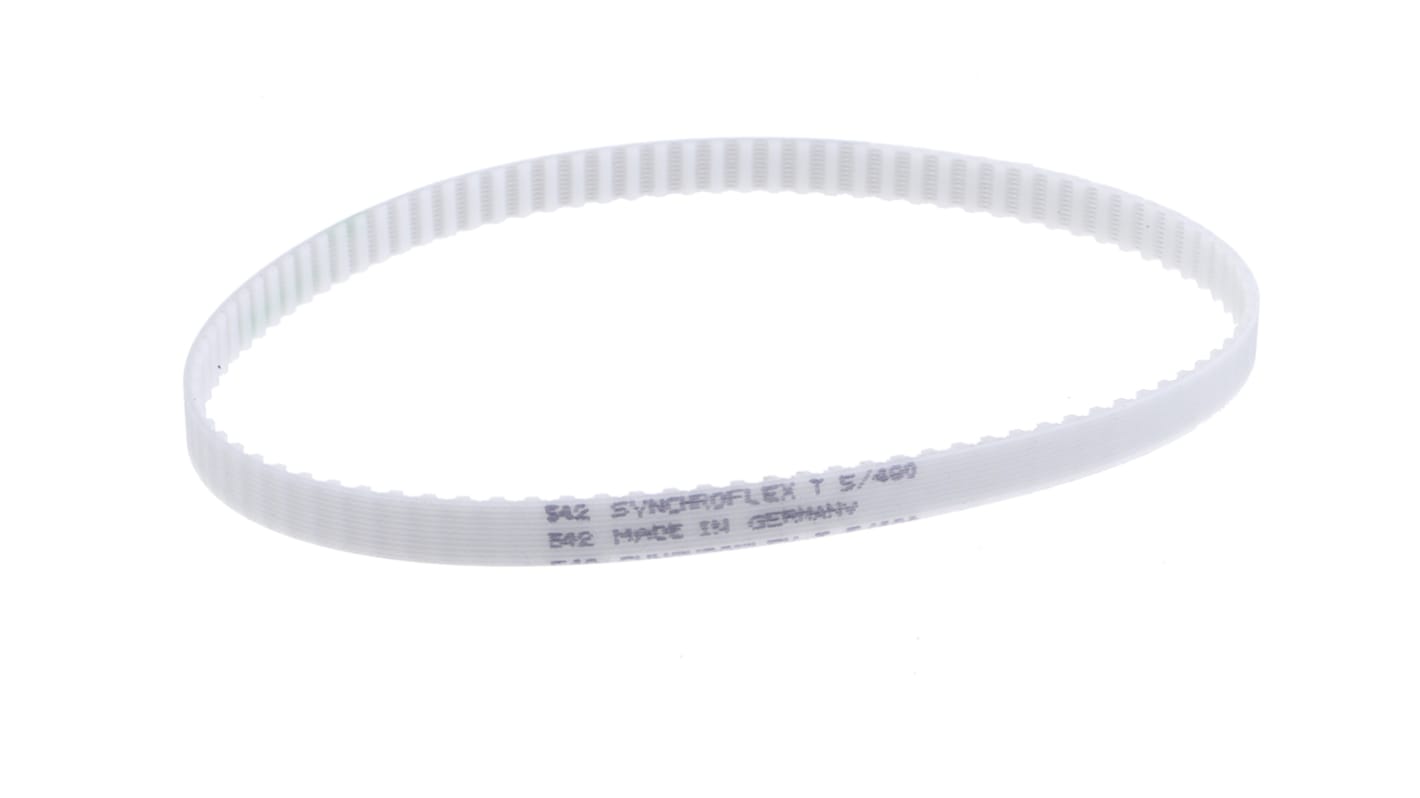

Contitech 10 / T5 / 480 SS, Timing Belt, 96 Teeth, 480mm Length X 10mm Width

  • RS Stock No. 474-5555
  • Mfr. Part No. 10 / T5 / 480 SS
  • Brand Contitech
Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): DE
Product Details

Metric Pitch Timing Belts – Contitech Syncroflex®

Wear-resistant polyurethane contilan belt with high grade wire tension members. Resulting bond gives high flank load capacity combined with low elastic elongation. Suitable for all kinds of drives because of flexibility of belt material and high flexural strength of the steel tension members.

Belt speed up to 80m/s
Up to 40000rpm
Temperature range -30°C to +80°C
Efficient up to 98%
Maintenance-free
Resistant to oils, grease and petrol
Power rating 0.5kW (2.5mm pitch)
Power rating 5.0kW (5mm pitch)

//media.rs-online.com/t_line/L286426-07.gif
//media.rs-online.com/t_line/LD745753-03.gif
Specifications
Attribute Value
Length 480mm
Width 10mm
Pitch 5mm
Number of Teeth 96
Material Polyurethane
Maximum Speed 80m/s
Tooth Height 1.2mm
Minimum Operating Temperature -30°C
Maximum Operating Temperature +80°C
17 In stock - FREE next working day delivery available
Price Each
£ 8.41
(exc. VAT)
£ 10.09
(inc. VAT)
Units
Per unit
1 - 4
£8.41
5 - 9
£8.07
10 - 24
£7.90
25 +
£7.74
