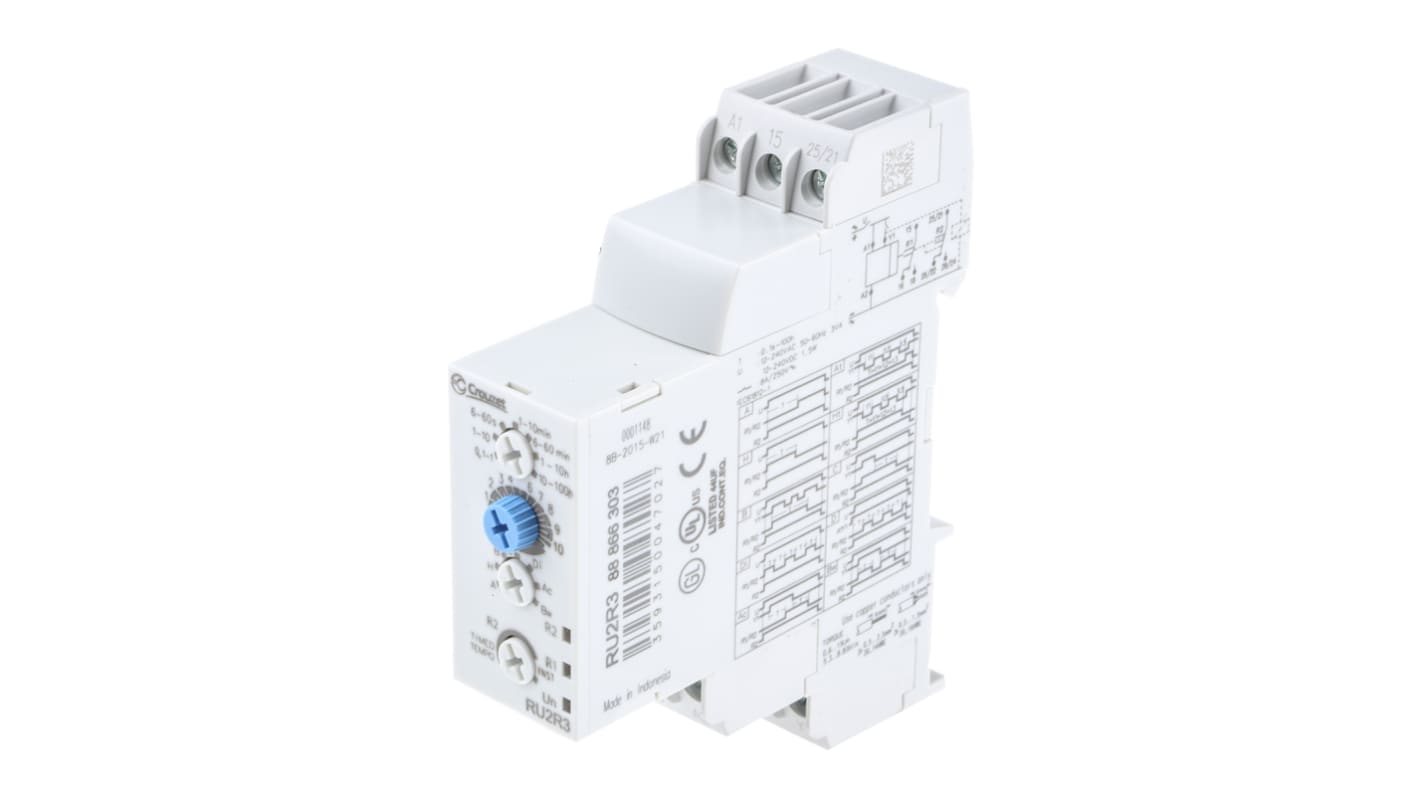

Crouzet DIN Rail Mount Timer Relay, 12 → 240V ac/dc, 2-Contact, 0.1 s → 100h
- RS Stock No.:
- 837-7480
- Mfr. Part No.:
- 88866303
- Brand:
- Crouzet
Discontinued
- RS Stock No.:
- 837-7480
- Mfr. Part No.:
- 88866303
- Brand:
- Crouzet
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Crouzet | |
| Supply Voltage | 12 → 240V ac/dc | |
| Mounting Type | DIN Rail | |
| Time Range | 0.1 s → 100h | |
| Number of Contacts | 2 | |
| Number of Timer Functions | Multi Function | |
| Time Increment | Hours, Minutes, Seconds | |
| Switch Configuration | 2 C/O | |
| Terminal Type | Screw | |
| Width | 90mm | |
| Power Supply | External | |
| Depth | 77mm | |
| Maximum Operating Temperature | +60°C | |
| Length | 22.5mm | |
| Minimum Operating Temperature | -20°C | |
| Contact Material | Silver Nickel | |
| Select all | ||
|---|---|---|
Brand Crouzet | ||
Supply Voltage 12 → 240V ac/dc | ||
Mounting Type DIN Rail | ||
Time Range 0.1 s → 100h | ||
Number of Contacts 2 | ||
Number of Timer Functions Multi Function | ||
Time Increment Hours, Minutes, Seconds | ||
Switch Configuration 2 C/O | ||
Terminal Type Screw | ||
Width 90mm | ||
Power Supply External | ||
Depth 77mm | ||
Maximum Operating Temperature +60°C | ||
Length 22.5mm | ||
Minimum Operating Temperature -20°C | ||
Contact Material Silver Nickel | ||
- COO (Country of Origin):
- ID
Crouzet RU2R & RX2R Multifunction Timer
Premium range of multifunction timers which provide the user with a dynamic multi-range and multi-voltage product to ensure your application is covered
7 timing ranges supported offering timer functions from 1 second to up to 100 hours
Available in various voltages ranging from 12-240V AC/DC
Can be programmed for multi-function or mono-function
LED status indication for easy recognition
Simple screw terminal connections which support cable cross sectional areas from 0.5 - 3.3mm² single core and for quick installation
Available in various voltages ranging from 12-240V AC/DC
Can be programmed for multi-function or mono-function
LED status indication for easy recognition
Simple screw terminal connections which support cable cross sectional areas from 0.5 - 3.3mm² single core and for quick installation
Standards
CE, UL, cUL, CSA, GL
Multifunction
