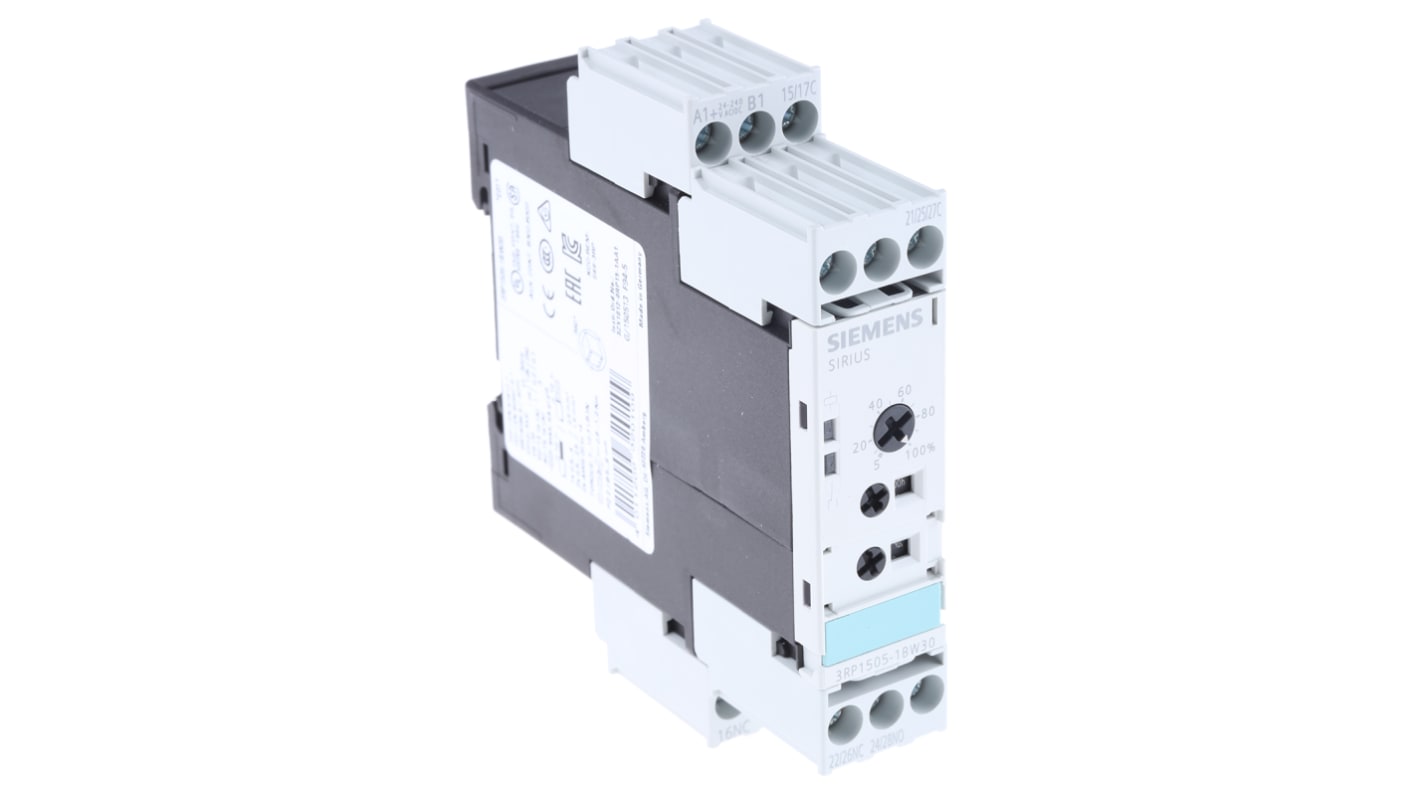

Siemens DIN Rail Mount Timer Relay, 24 → 240V ac/dc, 2-Contact, 0.5 → 10min, DPDT

View all Timer Relays
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.

Alternative

This product is not currently available. Here is our alternative recommendation.

presentation
Siemens 3RP25 Series DIN Rail Mount Timer Relay, 12 → 240V ac/dc, 2-Contact, 1 s → 100h, DPDT
RS Stock No.
831-6003

Each

£141.25

(exc. VAT)

£169.50

(inc. VAT)

RS Stock No.:
746-5126
Mfr. Part No.:
3RP1505-1BW30
Brand:
Siemens
Find similar products by selecting one or more attributes.
Select all

Brand

Siemens

Supply Voltage

24 → 240V ac/dc

Mounting Type

DIN Rail

Time Range

0.5 → 10min

Number of Contacts

2

Number of Timer Functions

Multi Function

Contact Configuration

DPDT

Time Increment

Minutes

Maximum Voltage

250 V dc, 400V ac

Switch Configuration

DPDT

Terminal Type

Screw

Power Supply

External

Width

22.5mm

Minimum Voltage

24V ac/dc

Length

83mm

Depth

90mm

COO (Country of Origin):
DE

Siemens SIRIUS 3RP15 - Multifunction Timer Relay


Multifunction timing relays SIRIUS 3RP15 are used in control, starting, and protective circuits for all switching operations involving time delays. They guarantee a high level of functionality and a high repeat accuracy of timer settings.

Multifunction
LED for indicating timing relay on voltage
LED for indicating relay switched
Function selector switch
Time setting range selector switch
22.5mm wide housing and compact design
DIN rail mounting

Siemens Multi-function Timer Relay


The Siemens 3RP1 series multi-function timer relay is a compact equipment with high precision. It performs different delay functions like ON delay, instantaneous contact ON delay, passing make contact, instantaneous passing makes contact, flashing symmetrically starting with interval, instantaneous symmetrically flashing starting with interval and star-delta circuit. Other functions involve additive ON delay with control signal, additive instantaneous ON delay with control signal, passing break contact, instantaneous passing break contact, pulse shaping with control signal, instantaneous pulse shaping with control signal, OFF delay, and off/on instantaneous delay with control signal in the range of 0.5 minutes to 10 minutes. This timer relay is enabled with a comprehensive range of timing to suit a wide variety of applications. This device satisfies all requirements like reliability, shock resistance, as well as standards governing interference immunity and suppression. Its affordability, optimum space management, and high performance make it ideal for a wide range of applications in process control environments.

Features and Benefits


DPDT 2C/O contact configuration relay with output 3A at 250VAC
Multi supply voltage range 24VAC/VDC to 240VAC/VDC for added flexibility
15 time setting ranges
Recovery time of 150 milliseconds
16 selectable functions supported
LED for indicating timing relay on voltage
LED for indicating relay switched
Function selector switch
22.5mm wide housing
High functionality and excellent repetition accuracy of the selected operating time
Screw terminal type

Applications


Textiles
Chemical industries
Mining
Irrigation
Raw material handling
Food and beverages
Industrial process control

Certifications


IP20 rated
CCC certified
CSA certified
EAC certified
CE certified
UL approved
IEC 61000-4-2
IEC 61000-4-3
IEC 61000-4-4
IEC 61000-4-5
IEC 204-2
EN 61000-6-2
EN 61000-6-4
IEC 60068-2-27
IEC 60664
