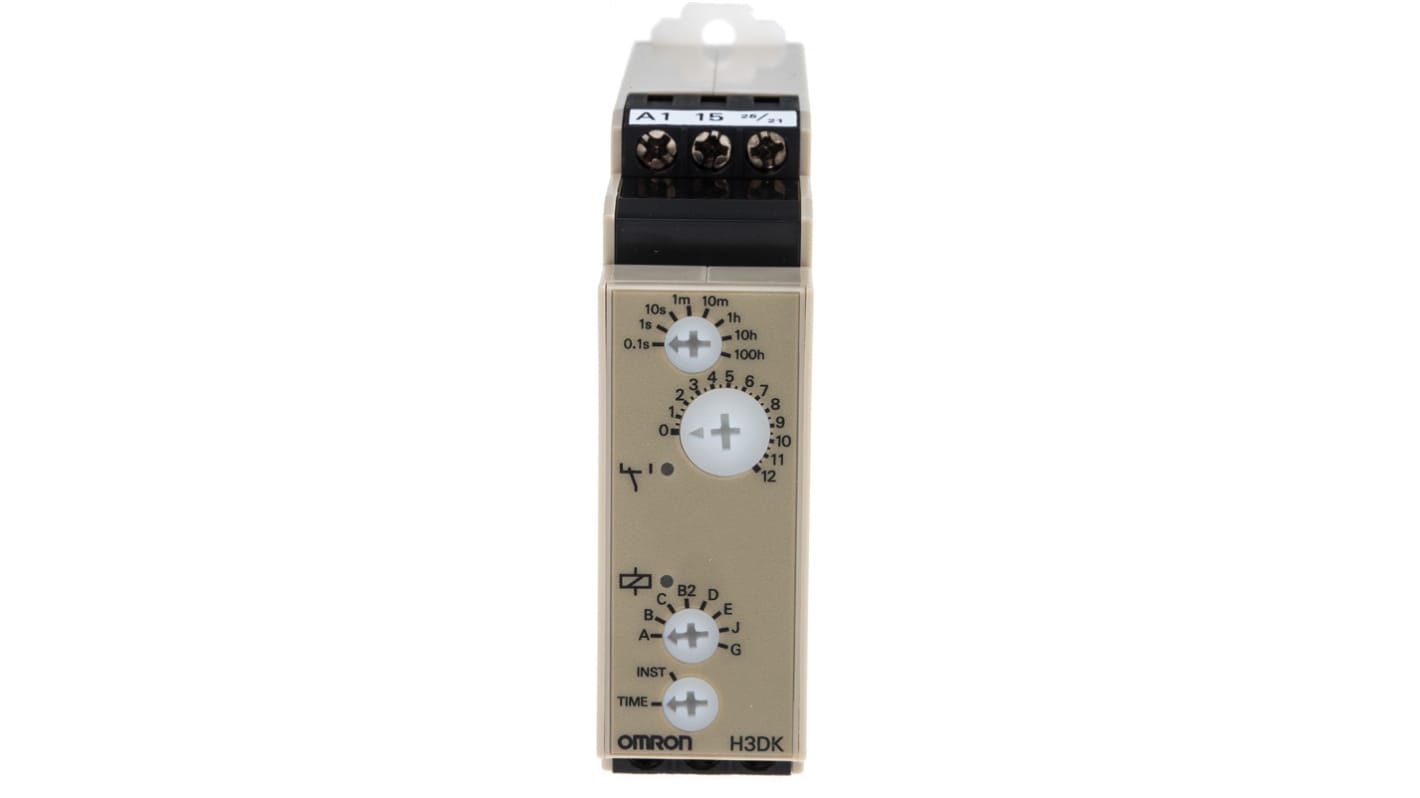

Omron H3DK Series DIN Rail Mount Timer Relay, 24 → 240V ac/dc, 2-Contact, 0.1 s → 1200 h, DPDT
- RS Stock No.:
- 733-4959
- Mfr. Part No.:
- H3DK-M2 AC/DC24-240
- Brand:
- Omron
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£75.45
(exc. VAT)
£90.54
(inc. VAT)
- RS Stock No.:
- 733-4959
- Mfr. Part No.:
- H3DK-M2 AC/DC24-240
- Brand:
- Omron
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Omron | |
| Supply Voltage | 24 → 240V ac/dc | |
| Mounting Type | DIN Rail | |
| Mode of Operation | Flicker OFF Start, Flicker ON Start, Interval, OFF Delay, ON Delay, ON/OFF Delay, One Shot Output | |
| Time Range | 0.1 s → 1200 h | |
| Number of Contacts | 2 | |
| Number of Timer Functions | Multi Function | |
| Contact Configuration | DPDT | |
| Time Increment | Hours, Minutes, Seconds | |
| Maximum Current | 5A | |
| Maximum Voltage | 30 V dc, 250V ac | |
| Switch Configuration | DPDT | |
| Terminal Type | Screw | |
| Minimum Voltage | 24V ac/dc | |
| Width | 22.5mm | |
| Power Supply | Internal | |
| Series | H3DK | |
| Length | 89.4mm | |
| Depth | 100mm | |
| Maximum Operating Temperature | +55°C | |
| Contact Material | Ag Alloy | |
| Minimum Operating Temperature | -20°C | |
Select all | ||
|---|---|---|
Brand Omron | ||
Supply Voltage 24 → 240V ac/dc | ||
Mounting Type DIN Rail | ||
Mode of Operation Flicker OFF Start, Flicker ON Start, Interval, OFF Delay, ON Delay, ON/OFF Delay, One Shot Output | ||
Time Range 0.1 s → 1200 h | ||
Number of Contacts 2 | ||
Number of Timer Functions Multi Function | ||
Contact Configuration DPDT | ||
Time Increment Hours, Minutes, Seconds | ||
Maximum Current 5A | ||
Maximum Voltage 30 V dc, 250V ac | ||
Switch Configuration DPDT | ||
Terminal Type Screw | ||
Minimum Voltage 24V ac/dc | ||
Width 22.5mm | ||
Power Supply Internal | ||
Series H3DK | ||
Length 89.4mm | ||
Depth 100mm | ||
Maximum Operating Temperature +55°C | ||
Contact Material Ag Alloy | ||
Minimum Operating Temperature -20°C | ||
- COO (Country of Origin):
- ID
OMRON Timer Relay, 5A Maximum Current Rating, Screw Terminals - H3DK Series - H3DK-M2 AC/DC24-240
Stop or start up machinery at preset times with this timer relay from OMRON. To keep your setup streamlined, it has a DPDT configuration that lets you control two circuits simultaneously. Screw termination means you can set it up in a jiffy, and achieve a solid hold, without needing specialised tools. An impulse withstand voltage of 3kV takes care of safety by protecting against power surges. Thanks to a supply voltage range between 24 and 240V AC/DC, this versatile option is compatible with commonly used equipment such as alarm and lighting systems.
Features & Benefits
• Mechanical lifespan of 10 million cycles for long-lasting performance
• Weighs just 120g, so it puts minimal strain on your equipment
• IP30 rating means it's protected from tools and wires greater than 2.5mm
• Power-off time delay of 100ms enables your machinery shuts down quickly in the event of a hazard
• Weighs just 120g, so it puts minimal strain on your equipment
• IP30 rating means it's protected from tools and wires greater than 2.5mm
• Power-off time delay of 100ms enables your machinery shuts down quickly in the event of a hazard
Applications
• Manufacturing industry
• Food and beverage production
• Oil and gas plants
• Food and beverage production
• Oil and gas plants
How many operating modes does this relay have?
The component has the eight modes – ON delay, flicker OFF start, flicker ON start, signal ON/OFF delay, signal OFF delay, interval, signal ON/OFF delay and one-shot mode. These let you configure equipment to meet the needs of your wider system.
