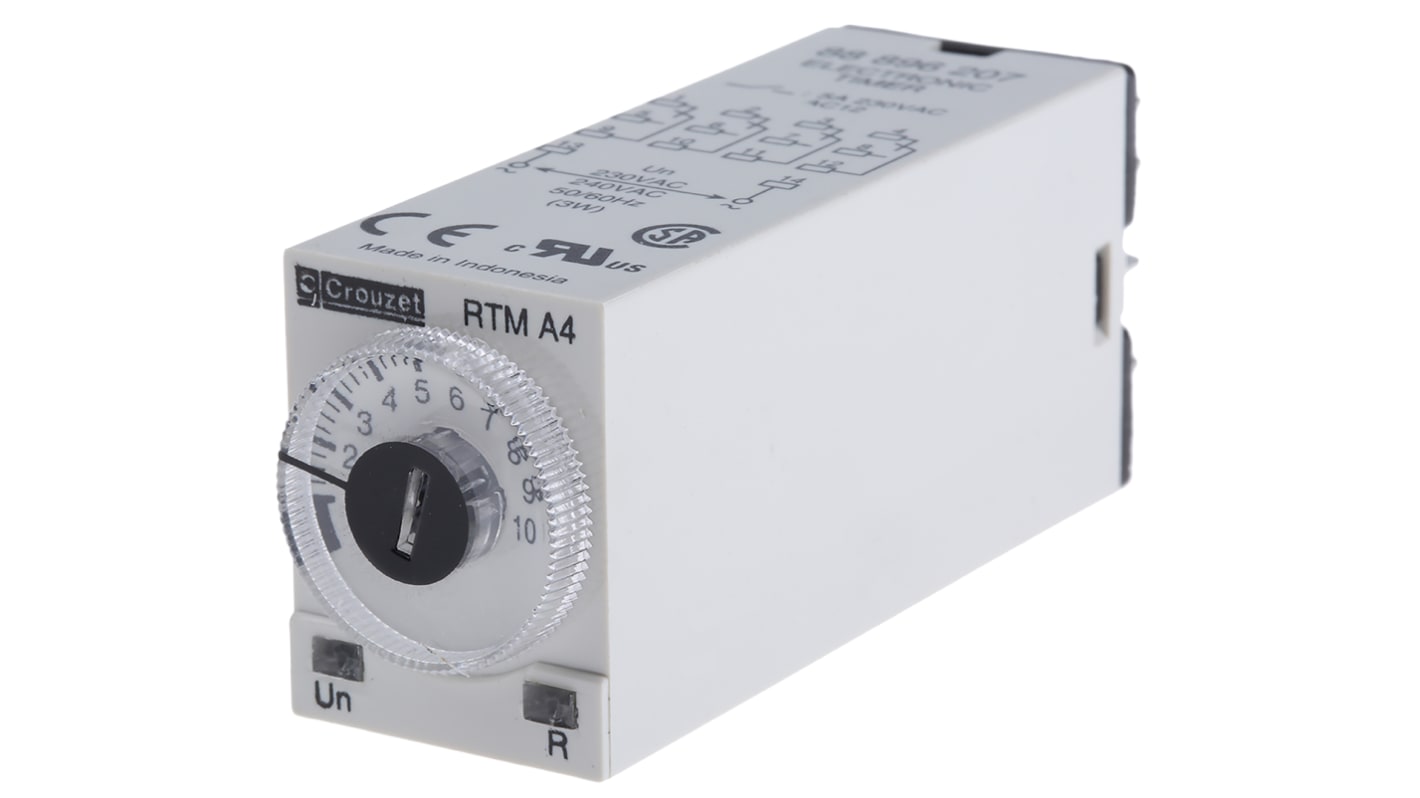

Crouzet DIN Rail Mount Timer Relay, 230 → 240V ac, 4-Contact, 0.1 s → 100h, 1-Function
- RS Stock No.:
- 433-4032
- Mfr. Part No.:
- 88896207
- Brand:
- Crouzet
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£58.59
(exc. VAT)
£70.31
(inc. VAT)
- RS Stock No.:
- 433-4032
- Mfr. Part No.:
- 88896207
- Brand:
- Crouzet
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Crouzet | |
| Supply Voltage | 230 → 240V ac | |
| Mounting Type | DIN Rail | |
| Time Range | 0.1 s → 100h | |
| Number of Contacts | 4 | |
| Number of Timer Functions | Single | |
| Time Increment | Hours, Seconds | |
| Maximum Voltage | 240V ac | |
| Switch Configuration | 4P-NO/NC | |
| Power Supply | External | |
| Minimum Voltage | 230V ac | |
| Maximum Operating Temperature | +60°C | |
| Minimum Operating Temperature | -20°C | |
Select all | ||
|---|---|---|
Brand Crouzet | ||
Supply Voltage 230 → 240V ac | ||
Mounting Type DIN Rail | ||
Time Range 0.1 s → 100h | ||
Number of Contacts 4 | ||
Number of Timer Functions Single | ||
Time Increment Hours, Seconds | ||
Maximum Voltage 240V ac | ||
Switch Configuration 4P-NO/NC | ||
Power Supply External | ||
Minimum Voltage 230V ac | ||
Maximum Operating Temperature +60°C | ||
Minimum Operating Temperature -20°C | ||
- COO (Country of Origin):
- ID
RTM Series
Function - 111
An instantaneous setting is available for testing
Screwdriver adjustable timer settings
Excellent noise resistance
8 and 14 pin rectangular format
An instantaneous setting is available for testing
Screwdriver adjustable timer settings
Excellent noise resistance
8 and 14 pin rectangular format
Approvals
UL, C-UL
Crouzet Single-Function Timer Relay
The Crouzet single-function timer relay is a compact device with a solid-state output and an option of connecting an external power supply to the control input. It performs the function of providing delay ranging between 0.1 seconds to 100 hours.
Features and Benefits
• Multiple timing ranging between 1 second to 10 seconds, 10 seconds to 1 minute, 1 minute to 10 minutes, 10 minutes to 1 hour, 1 hour to 10 hours, 10 hours to 100 hours
• 4 timed changeover relay output of 5A
• Multi-voltage supply options ranging between 230VAC to 240VAC
• Screw or spring terminals
• LED status indicator (relay version)
• Possibility of external load connection in parallel to the control input
• 3-wire PNP sensor compatible
• 4 timed changeover relay output of 5A
• Multi-voltage supply options ranging between 230VAC to 240VAC
• Screw or spring terminals
• LED status indicator (relay version)
• Possibility of external load connection in parallel to the control input
• 3-wire PNP sensor compatible
Applications
•
Textiles
• Chemical industry
• Mining
• Irrigation
• Raw material handling
• Food and beverages
• Industrial process control
Textiles
• Chemical industry
• Mining
• Irrigation
• Raw material handling
• Food and beverages
• Industrial process control
Certifications
•
IP20 rated
• IP40 rated
• IP50 rated
• IEC/EN 61812-1
• IEC/EN 61000-6-1
• IEC/EN 61000-6-2
• IEC/EN 61000-6-3
• IEC/EN 61000-6-4
• CE certified
• UL approved
• cUL certified
• CSA certified
• GL certified
IP20 rated
• IP40 rated
• IP50 rated
• IEC/EN 61812-1
• IEC/EN 61000-6-1
• IEC/EN 61000-6-2
• IEC/EN 61000-6-3
• IEC/EN 61000-6-4
• CE certified
• UL approved
• cUL certified
• CSA certified
• GL certified
