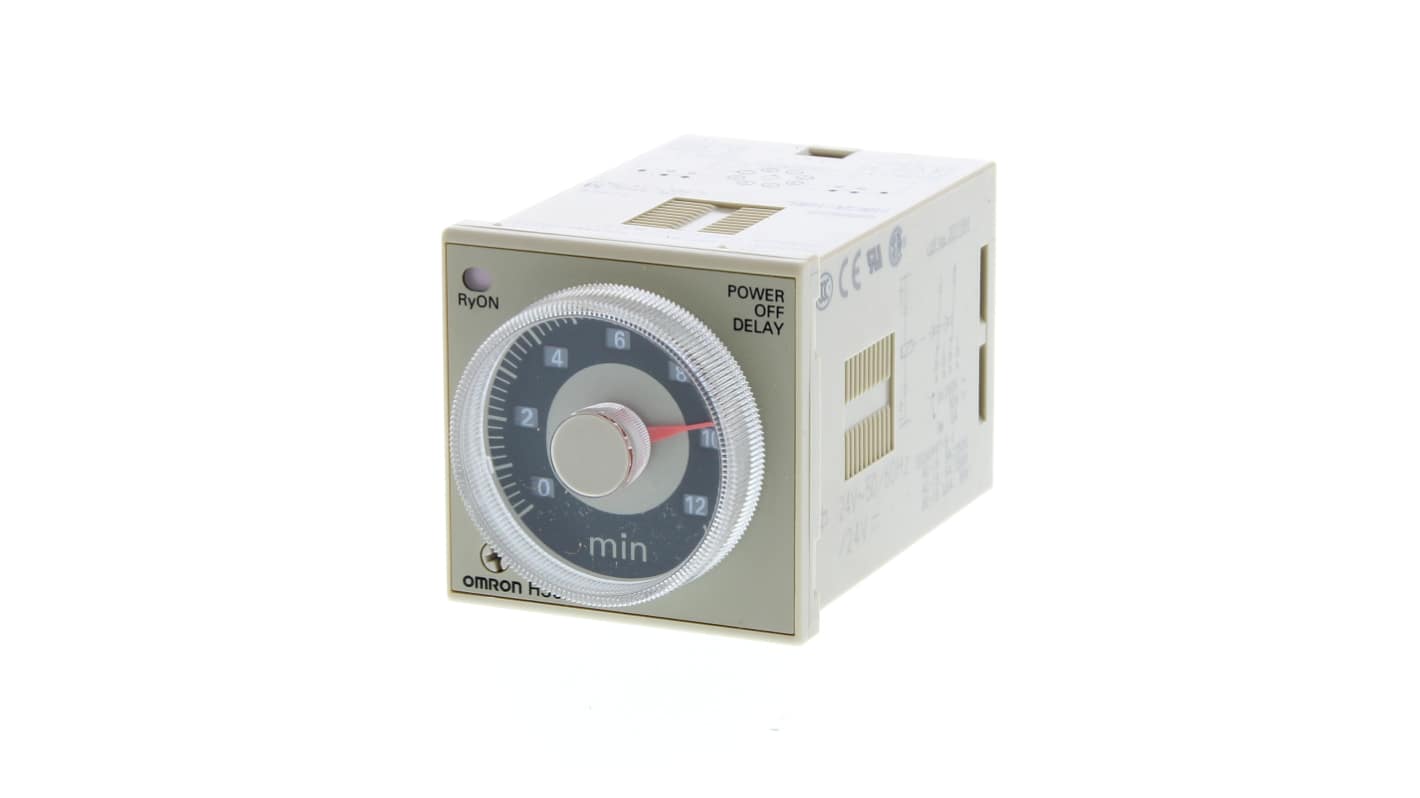

Omron H3CR Series DIN Rail, Panel Mount Timer Relay, 100 → 120V ac, 2-Contact, 0.05 → 12min, 1-Function
- RS Stock No.:
- 349-1279
- Mfr. Part No.:
- H3CR-H8L AC100-120 M
- Brand:
- Omron
9 In stock - FREE next working day delivery available
Added
Price Each
£89.54
(exc. VAT)
£107.45
(inc. VAT)
| Units | Per unit |
| 1 - 4 | £89.54 |
| 5 - 9 | £85.95 |
| 10 + | £83.28 |
- RS Stock No.:
- 349-1279
- Mfr. Part No.:
- H3CR-H8L AC100-120 M
- Brand:
- Omron
Technical Reference
Legislation and Compliance
Product Details
8 Pin - H3CR-H8LM
Function 311
Short behind panel depth
LED indication of power and contact status
Suitable DIN rail socket stock no. 329-468
45 x 45mm panel cut-out
Contact material AgCdO
Short behind panel depth
LED indication of power and contact status
Suitable DIN rail socket stock no. 329-468
45 x 45mm panel cut-out
Contact material AgCdO
Note
Not supplied with panel mount adaptor. Suitable adaptor available stock no. 342-916.
Approvals
UL, CSA. Conforms to EN 50081-1, EN 50082-2, EN61812-1, IEC 60664-1, EN 60947-5-1
True Off Delay
Specifications
Attribute | Value |
|---|---|
| Supply Voltage | 100 → 120V ac |
| Mounting Type | DIN Rail, Panel Mount |
| Mode of Operation | OFF Delay |
| Time Range | 0.05 → 12min |
| Number of Contacts | 2 |
| Number of Timer Functions | Single |
| Time Increment | Minutes, Seconds |
| Maximum Current | 5A |
| Maximum Voltage | 30 V dc, 250V ac |
| Switch Configuration | DPDT |
| Terminal Type | 8-Pin Connector |
| Power Supply | External |
| Width | 48mm |
| Series | H3CR |
| Length | 48mm |
| Maximum Operating Temperature | +55°C |
| Depth | 93mm |
| Minimum Operating Temperature | -10°C |
- RS Stock No.:
- 349-1279
- Mfr. Part No.:
- H3CR-H8L AC100-120 M
- Brand:
- Omron
