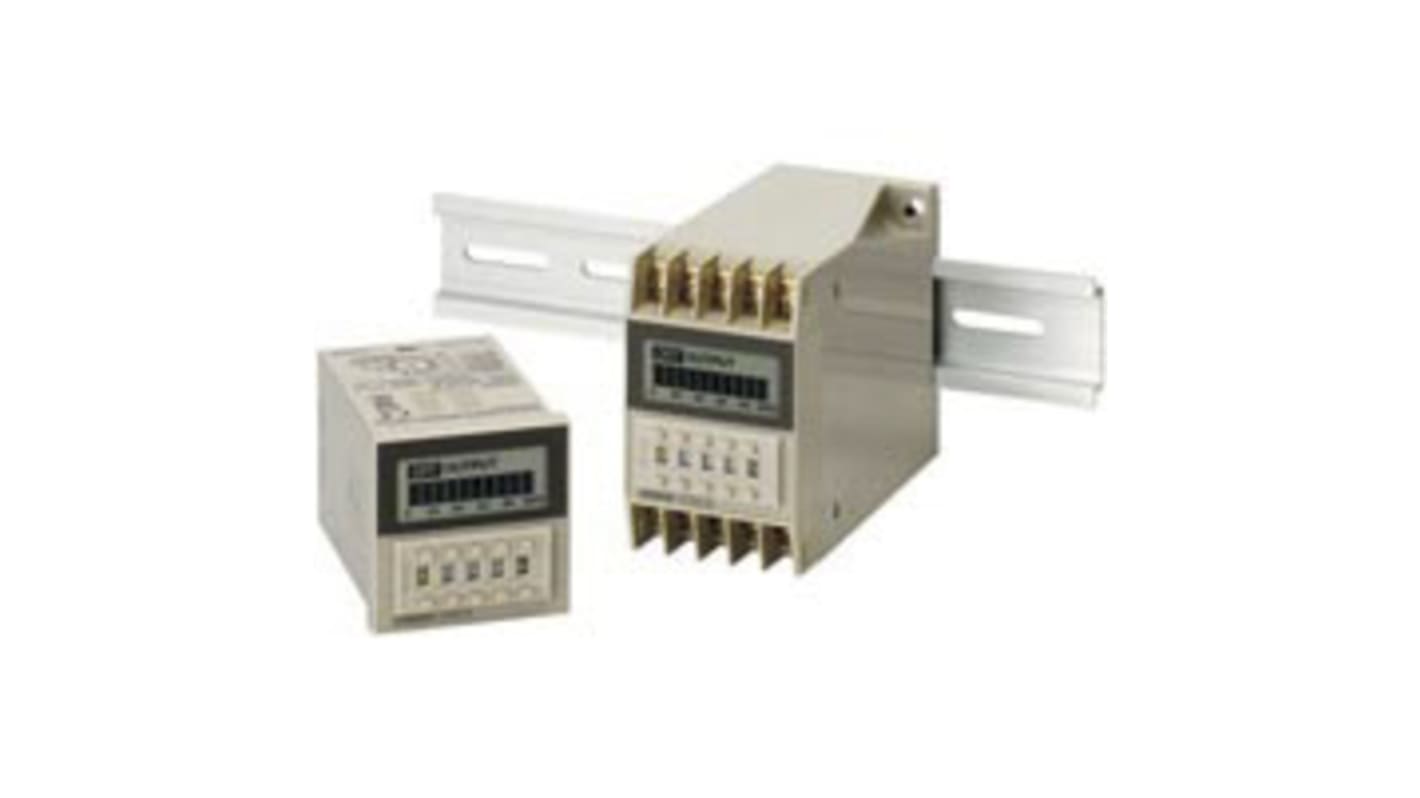

Omron H3CA Series DIN Rail Mount Timer Relay, 12 → 240 V dc, 24 → 240V ac, 2-Contact, 0.1 s →
- RS Stock No.:
- 177-0085
- Mfr. Part No.:
- H3CA-A-306 DIN
- Brand:
- Omron
Discontinued
- RS Stock No.:
- 177-0085
- Mfr. Part No.:
- H3CA-A-306 DIN
- Brand:
- Omron
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Omron | |
| Supply Voltage | 12 → 240 V dc, 24 → 240V ac | |
| Mounting Type | DIN Rail | |
| Mode of Operation | ON Delay | |
| Time Range | 0.1 s → 100h | |
| Number of Contacts | 2 | |
| Number of Timer Functions | Multi Function | |
| Contact Configuration | SPDT | |
| Time Increment | Hours, Minutes, Seconds | |
| Maximum Current | 3A | |
| Maximum Voltage | 240V ac/dc | |
| Terminal Type | Screw | |
| Switch Configuration | SPDT | |
| Power Supply | External | |
| Width | 48mm | |
| Minimum Voltage | 12 V dc, 24V ac | |
| Series | H3CA | |
| Minimum Current | 10mA | |
| Length | 48mm | |
| Maximum Operating Temperature | +55°C | |
| Depth | 89mm | |
| Minimum Operating Temperature | -10°C | |
| Select all | ||
|---|---|---|
Brand Omron | ||
Supply Voltage 12 → 240 V dc, 24 → 240V ac | ||
Mounting Type DIN Rail | ||
Mode of Operation ON Delay | ||
Time Range 0.1 s → 100h | ||
Number of Contacts 2 | ||
Number of Timer Functions Multi Function | ||
Contact Configuration SPDT | ||
Time Increment Hours, Minutes, Seconds | ||
Maximum Current 3A | ||
Maximum Voltage 240V ac/dc | ||
Terminal Type Screw | ||
Switch Configuration SPDT | ||
Power Supply External | ||
Width 48mm | ||
Minimum Voltage 12 V dc, 24V ac | ||
Series H3CA | ||
Minimum Current 10mA | ||
Length 48mm | ||
Maximum Operating Temperature +55°C | ||
Depth 89mm | ||
Minimum Operating Temperature -10°C | ||
- COO (Country of Origin):
- CN
DIN-sized (48 x 48, 45 x 75 mm) Timer with Digital Setting and LCD Display
Dual power supplies for free AC/DC.
Eight operation modes selectable with one unit.
Any desired time can be set digitally within a range from 0.1 seconds to 9,990 hrs.
Four external signal inputs.
ON/OFF indicator for control output and bar indicator for remaining time.
Eight operation modes selectable with one unit.
Any desired time can be set digitally within a range from 0.1 seconds to 9,990 hrs.
Four external signal inputs.
ON/OFF indicator for control output and bar indicator for remaining time.
