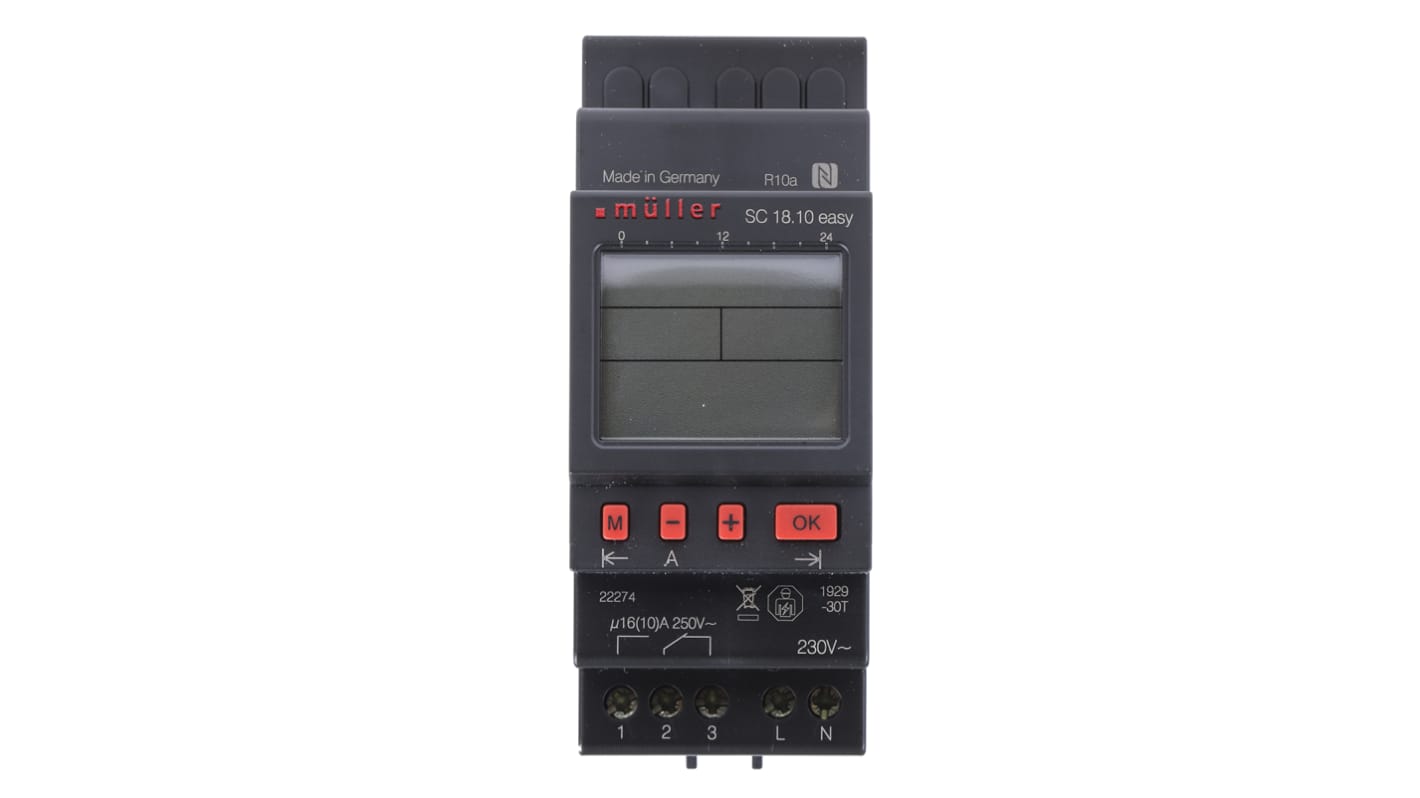

Muller Digital SC 18 DIN Rail Time Switch, 1-Channel 230 V

RS Stock No.:: 137-1055
Distrelec Article No.:: 301-00-065
Mfr. Part No.:: SC 18.10 easy
Brand:: Muller

Muller Digital SC 18 DIN Rail Time Switch, 1-Channel 230 V

Subtotal (1 unit)*

£63.79

(exc. VAT)

£76.55

(inc. VAT)

FREE delivery for orders over £50.00

In Stock

83 unit(s) ready to ship
Plus 16 unit(s) ready to ship from another location

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 +	£63.79

*price indicative

RS Stock No.:: 137-1055
Distrelec Article No.:: 301-00-065
Mfr. Part No.:: SC 18.10 easy
Brand:: Muller

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Muller
	Product Type	DIN Rail Time Switch
	Sub Type	Digital
	Number of Channels	1
	Units Measured	Minutes, Seconds, Days, Hours
	Segment Length	1min
	Terminal Type	Pull up
	Contact Configuration	SPDT
	Memory Spaces	56
	Maximum Supply Voltage	230V
	Battery Life	10year
	Series	SC 18
	Depth	63mm
	Height	90mm
	Standards/Approvals	DIN EN 60730-1/DIN EN 60730-2-7, RoHS, ISO 15693

	Select all
	Brand Muller
	Product Type DIN Rail Time Switch
	Sub Type Digital
	Number of Channels 1
	Units Measured Minutes, Seconds, Days, Hours
	Segment Length 1min
	Terminal Type Pull up
	Contact Configuration SPDT
	Memory Spaces 56
	Maximum Supply Voltage 230V
	Battery Life 10year
	Series SC 18
	Depth 63mm
	Height 90mm
	Standards/Approvals DIN EN 60730-1/DIN EN 60730-2-7, RoHS, ISO 15693

COO (Country of Origin):: DE

Muller Time Switch

The Finder interface relay module is an innovative, ultra-compact electromechanical device equipped with a 110VAC/DC coil and an SPDT 1C/O contact configuration. This narrow design interface relay works as a coupling element used to send control signals to and from a PLC. The high number of approvals make it useful for many applications around the world. It offers a high-density solution for smaller electrical cabinets and other industrial applications thus optimising your panel installation. This electromechanical relay module has a small footprint that makes it ideal for applications where space-saving is essential.

Features and Benefits

• DIN rail mounting

• Easy handling with quick and intuitive programming

• Large, clear, and illuminated display with one line text

• Time base is quartz

• Yearly program by extra switching times

• Exchangeable battery

• Minimum interval of 1 minute

• Switching capacity 16A per channel

• Permanent by date and time/holiday function

• Extra switching times ON, OFF, and pulse by date and time

• Manual permanent mode

• Manual override

• Fully automatic daylight saving time

• Elapsed time and pulse counter

• Security by PIN code

• Illuminated display

• Screw terminal connection

• Ambient temperatures range between -30°C and 55°C

Applications

• Ideal for outdoor and street lighting

• Control of lighting, heating and ventilation

Certifications

• IP20 rated

• DIN EN 60529
