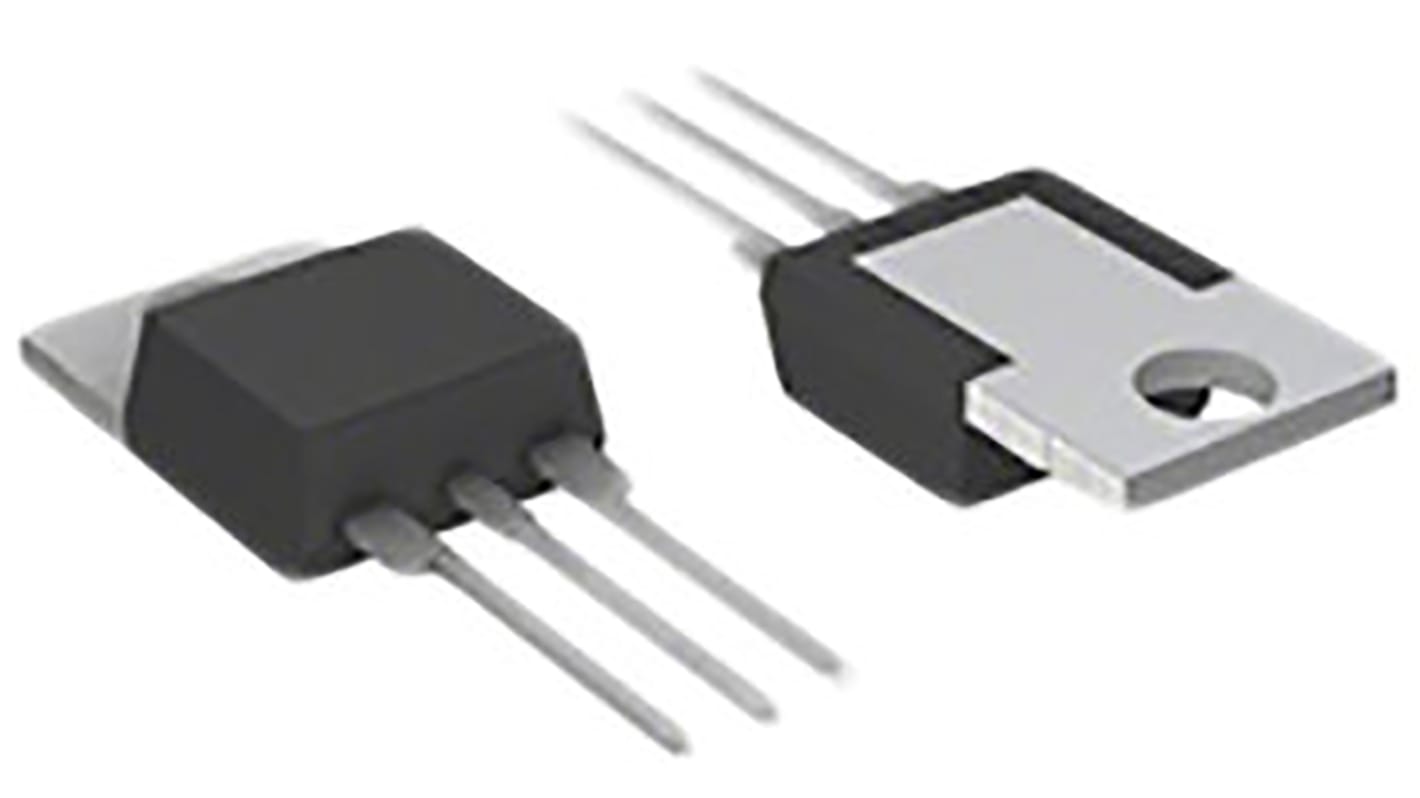

Littelfuse Q8010L4, TRIAC 800V, 10A 25 mA, 50 mA
- RS Stock No.:
- 878-1794
- Mfr. Part No.:
- Q8010L4
- Brand:
- Littelfuse
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 878-1794
- Mfr. Part No.:
- Q8010L4
- Brand:
- Littelfuse
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Littelfuse | |
| Rated Average On-State Current | 10A | |
| Package Type | TO-220 | |
| Repetitive Peak Reverse Voltage | 800V | |
| Surge Current Rating | 120A | |
| Mounting Type | Through Hole | |
| Maximum Gate Trigger Current | 25 mA, 50 mA | |
| Maximum Gate Trigger Voltage | 1.3V | |
| Maximum Holding Current | 35mA | |
| Pin Count | 3 | |
| Dimensions | 10.67 x 4.78 x 15.75mm | |
| Minimum Operating Temperature | -40 °C | |
| Peak On-State Voltage | 1.6V | |
| Repetitive Peak Off-State Current | 2mA | |
| Maximum Operating Temperature | +125 °C | |
Select all | ||
|---|---|---|
Brand Littelfuse | ||
Rated Average On-State Current 10A | ||
Package Type TO-220 | ||
Repetitive Peak Reverse Voltage 800V | ||
Surge Current Rating 120A | ||
Mounting Type Through Hole | ||
Maximum Gate Trigger Current 25 mA, 50 mA | ||
Maximum Gate Trigger Voltage 1.3V | ||
Maximum Holding Current 35mA | ||
Pin Count 3 | ||
Dimensions 10.67 x 4.78 x 15.75mm | ||
Minimum Operating Temperature -40 °C | ||
Peak On-State Voltage 1.6V | ||
Repetitive Peak Off-State Current 2mA | ||
Maximum Operating Temperature +125 °C | ||
- COO (Country of Origin):
- MX
TRIAC, Littelfuse
TRIACs
A range of TRIACs (Triodes for Alternating Current is also known as Bidirectional Thyristors). They are used in AC switching and control applications with current ratings from under 1A to 40A rms. A TRIAC makes a convenient switch for alternating current circuit.
