Vishay 2.4 kΩ Metal Film Metal Film Resistor 1 W 5 % PR01000102401JR500

View all Through Hole Resistors

Subtotal (1 tape of 5 units)*

£1.05

(exc. VAT)

£1.25

(inc. VAT)

Add to Basket
Select or type quantity
Orders below £50.00 (exc. VAT) cost £6.95.
Last RS stock
  • Final 4,865 unit(s), ready to ship
Units
Per unit
Per Tape*
5 +£0.21£1.05

*price indicative

Packaging Options:
RS Stock No.:
251-3703
Mfr. Part No.:
PR01000102401JR500
Brand:
Vishay
Find similar products by selecting one or more attributes.
Select all

Brand

Vishay

Product Type

Metal Film Resistor

Resistance

2.4kΩ

Power Rating

1W

Resistor Type

High Power

Tolerance ±

5%

Packaging

Reel

Axial/Radial

Axial

Voltage

350 V

Technology

Metal Film

Series

PR01

Automotive Standard

AEC-Q200

Package/Case

0207

Minimum Operating Temperature

-55°C

Pin Count

2

Maximum Operating Temperature

155°C

Standards/Approvals

RoHS

Length

6.5mm

Diameter

2.5 mm

Temperature Coefficient

±250 ppm/K

Lead Diameter

0.58mm

COO (Country of Origin):
IN

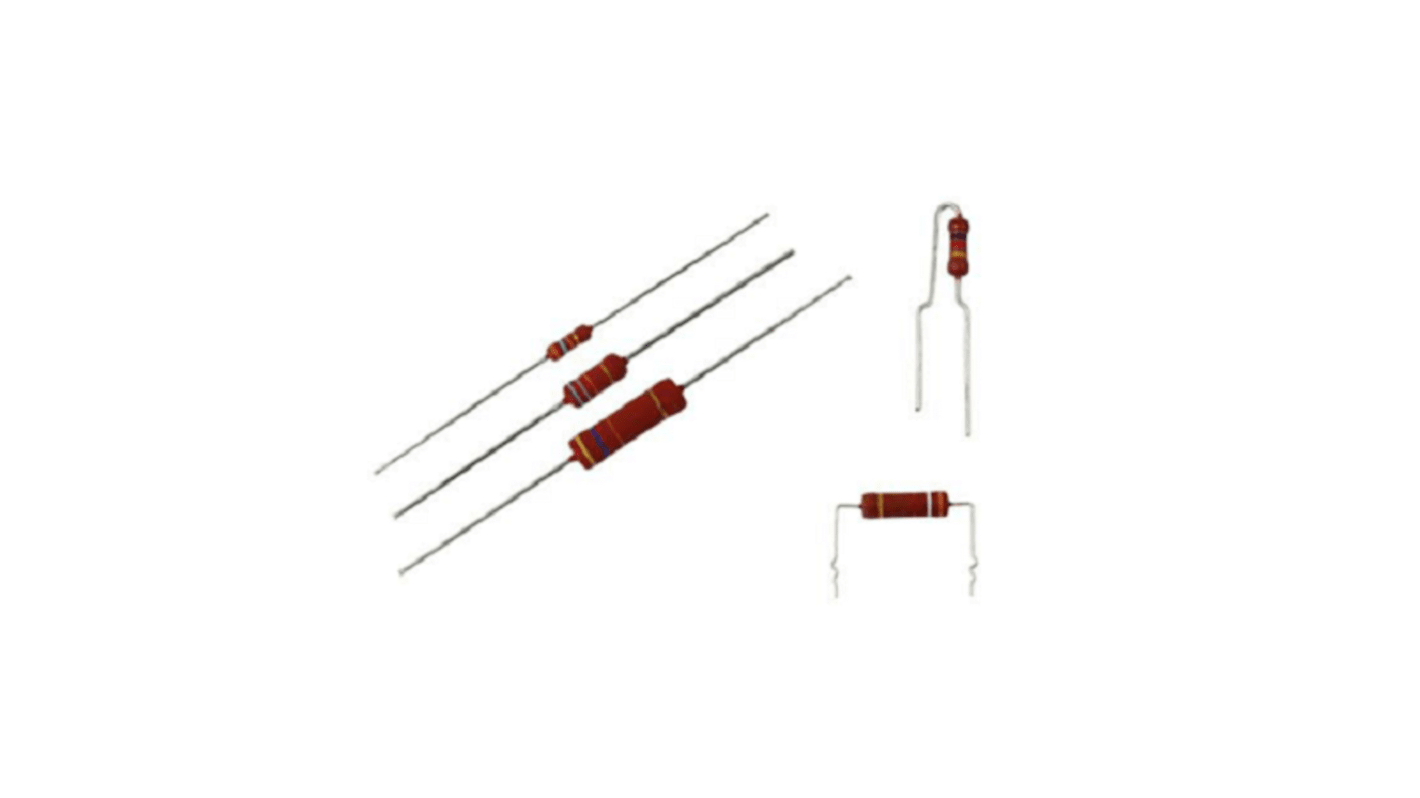

The Vishay power metal film leaded resistor has homogeneous film of metal alloy which is deposited on a high grade ceramic body. After a helical groove has been cut in the resistive layer, tinned connecting wires of electrolytic copper or copper-clad iron are welded to the end-caps. The resistors are coated with a red, non-flammable lacquer which provides electrical, mechanical and climatic protection.

High power in small packages

Defined fusing characteristics

Technology metal film

Meets active and passive flammability requirements as defined in IEC 60115-1

AEC-Q200 qualified
