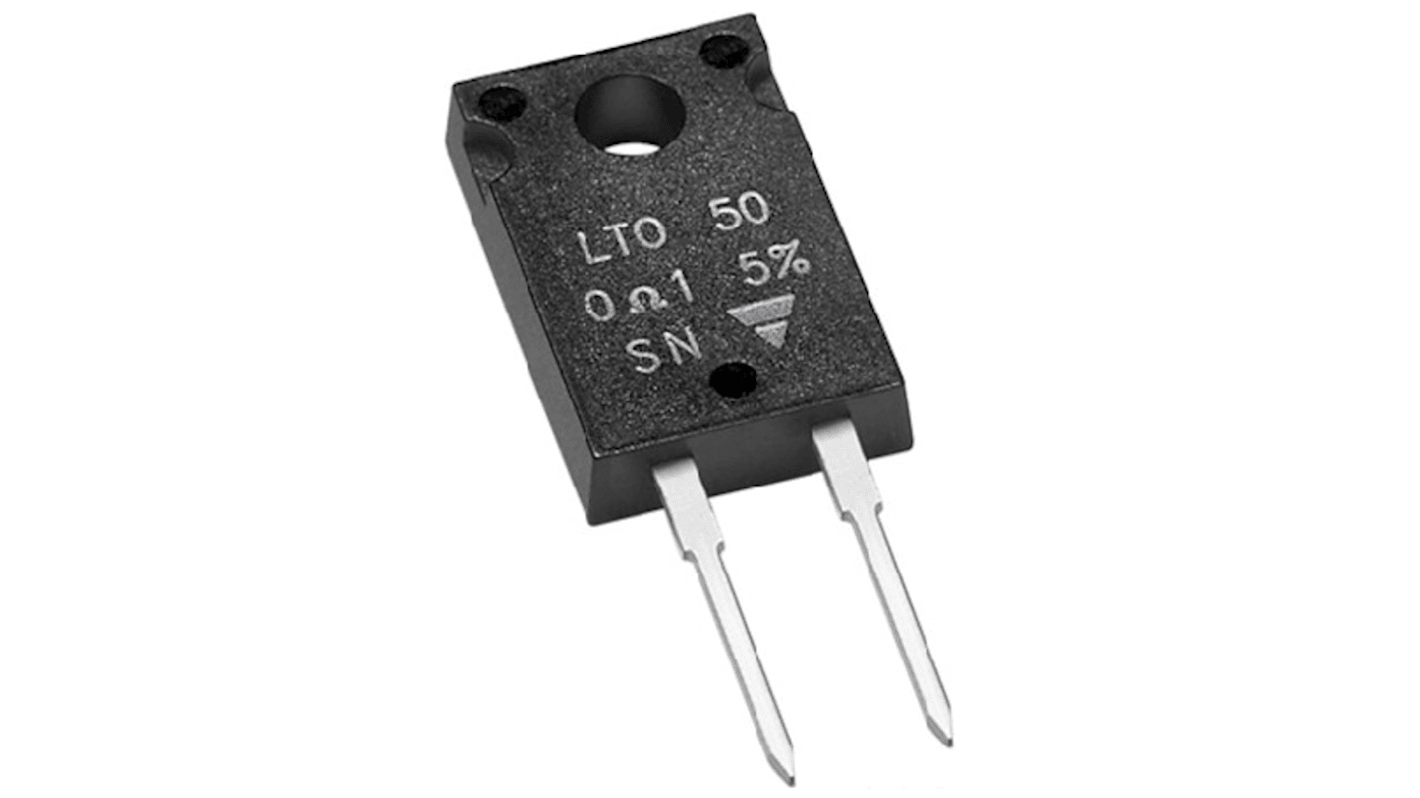

Vishay 0.01 Ω Ceramic Thick Film Resistor 50 W 5 % LTO050FR0100JTE3
- RS Stock No.:
- 238-5686
- Mfr. Part No.:
- LTO050FR0100JTE3
- Brand:
- Vishay
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
- RS Stock No.:
- 238-5686
- Mfr. Part No.:
- LTO050FR0100JTE3
- Brand:
- Vishay
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Vishay | |
| Product Type | Thick Film Resistor | |
| Resistance | 0.01Ω | |
| Resistor Type | Power | |
| Power Rating | 50W | |
| Packaging | Tube | |
| Tolerance ± | 5% | |
| Voltage | 750V | |
| Axial/Radial | Radial | |
| Technology | Ceramic | |
| Series | LTO50 | |
| Automotive Standard | No | |
| Package/Case | TO-220 | |
| Minimum Operating Temperature | -55°C | |
| Pin Count | 2 | |
| Lead Pitch Radial | 5.08mm | |
| Maximum Operating Temperature | 155°C | |
| Height | 16.2mm | |
| Standards/Approvals | RoHS | |
| Width | 3.2mm | |
| Length | 10.4mm | |
| Temperature Coefficient | ±150 ppm/°C | |
| Lead Diameter | 0.6mm | |
| Select all | ||
|---|---|---|
Brand Vishay | ||
Product Type Thick Film Resistor | ||
Resistance 0.01Ω | ||
Resistor Type Power | ||
Power Rating 50W | ||
Packaging Tube | ||
Tolerance ± 5% | ||
Voltage 750V | ||
Axial/Radial Radial | ||
Technology Ceramic | ||
Series LTO50 | ||
Automotive Standard No | ||
Package/Case TO-220 | ||
Minimum Operating Temperature -55°C | ||
Pin Count 2 | ||
Lead Pitch Radial 5.08mm | ||
Maximum Operating Temperature 155°C | ||
Height 16.2mm | ||
Standards/Approvals RoHS | ||
Width 3.2mm | ||
Length 10.4mm | ||
Temperature Coefficient ±150 ppm/°C | ||
Lead Diameter 0.6mm | ||
- COO (Country of Origin):
- CZ
The Vishay 50 W power resistor with thick film technology, the LTO series are the extension of RTO types. We used the direct ceramic mounting design (no metal tab) of our RCH power resistors applied to semiconductor packages. Insulation resistance is greater than 10^4 MΩ. Temperature range for this resistor is -55 °C to +150 °C. Ohmic value for the LTO 050FR0100JTE3 is 0.010 ohm. This Power resistor can be applied in applications like power conversion, high-speed switching, RF applications, current sensing etc.
50 W at 25°C case temperature heatsink mounted
Direct mounting ceramic on heatsink
Broad resistance range is 0.010 Ω to 550 kΩ
It is Non inductive and available in TO-220 package which is compact and easy to mount
