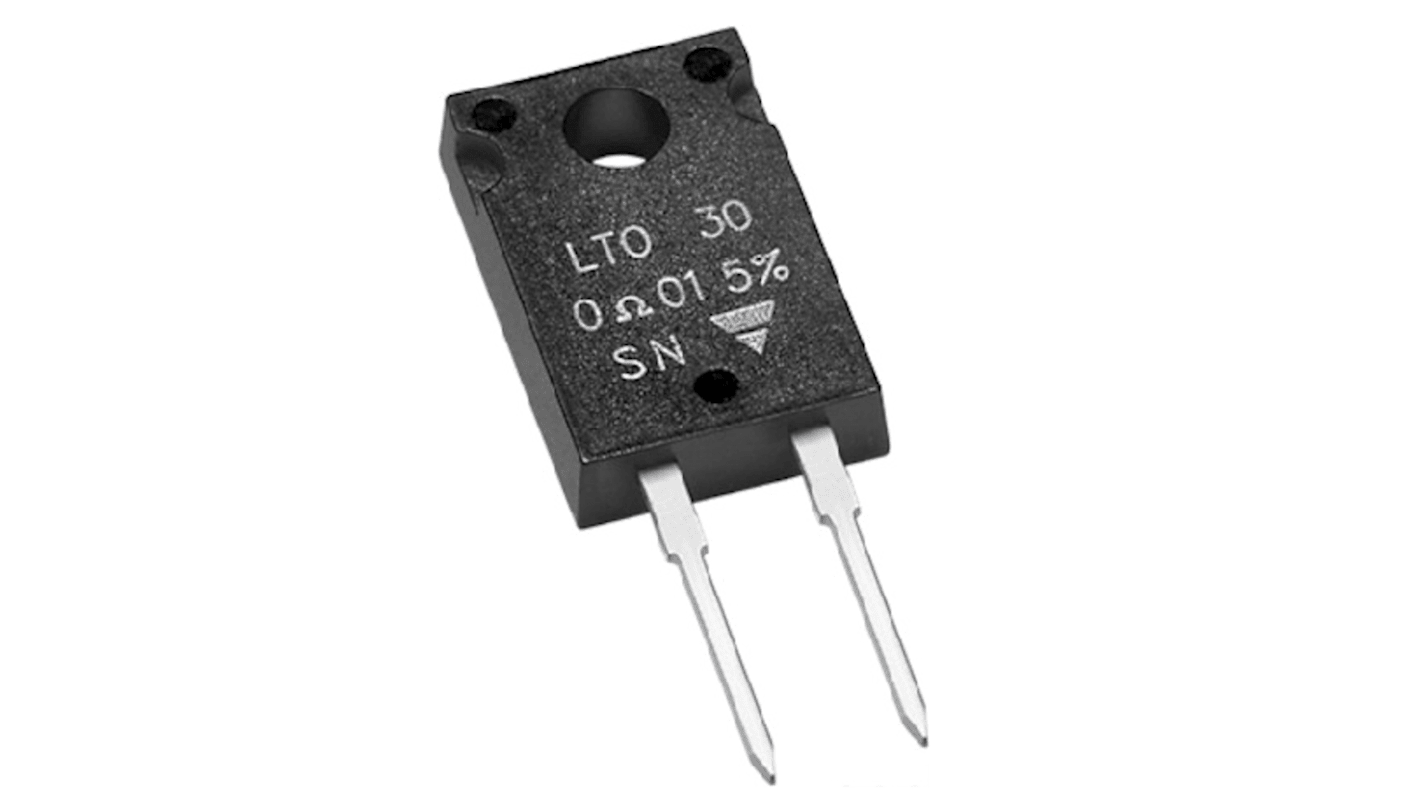

Vishay 0.02 Ω Ceramic Thick Film Resistor 30 W 5 %
- RS Stock No.:
- 238-5682
- Mfr. Part No.:
- LTO030FR0150JTE3
- Brand:
- Vishay
Bulk discount available
Subtotal (1 unit)*
£5.69
(exc. VAT)
£6.83
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 50 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £5.69 |
| 5 - 9 | £5.58 |
| 10 - 24 | £5.41 |
| 25 - 49 | £5.12 |
| 50 + | £4.85 |
*price indicative
- RS Stock No.:
- 238-5682
- Mfr. Part No.:
- LTO030FR0150JTE3
- Brand:
- Vishay
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Vishay | |
| Product Type | Thick Film Resistor | |
| Resistance | 0.02Ω | |
| Power Rating | 30W | |
| Resistor Type | Power | |
| Tolerance ± | 5% | |
| Packaging | Tube | |
| Voltage | 750V | |
| Axial/Radial | Radial | |
| Technology | Ceramic | |
| Series | LTO30 | |
| Automotive Standard | No | |
| Package/Case | TO-220 | |
| Pin Count | 2 | |
| Minimum Operating Temperature | -55°C | |
| Lead Pitch Radial | 5.08mm | |
| Maximum Operating Temperature | 155°C | |
| Width | 3.2mm | |
| Length | 10.4mm | |
| Standards/Approvals | RoHS | |
| Height | 16.2mm | |
| Temperature Coefficient | ±150 ppm/°C | |
| Lead Diameter | 0.6mm | |
| Select all | ||
|---|---|---|
Brand Vishay | ||
Product Type Thick Film Resistor | ||
Resistance 0.02Ω | ||
Power Rating 30W | ||
Resistor Type Power | ||
Tolerance ± 5% | ||
Packaging Tube | ||
Voltage 750V | ||
Axial/Radial Radial | ||
Technology Ceramic | ||
Series LTO30 | ||
Automotive Standard No | ||
Package/Case TO-220 | ||
Pin Count 2 | ||
Minimum Operating Temperature -55°C | ||
Lead Pitch Radial 5.08mm | ||
Maximum Operating Temperature 155°C | ||
Width 3.2mm | ||
Length 10.4mm | ||
Standards/Approvals RoHS | ||
Height 16.2mm | ||
Temperature Coefficient ±150 ppm/°C | ||
Lead Diameter 0.6mm | ||
- COO (Country of Origin):
- CZ
The Vishay 30 W power resistor with thick film technology, the LTO series are the extension of RTO types. We used the direct ceramic mounting design (no metal tab) of our RCH power resistors applied to semiconductor packages. Insulation resistance is greater than 10^4 MΩ. Temperature range for this resistor is -55 °C to +150 °C. Ohmic value for the LTO 030FR0150JTE3 is 0.015 ohm. This Power resistor can be applied in applications like power conversion, high-speed switching, RF applications, current sensing etc.
30 W at 25°C case temperature heatsink mounted
Direct mounting ceramic on heatsink
Broad resistance range is 0.010 Ω to 550 kΩ
It is Non inductive and available in TO-220 package which is compact and easy to mount
