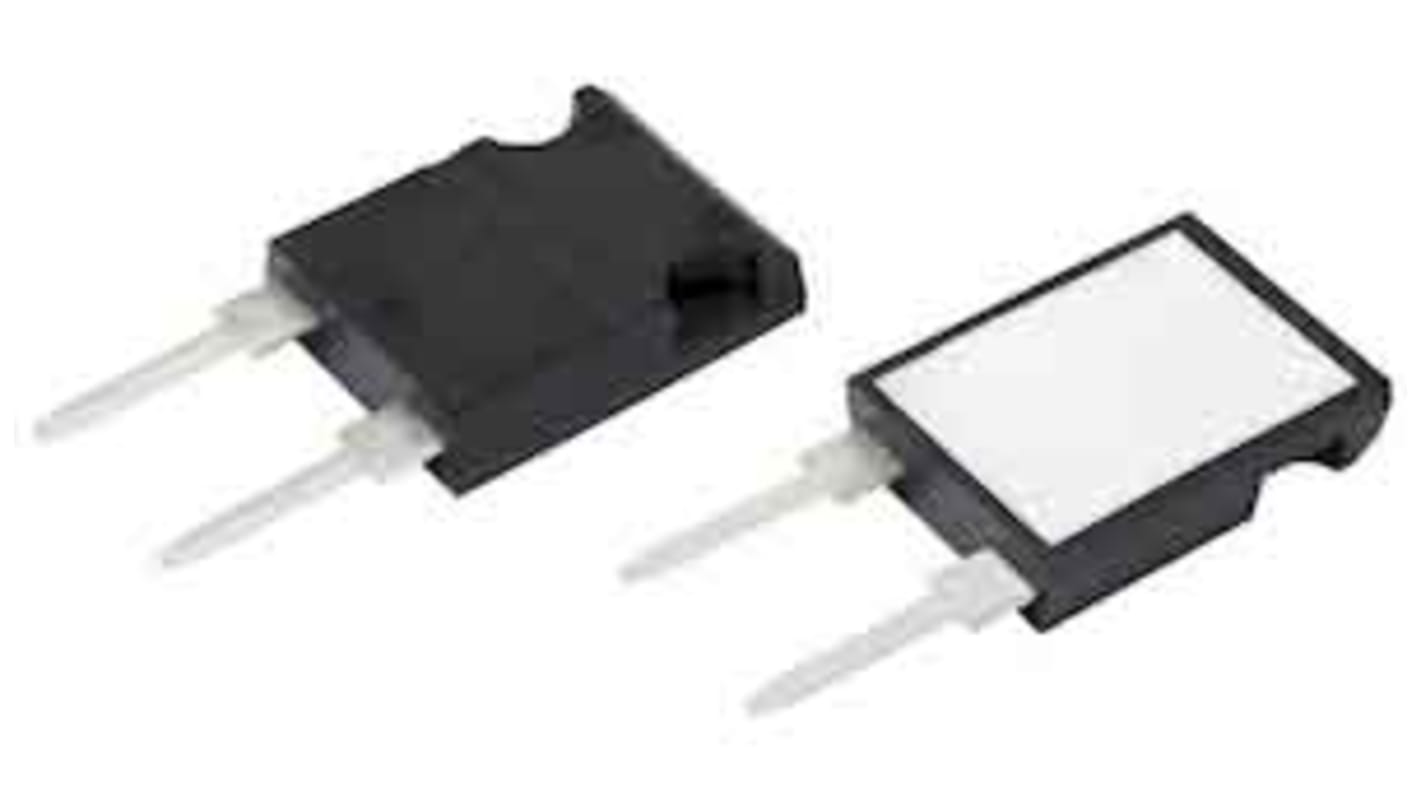

Vishay 47Ω Thick Film Resistor 150W ±5% LTO150F47R00JTE3
- RS Stock No.:
- 180-9073
- Mfr. Part No.:
- LTO150F47R00JTE3
- Brand:
- Vishay
Available to back order for despatch 07/06/2024
Added
Price Each (In a Tube of 30)
£8.06
(exc. VAT)
£9.67
(inc. VAT)
| Units | Per unit | Per Tube* |
| 30 - 30 | £8.06 | £241.80 |
| 60 + | £7.818 | £234.54 |
| *price indicative | ||
- RS Stock No.:
- 180-9073
- Mfr. Part No.:
- LTO150F47R00JTE3
- Brand:
- Vishay
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- CZ
Product Details
LTO150 are the extension of LTO series. The component is used in direct contact with heatsink. Fixation done by clip.
175 W at 45 °C case temperature heatsink mounted
Direct mounting ceramic on heatsink
Broad resistance range: 0.03 to 1.3 M
Non inductive
TO-247 package: compact and easy to mount
Designed for clip mounting
Direct mounting ceramic on heatsink
Broad resistance range: 0.03 to 1.3 M
Non inductive
TO-247 package: compact and easy to mount
Designed for clip mounting
Specifications
Attribute | Value |
|---|---|
| Resistance | 47Ω |
| Power Rating | 150W |
| Composition | Ceramic |
| Tolerance | ±5% |
| Axial/Radial | Radial |
| Technology | Thick Film |
| Series | LTO 150 |
| Automotive Standard | AEC-Q200 |
| Package/Case | TO-247 |
| Maximum Operating Temperature | +175°C |
| Temperature Coefficient | ±200ppm/°C |
| Minimum Operating Temperature | -55°C |
| Lead Pitch | 10.16mm |
