Arcol 1.2Ω Fixed Resistor 100W ±5% AP101 1R2 J

View all Through Hole Resistors
Bulk discount available

Subtotal (1 tray of 50 units)*

£325.95

(exc. VAT)

£391.15

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • Plus 100 unit(s) shipping from 27 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Tray*
50 - 200£6.519£325.95
250 +£6.062£303.10

*price indicative

RS Stock No.:
162-1098
Mfr. Part No.:
AP101 1R2 J
Brand:
Arcol
Find similar products by selecting one or more attributes.
Select all

Brand

Arcol

Resistance

1.2Ω

Power Rating

100W

Tolerance

±5%

Series

AP101

Package/Case

TO-247

Maximum Operating Temperature

+175°C

Temperature Coefficient

±300ppm/°C

Lead Pitch

10.42mm

Minimum Operating Temperature

-65°C

COO (Country of Origin):
CN

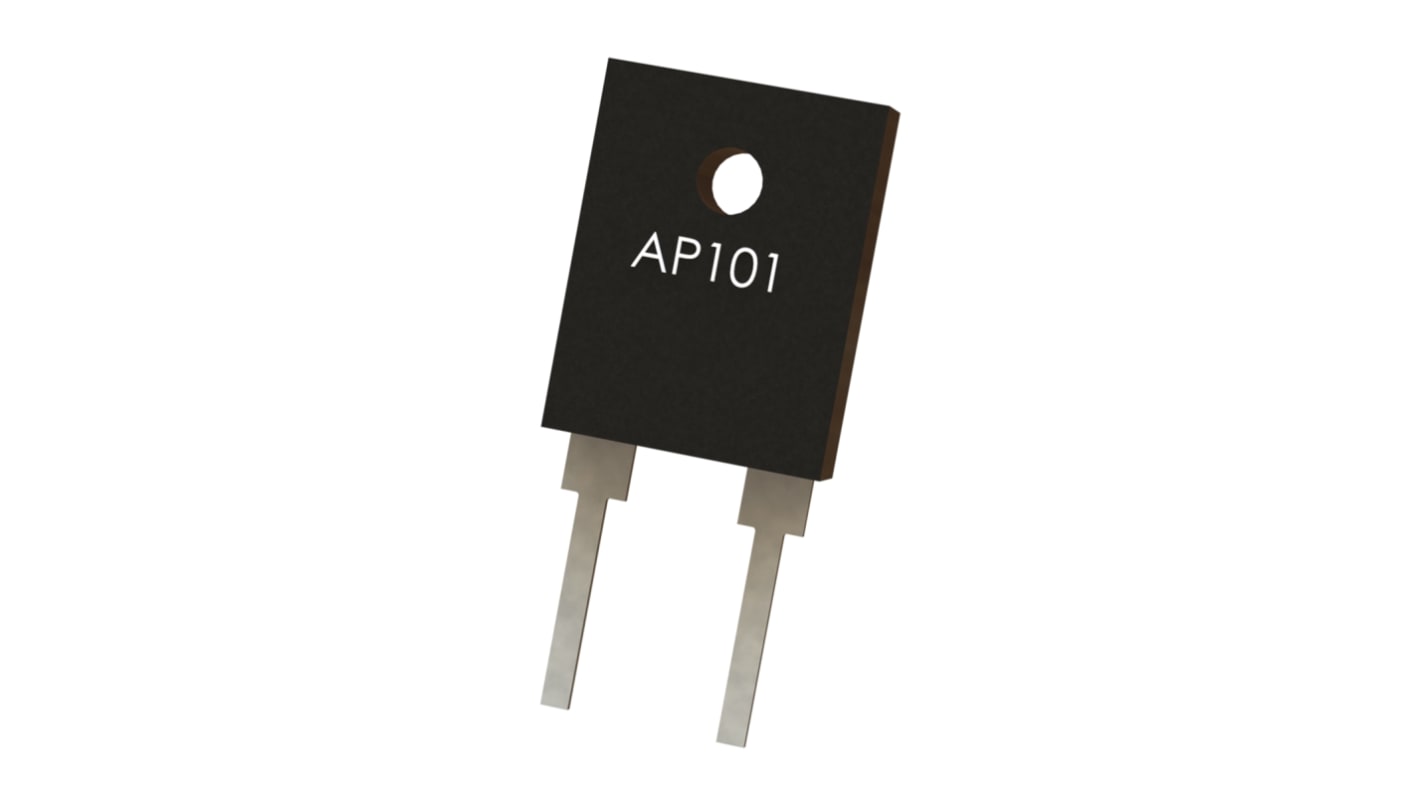

AP101 Series 100W TO-247 High Power Resistors


The AP101 series non-inductive TO-247 style thick film Power Resistors capable of dissipating 100 watts. The AP101 series benefits from new material technologies and an extremely low thermal resistance.

TO-247 style power package capable of dissipating 100 watts
Extremely low thermal resistance at 0.9°C/W resistor hotspot to metal tab
Thick Film design
Single screw mounting to heat sink
Moulded case for protection
Electrically isolated case
Non-Inductive design
Recommended: The use of thermal grease between metal tab and heat sink
