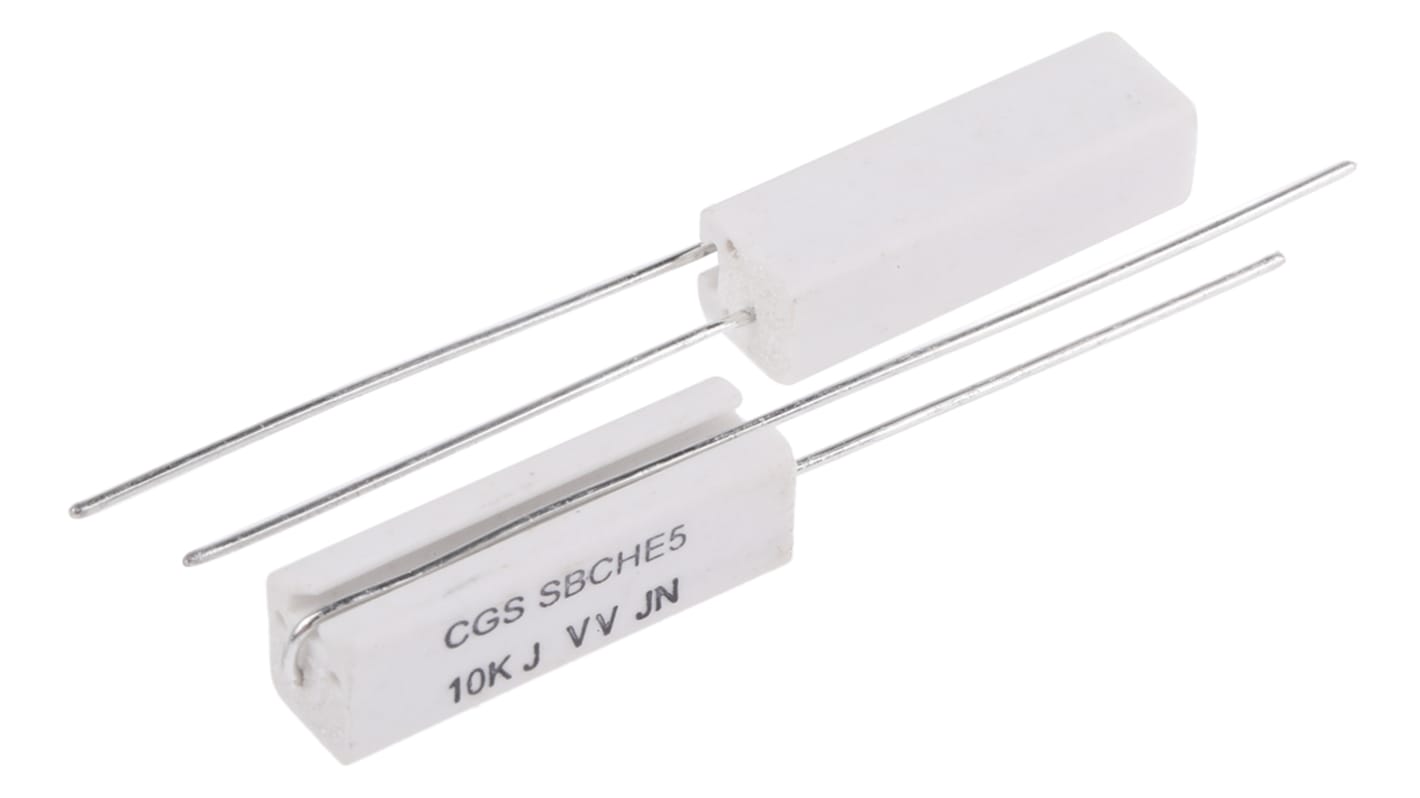

TE Connectivity 10 kΩ Wirewound Resistor 5 W 5 %
- RS Stock No.:
- 161-4365
- Mfr. Part No.:
- SBCHE510KJ
- Brand:
- TE Connectivity
Bulk discount available
View bulk pricing optionsSubtotal (1 box of 100 units)*
£62.90
(exc. VAT)
£75.50
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 400 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Box* |
|---|---|---|
| 100 - 400 | £0.629 | £62.90 |
| 500 - 900 | £0.441 | £44.10 |
| 1000 + | £0.409 | £40.90 |
*price indicative
- RS Stock No.:
- 161-4365
- Mfr. Part No.:
- SBCHE510KJ
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Resistance | 10kΩ | |
| Product Type | Resistor | |
| Resistor Type | Power | |
| Power Rating | 5W | |
| Packaging | Box | |
| Tolerance ± | 5% | |
| Axial/Radial | Axial | |
| Technology | Wirewound | |
| Series | SBCHE | |
| Automotive Standard | No | |
| Minimum Operating Temperature | -55°C | |
| Pin Count | 2 | |
| Maximum Operating Temperature | 350°C | |
| Width | 7mm | |
| Standards/Approvals | No | |
| Length | 25mm | |
| Height | 8mm | |
| Temperature Coefficient | +200 ppm/°C | |
| Lead Diameter | 0.8mm | |
| Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Resistance 10kΩ | ||
Product Type Resistor | ||
Resistor Type Power | ||
Power Rating 5W | ||
Packaging Box | ||
Tolerance ± 5% | ||
Axial/Radial Axial | ||
Technology Wirewound | ||
Series SBCHE | ||
Automotive Standard No | ||
Minimum Operating Temperature -55°C | ||
Pin Count 2 | ||
Maximum Operating Temperature 350°C | ||
Width 7mm | ||
Standards/Approvals No | ||
Length 25mm | ||
Height 8mm | ||
Temperature Coefficient +200 ppm/°C | ||
Lead Diameter 0.8mm | ||
SBCHE Series, Axial 4W/5W
Flame-proof wirewound resistors with superior electrical and mechanical characteristics
Resistance wire wound on a fibreglass core and protected by a ceramic body Combines good thermal characteristics with high insulation resistance, and gives good physical protection
Lead length allows vertical or horizontal mounting
Ceramic Wirewound, Axial - 1W to 17W
